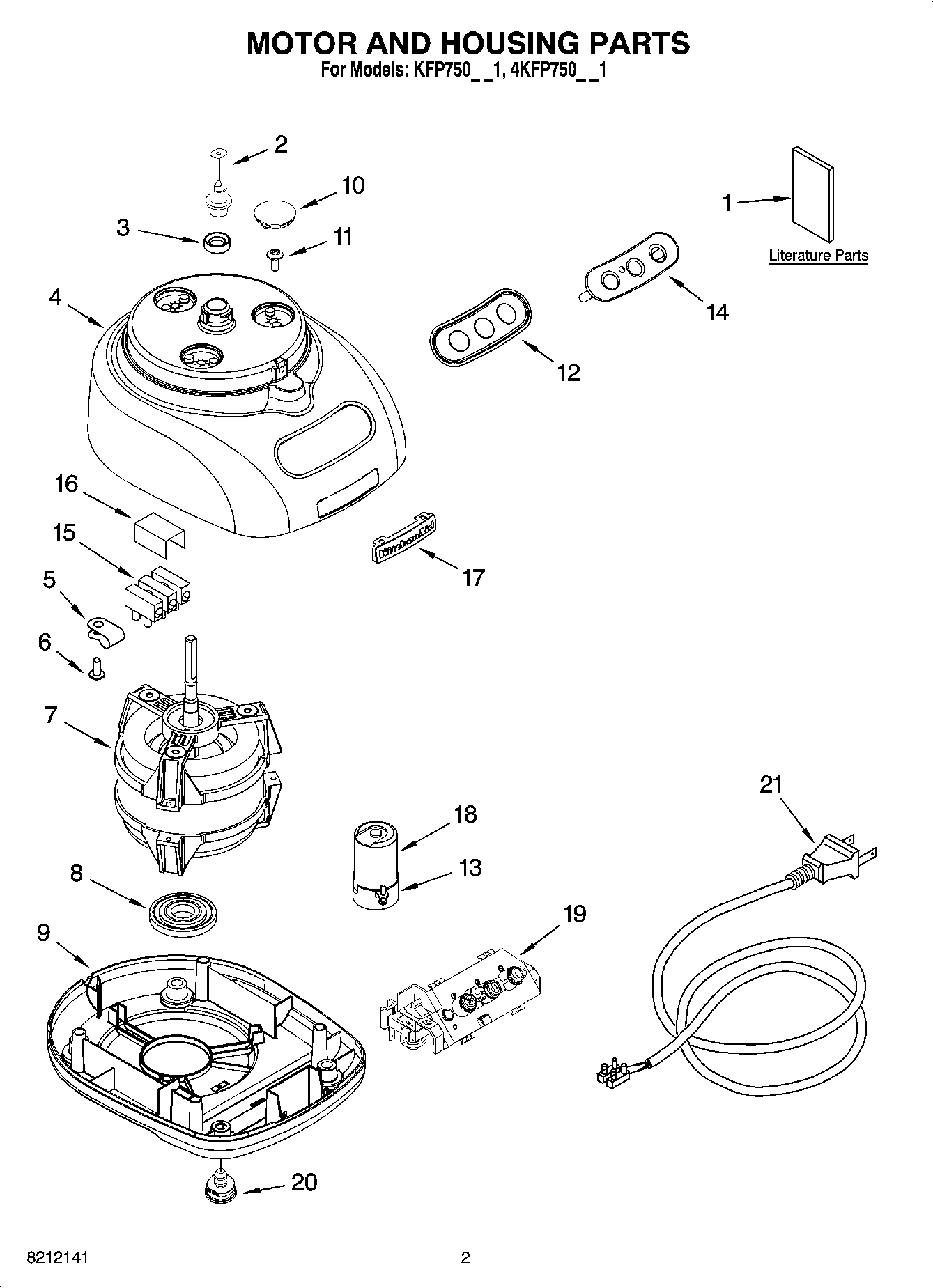

4KFP750BU1 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Use & Care Guide
1	Repair Parts List
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (White)
4	Housing, Motor (Cobalt Blue)
4	Housing, Motor (Onyx Black)
4	Housing, Motor (Pink)
4	Housing, Motor (Blue Willow)
4	Housing, Motor (Gloss Cinnamon)
4	Housing, Motor (Empire Red)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor, Sheet Metal
8	Grommet, Motor
9	Base, Housing (Blue Willow)
9	Base, Housing (Gloss Cinnamon)
9	Base, Housing (Pink)
9	Base, Housing (Onyx Black)
9	Base, Housing (Cobalt Blue)
9	Base, Housing (Empire Red)
9	Base, Housing (White)
10	Cover, Screw (Blue Willow)
10	Cover, Screw (Pink)
10	Cover, Screw (Black)
10	Cover, Screw (Blue)
10	Cover, Screw (Red)
10	Cover, Screw (Gloss Cinnamon)
10	Cover, Screw (White)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	Overlay, Switch Assembly (Silver)
15	Block, Terminal
16	Cover, Terminal
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot (White)
20	Foot (Black)
21	W10451329 Whirlpool Power Cord
