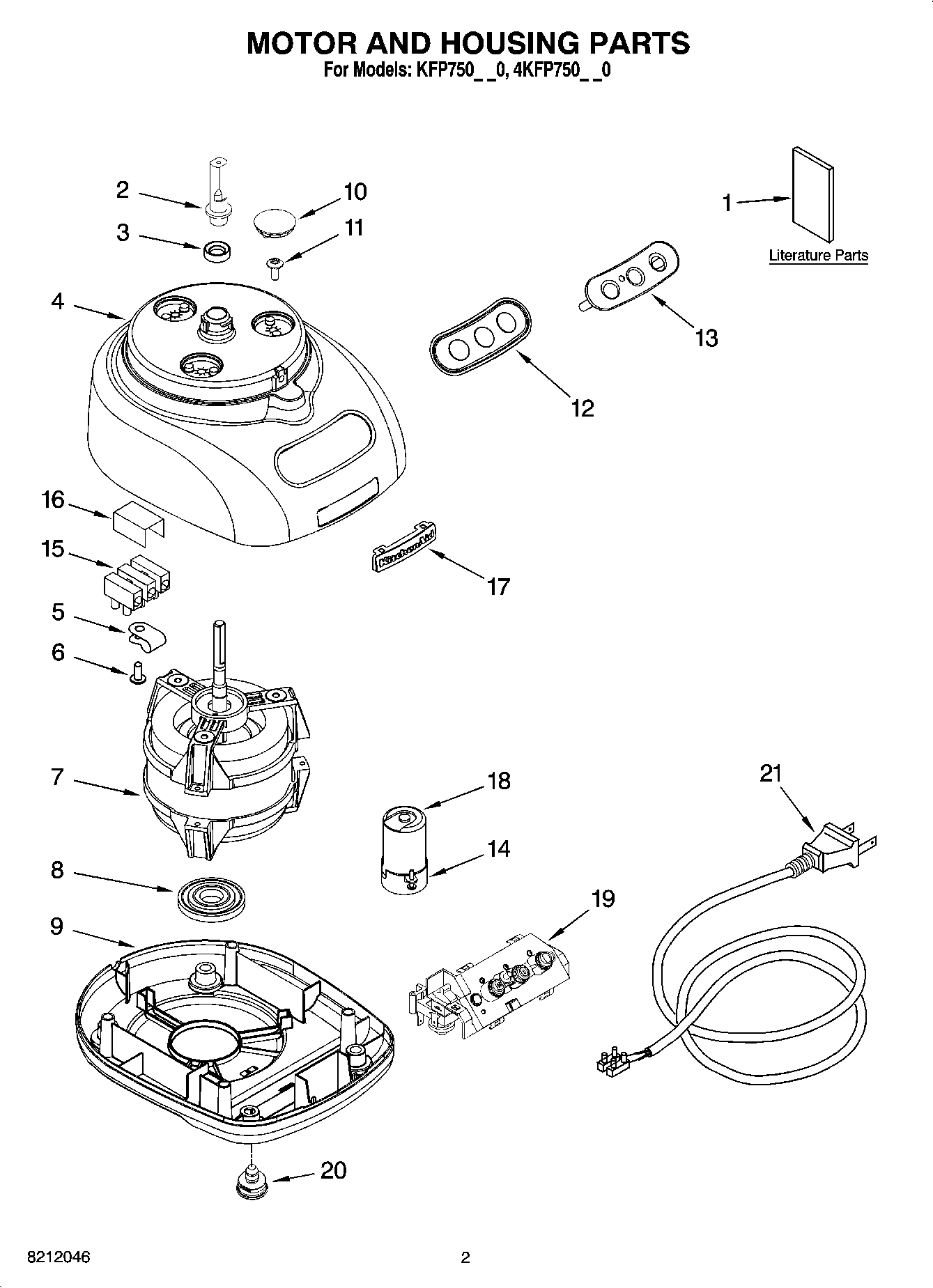

4KFP750WH0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Chrome)
4	Housing, Motor (Pink)
4	Housing, Motor (Cobalt Blue)
4	Housing, Motor (Empire Red)
4	Housing, Motor (White)
4	Housing, Motor (Onyx Black)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor, Die Cast
8	Grommet, Motor
9	Base, Housing (Pink)
9	Base, Housing (Onyx Black)
9	Base, Housing (Cobalt Blue)
9	Base, Housing (Empire Red)
9	Base, Housing (White)
10	Cover, Screw (Onyx Black)
10	Cover, Screw (White)
10	Cover, Screw (Red)
10	Cover, Screw (Blue)
10	Cover, Screw (Pink)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Overlay, Switch Assembly (Silver)
13	Overlay & Cover (Black)
14	Clip, Capacitor
15	Block, Terminal
16	Cover, Terminal
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot (White)
20	Foot (Black)
21	Cord, Power (Black for Chrome Model)
21	W10451329 Whirlpool Power Cord
