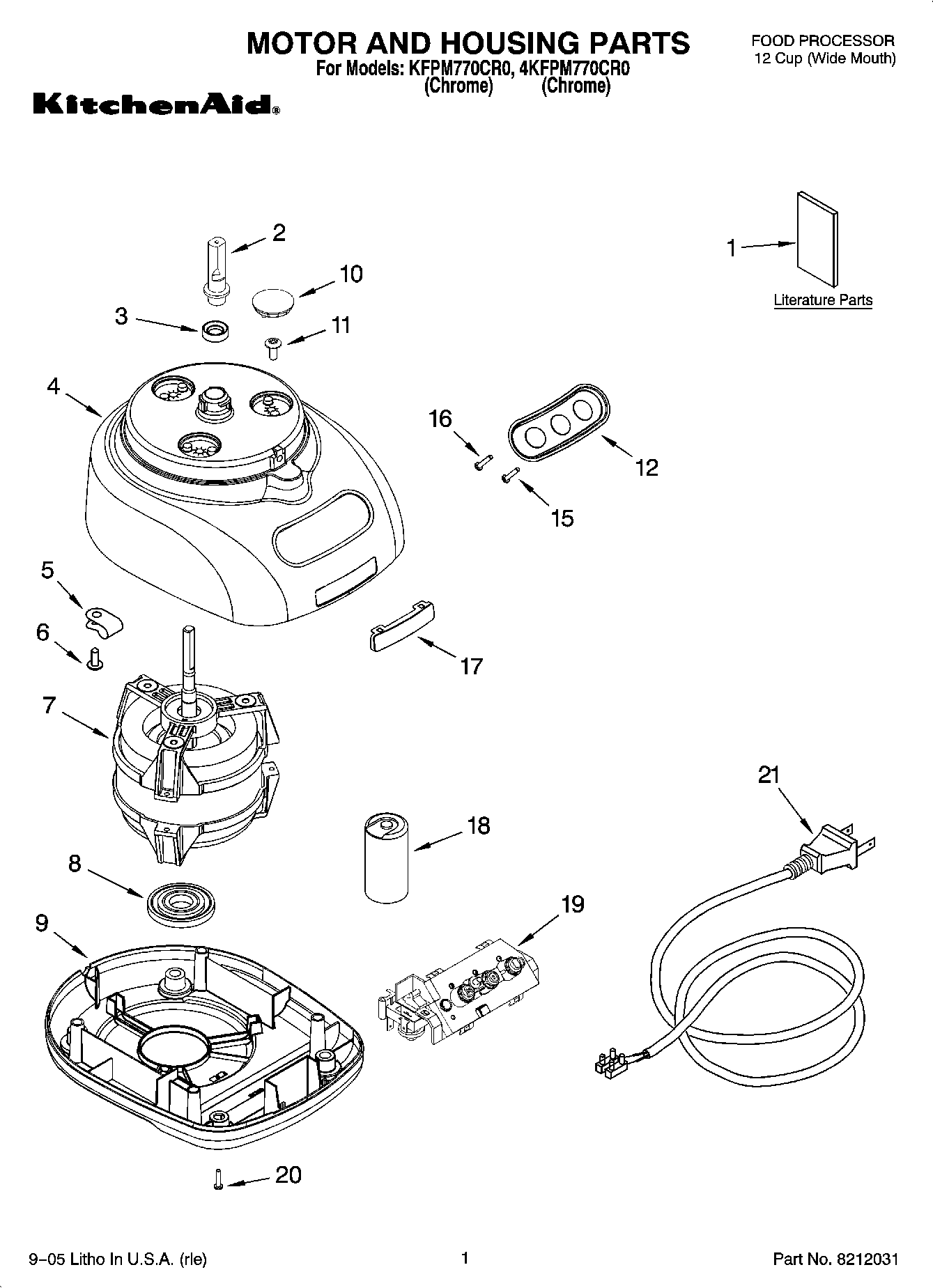

4KFPM770CR0 01 – MOTOR AND HOUSING PARTS

Products

PositionProduct
1Use & Care Guide
2Sleeve, Motor Shaft
3Seal, Oil
4Housing, Motor (Chrome)
52185825 Whirlpool Refrigerator Clamp
6Screw, Clamp
7Motor, Die Cast
8Grommet, Motor
9Base, Housing (Onyx Black)
10Cover, Screw (Onyx Black)
11Screw, Motor Locking
12Overlay & Cover (Black)
15Screw, Torx
16Screw, Switch Panel
17Nameplate
18Capacitor
19Relay & Switch Assembly
20Foot (Black)
21Cord, Power (Black for Chrome Model)
