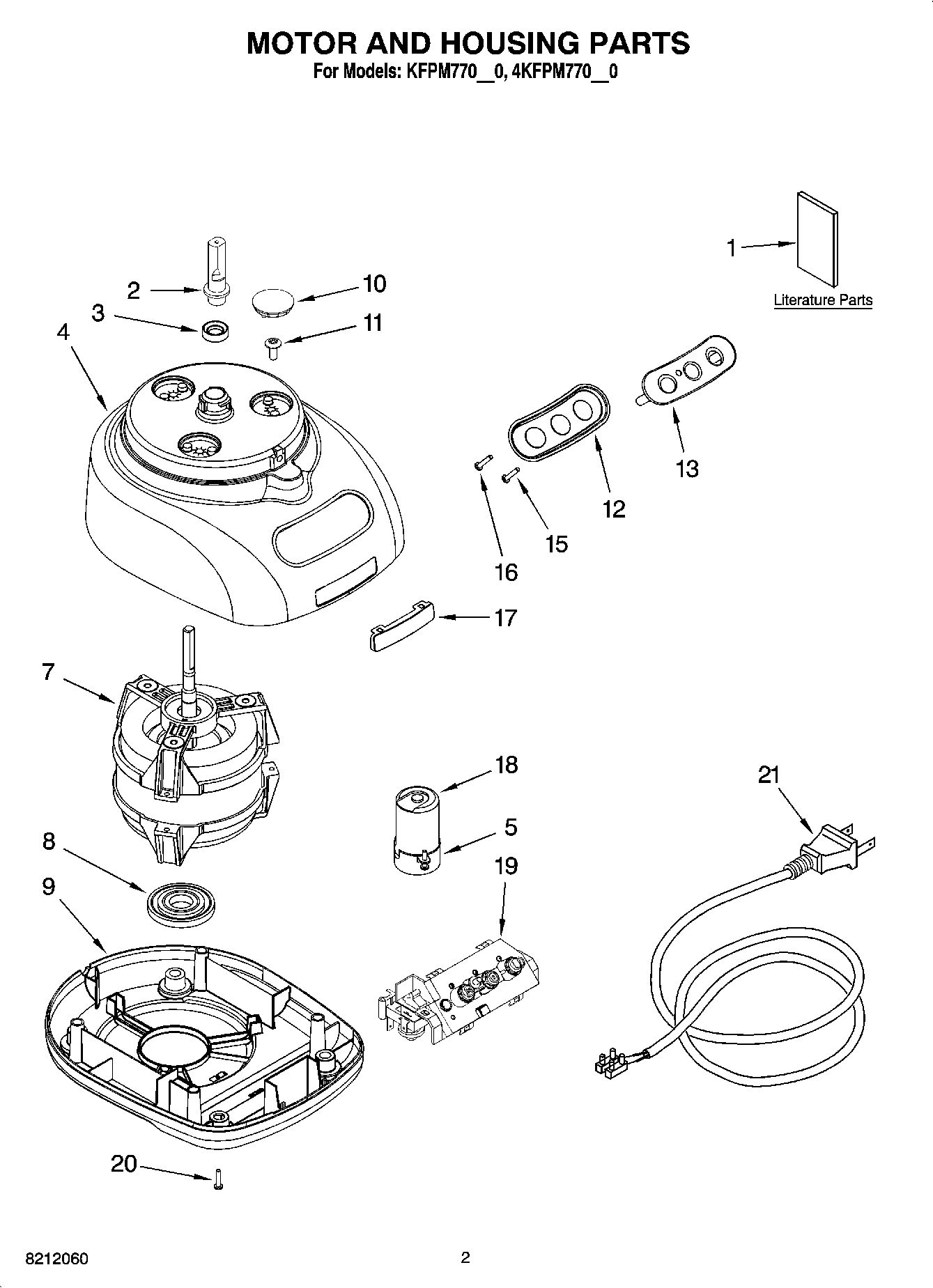

4KFPM770NK0 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Nickel)
5	Clip, Capacitor
7	Motor, Die Cast
8	Grommet, Motor
9	Base, Housing (Onyx Black)
10	Cover, Screw (Onyx Black)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Overlay & Cover (Black)
15	Screw, Torx
16	Screw, Switch Panel
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot (Black)
21	Cord, Power (Black for Chrome Model)
