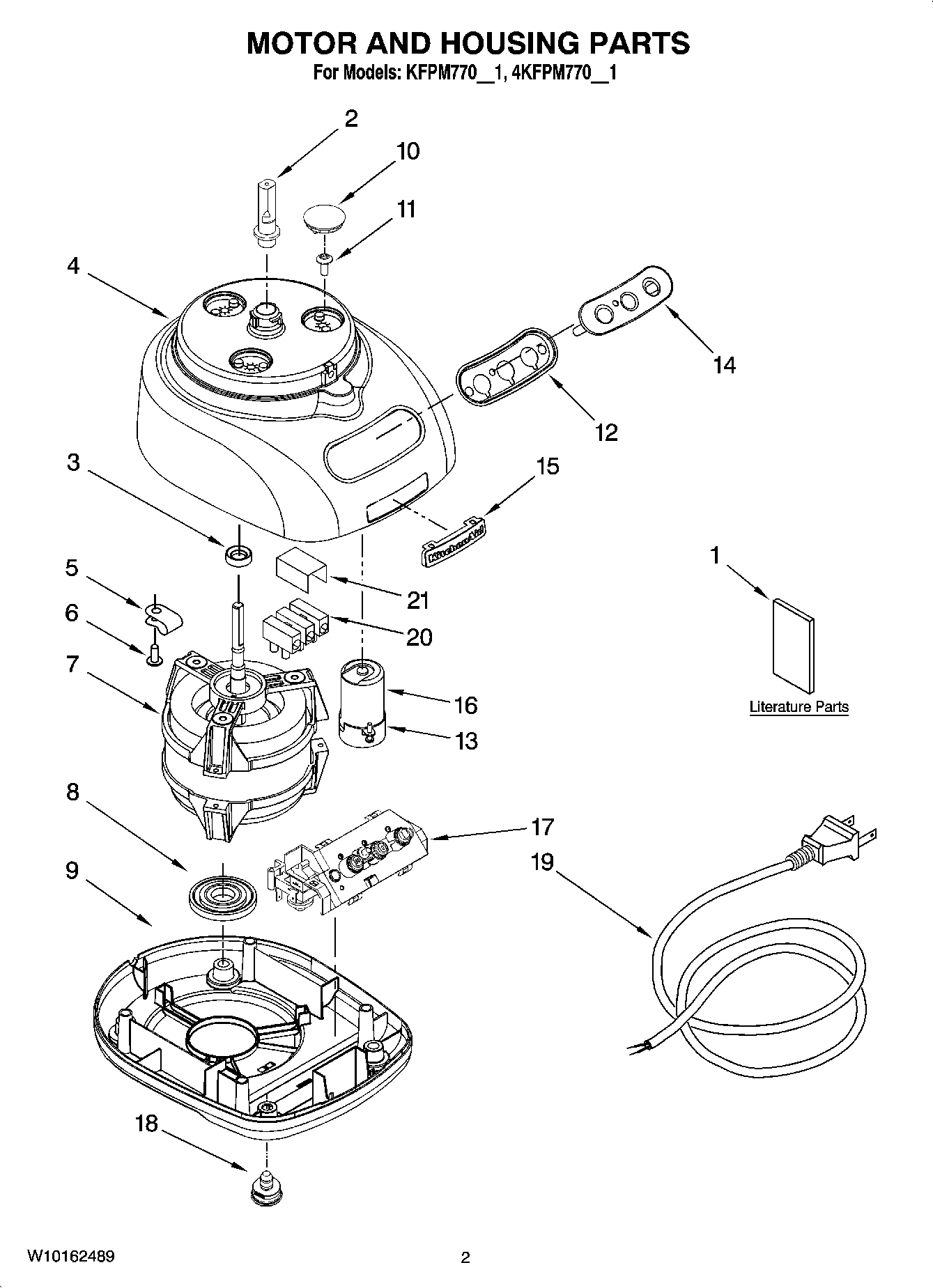

4KFPM770NK1 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Nickel)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	Base, Housing (Onyx Black)
10	Cover, Screw (Onyx Black)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	Overlay & Cover (Black)
15	Nameplate
16	Capacitor
17	Relay & Switch Assembly
18	Foot (Black)
19	Cord, Power (Black for Chrome Model)
20	Block, Terminal
21	Cover, Terminal
