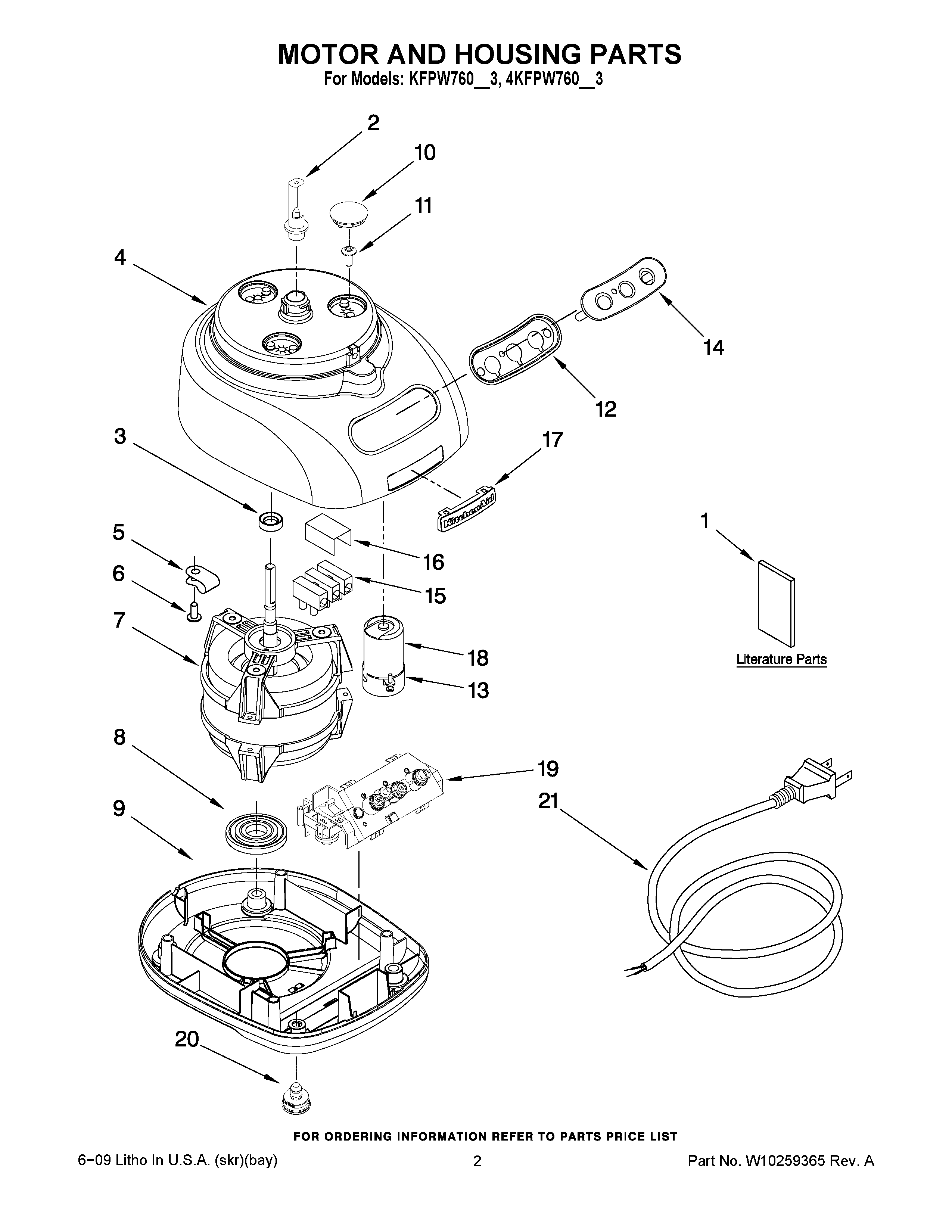

4KFPW760OB3 01 – MOTOR AND HOUSING PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1Use & Care Guide
2Sleeve, Motor Shaft
3Seal, Oil
4Housing, Motor (Onyx Black)
4Housing, Motor (Empire Red)
4Housing, Motor (White)
52185825 Whirlpool Refrigerator Clamp
6Screw, Clamp
7Motor
8Grommet, Motor
9Base, Housing (Onyx Black)
9Base, Housing (White)
9Base, Housing (Empire Red)
10Cover, Screw (Black)
10Cover, Screw (Red)
10Cover, Screw (White)
11Screw, Motor Locking
12Bezel, Switch Panel
13Clip, Capacitor
14Overlay, Switch Assembly (Silver)
15Block, Terminal
16Cover, Terminal
17Nameplate
18Capacitor
19Relay & Switch Assembly
20Foot (Black)
20Foot (White)
21W10451329 Whirlpool Power Cord
