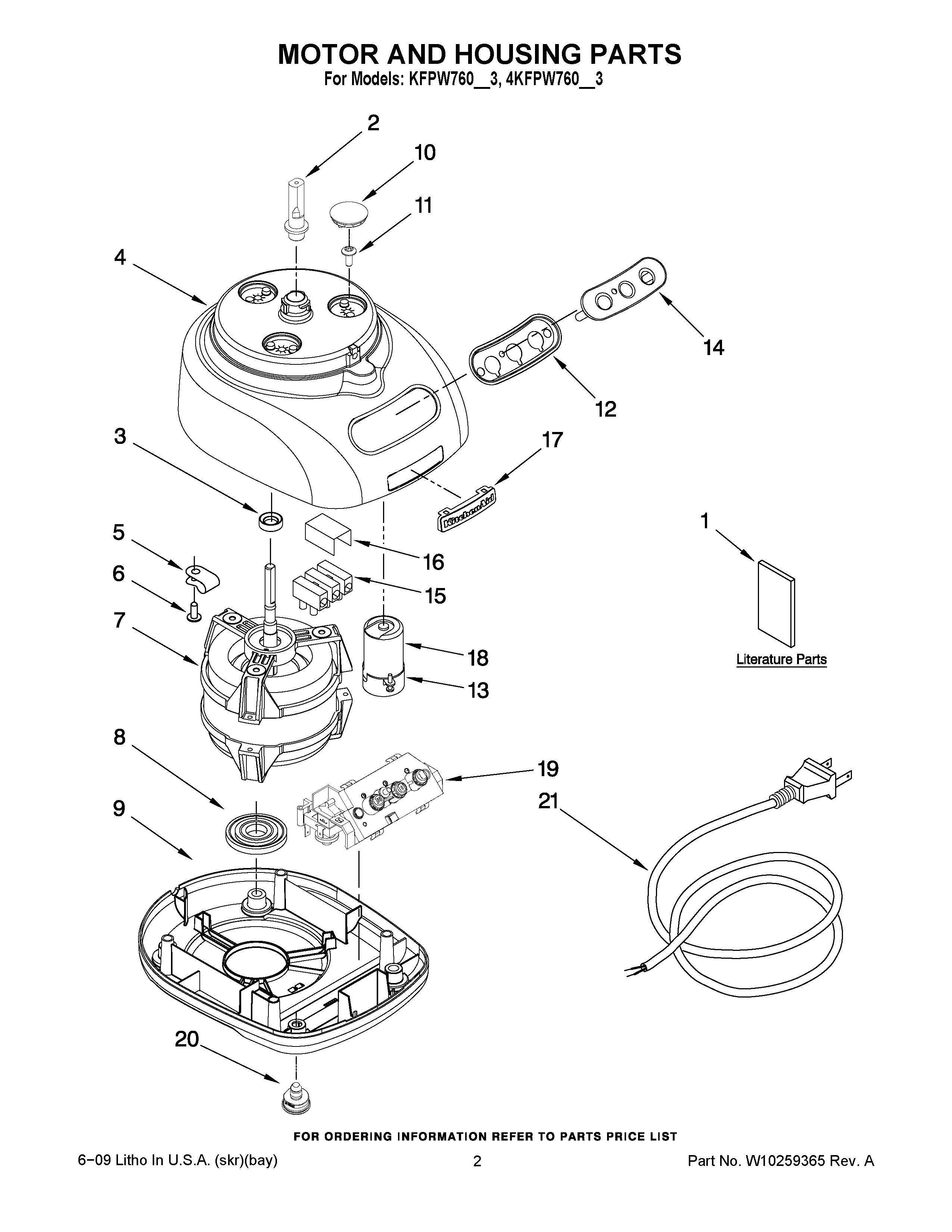

4KFPW760WH3 01 – MOTOR AND HOUSING PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	Use & Care Guide
2	Sleeve, Motor Shaft
3	Seal, Oil
4	Housing, Motor (Onyx Black)
4	Housing, Motor (Empire Red)
4	Housing, Motor (White)
5	2185825 Whirlpool Refrigerator Clamp
6	Screw, Clamp
7	Motor
8	Grommet, Motor
9	Base, Housing (Onyx Black)
9	Base, Housing (White)
9	Base, Housing (Empire Red)
10	Cover, Screw (Black)
10	Cover, Screw (Red)
10	Cover, Screw (White)
11	Screw, Motor Locking
12	Bezel, Switch Panel
13	Clip, Capacitor
14	Overlay, Switch Assembly (Silver)
15	Block, Terminal
16	Cover, Terminal
17	Nameplate
18	Capacitor
19	Relay & Switch Assembly
20	Foot (Black)
20	Foot (White)
21	W10451329 Whirlpool Power Cord
