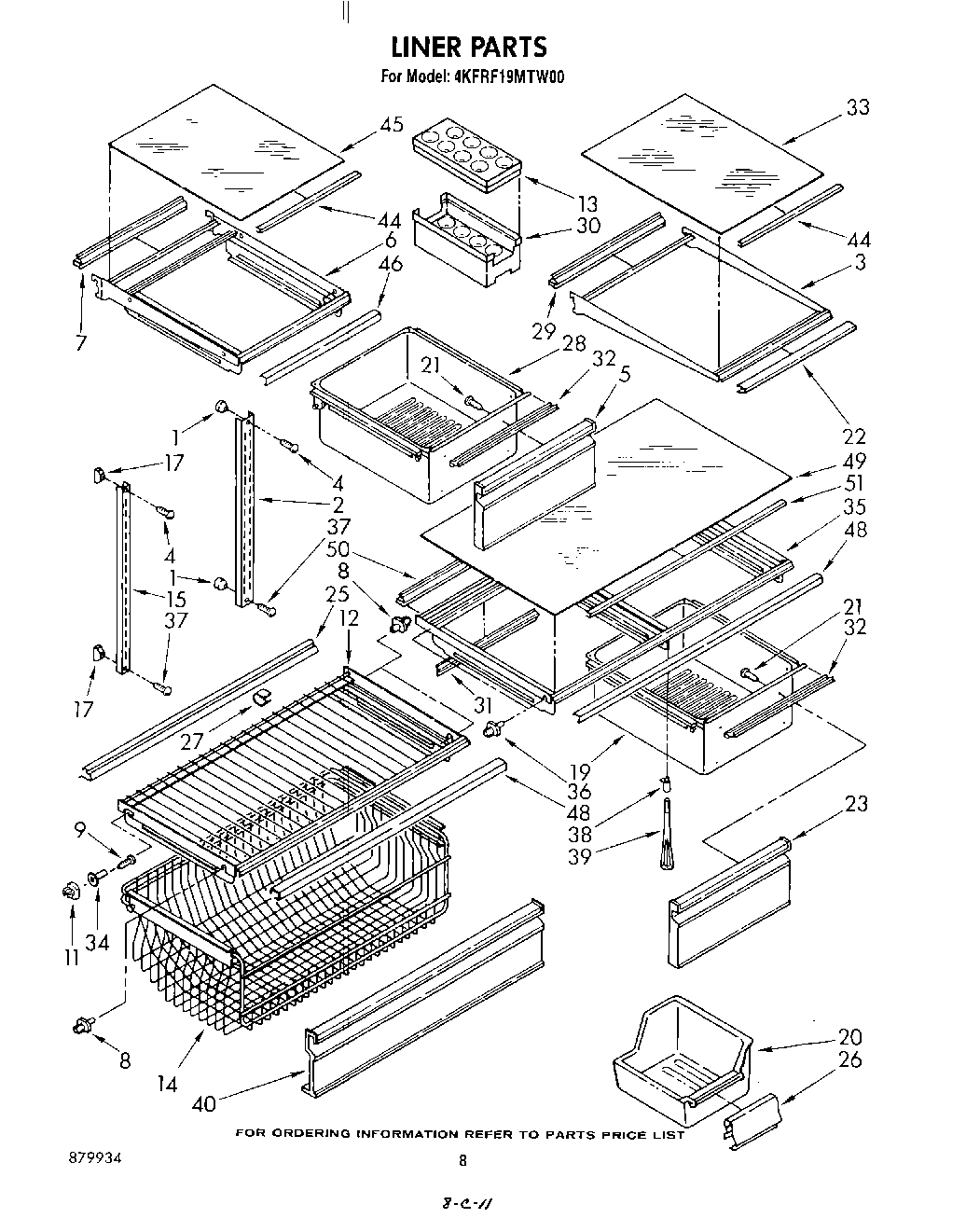

| 1 | Screw Support, Center Ladder (2) |
| 2 | Ladder (Center) |
| 3 | Shelf, Cantilever (3) |
| 4 | Screw, 8 x 1-1/4 (3) |
| 4 | Screw, (Repair) 10 x 1 1/4 |
| 5 | Front Cover, Meat Pan |
| 6 | Meat Pan, Shelf |
| 7 | Reflector, Glass Shelf |
| 8 | Stud, Shelf (3) |
| 9 | Screw, 8-15 x 1 |
| 11 | Screw Grommet |
| 12 | Shelf, Freezer |
| 13 | Egg Container, Top |
| 14 | Basket, Freezer |
| 15 | Ladder, Shelf (Side) (2) |
| 17 | 520965 Whirlpool Refrigerator Support |
| 19 | Pan Crisper (2) |
| 20 | Ice Cube Pan |
| 21 | WP488729 Whirlpool Refrigerator Door Screw |
| 21 | Screw (Repair) |
| 22 | Trim, Shelf Front |
| 23 | Front Cover, Crisper (2) |
| 25 | Reflector, Wire Shelf |
| 26 | Trim, Ice Pan |
| 27 | Clip, Reflector |
| 28 | Pan, Meat |
| 29 | Reflector, Cantilever Shelf |
| 30 | Egg Container, Bottom |
| 31 | Crisper Gasket, Rear |
| 32 | Crisper Gasket, Front |
| 33 | Glass, Cantilever Shelf (3) |
| 34 | Stud, Shelf |
| 35 | Cover, Crisper Frame |
| 36 | Stud, Shelf (4) |
| 37 | Screw, 8-32 x 1-1/4 |
| 37 | Screw (Repair) |
| 38 | Support, Cover |
| 39 | Post, Cover |
| 40 | Front, Basket |
| 44 | Shelf Gasket, Glass |
| 45 | Glass, Meat Pan |
| 46 | Trim, Frame |
| 48 | Trim, Frame |
| 49 | Glass, Crisper Cover |
| 50 | Reflector, Glass Shelf |
| 51 | Shelf Gasket, Glass |
