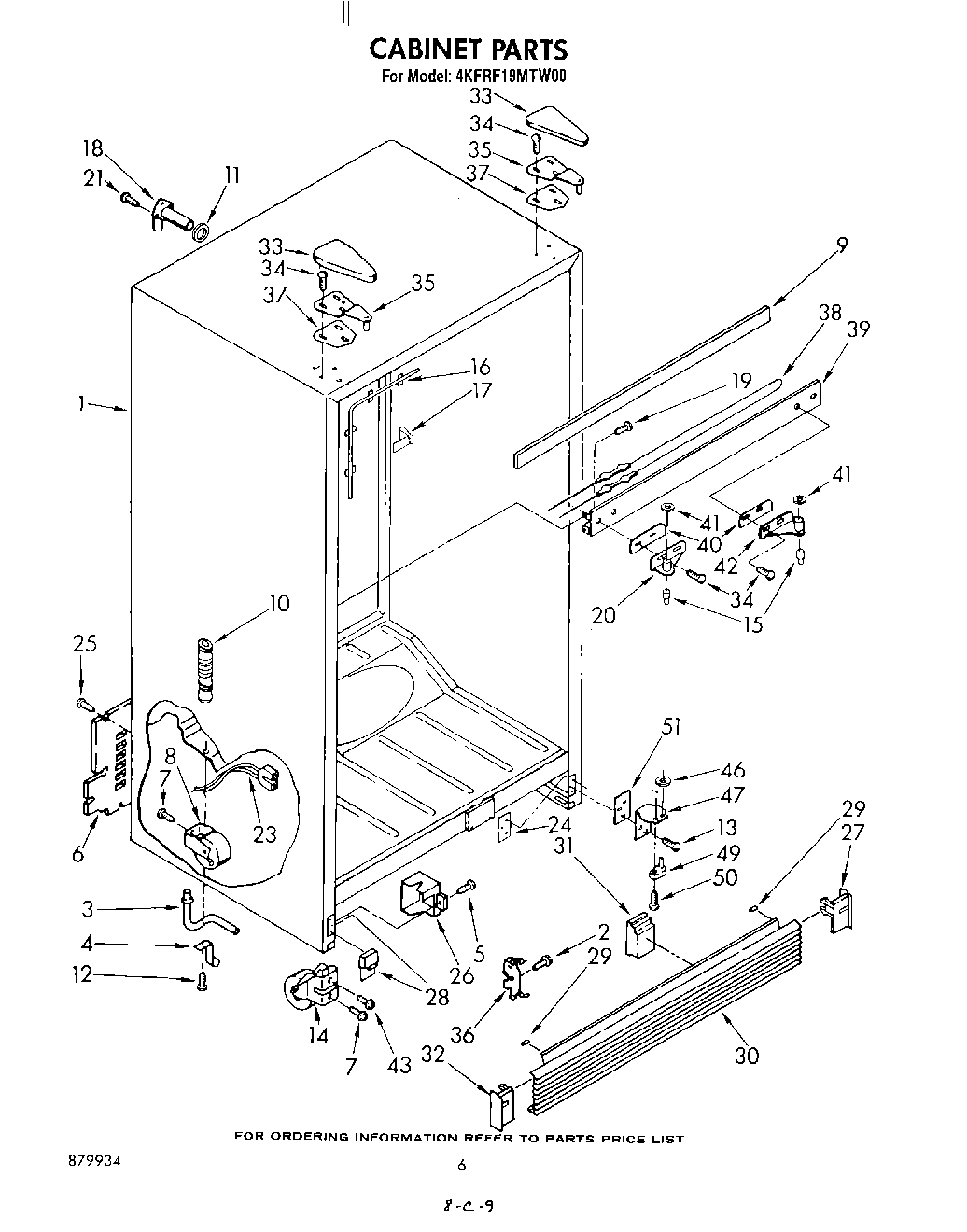

4KFRF19MTW00 04 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	W11624204 Whirlpool Screw
3	Extension, Drain Fitting
4	Cup, Drain Extension
5	WP488729 Whirlpool Refrigerator Door Screw
6	WPL 850459
7	Screw, 1/4-28 x 1/2 (2)
8	WPW10250570 Whirlpool Refrigerator Cabinet Roller
9	Seal Strip
10	Drain Fitting
11	WP1106508 Whirlpool Refrigerator Gasket
12	Screw, 8-32 x 1/2
14	Roller, Front
15	Pin, Hinge
16	Heater, Stile
17	WPL 935663
18	WP2196157 Whirlpool Fill Tube
19	Screw, 8 x 3/8
19	Screw (Repair)
20	Hinge, Center (L.H.)
21	WP98165 Whirlpool Screw
23	WPL 548734
24	Tap Plate
26	WPL 549947
27	Grille, End Cap (R.S)
28	Filler, Grille
29	Bumper, Grille (2)
30	Grille
31	Insert, Air Baffle Grille
32	Grille, End Cap (L.S.)
33	1119787 Whirlpool Refrigerator Hinge Cover
33	Hinge Cover (Toast)
34	Screw (Repair)
34	WP999367 Whirlpool Refrigerator Screw
35	Hinge, Top (2)
36	WPL 989068
37	WPL 836151
38	Heater, Mullion
39	Center Rail (Almond)
39	WPL 1100303
39	Center Rail (White)
39	WPL 1100304
40	Shim, Hinge Center
41	WP488296 Whirlpool Washer Refrigerator
42	WPL 992544
43	Screw, 5/16-24 x 1
46	WP489200 Whirlpool Refrigerator Washer
47	Hinge Butt, Bottom
49	Hinge Pin, Bottom
50	Screw
51	Shim, Bottom Hinge
