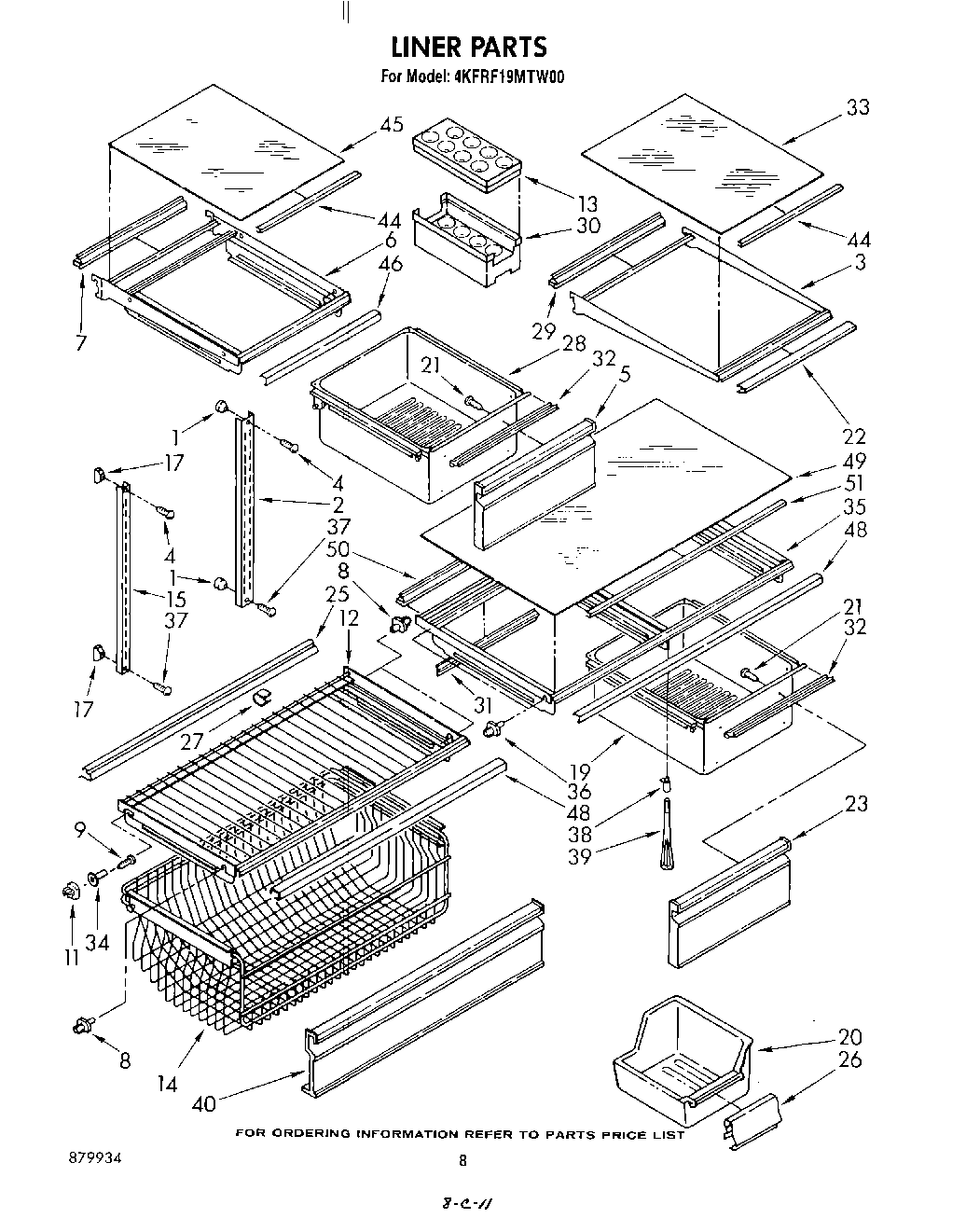

4KFRF19MTW00 05 – LINER

Products

Position	Product
1	Screw Support, Center Ladder (2)
2	Ladder (Center)
3	Shelf, Cantilever (3)
4	Screw, 8 x 1-1/4 (3)
4	Screw, (Repair) 10 x 1 1/4
5	Front Cover, Meat Pan
6	Meat Pan, Shelf
7	Reflector, Glass Shelf
8	Stud, Shelf (3)
9	Screw, 8-15 x 1
11	Screw Grommet
12	Shelf, Freezer
13	Egg Container, Top
14	Basket, Freezer
15	Ladder, Shelf (Side) (2)
17	520965 Whirlpool Refrigerator Support
19	Pan Crisper (2)
20	Ice Cube Pan
21	WP488729 Whirlpool Refrigerator Door Screw
21	Screw (Repair)
22	Trim, Shelf Front
23	Front Cover, Crisper (2)
25	Reflector, Wire Shelf
26	Trim, Ice Pan
27	Clip, Reflector
28	Pan, Meat
29	Reflector, Cantilever Shelf
30	Egg Container, Bottom
31	Crisper Gasket, Rear
32	Crisper Gasket, Front
33	Glass, Cantilever Shelf (3)
34	Stud, Shelf
35	Cover, Crisper Frame
36	Stud, Shelf (4)
37	Screw, 8-32 x 1-1/4
37	Screw (Repair)
38	Support, Cover
39	Post, Cover
40	Front, Basket
44	Shelf Gasket, Glass
45	Glass, Meat Pan
46	Trim, Frame
48	Trim, Frame
49	Glass, Crisper Cover
50	Reflector, Glass Shelf
51	Shelf Gasket, Glass
