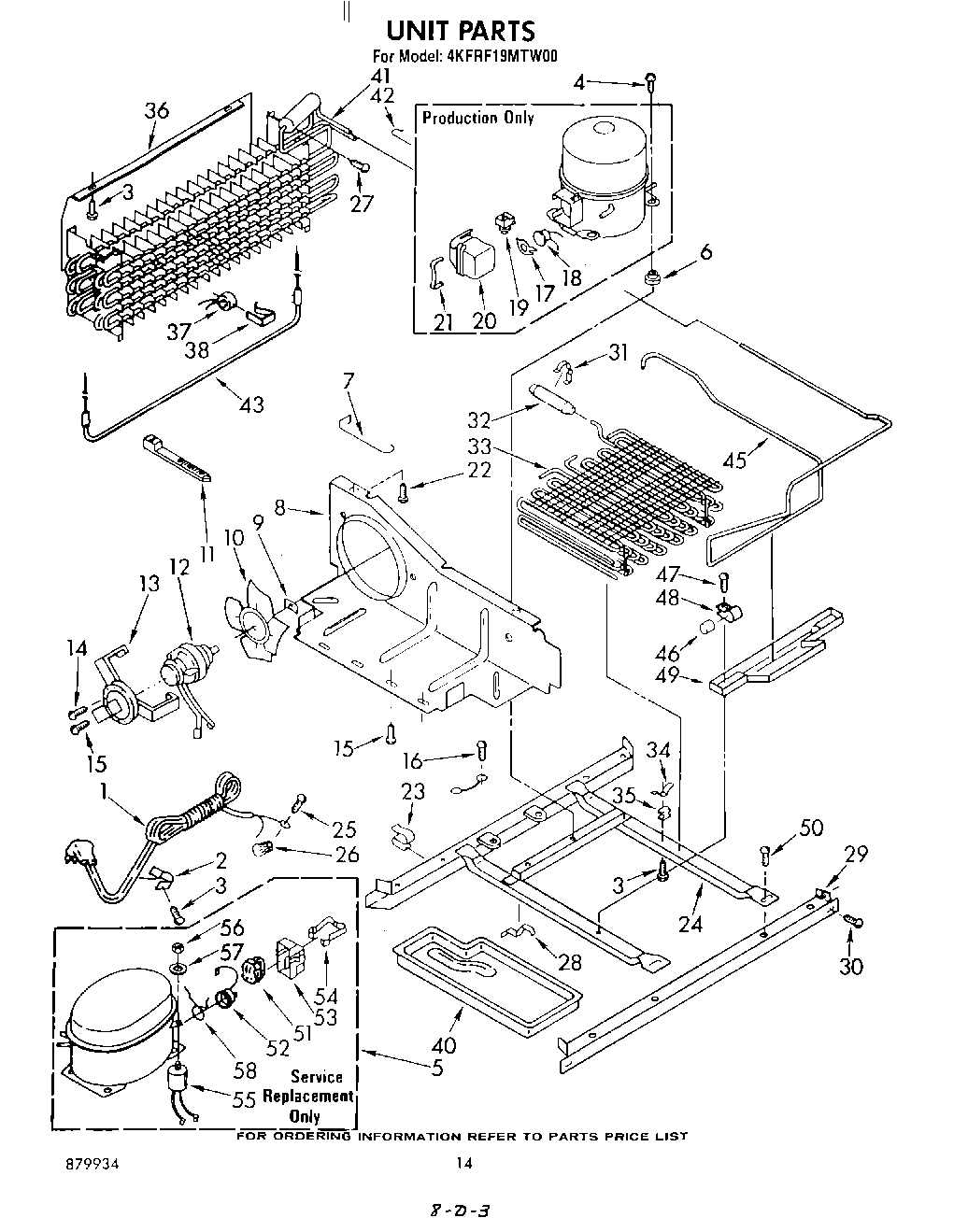

4KFRF19MTW00 08 – UNIT

Products

Position	Product
1	Cord, Service
2	549193 Whirlpool Refrigerator Power Clamp
3	W11624204 Whirlpool Screw
5	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
6	876811 Whirlpool Grommet
7	Guard, Fan
8	Baffle
9	WP486692 Whirlpool Refrigerator Nut
10	Fan, Blade
11	Strap
12	833697 Whirlpool Condenser Fan Motor
13	Bracket, Motor
14	681390 Whirlpool Refrigerator Screw
16	303776 Whirlpool Dishwasher Screw
17	Overload Spring
18	Overload
19	Relay (Used On Service Compressor 702215)
20	Case, Relay
21	Spring, Case
22	Screw, 8-32 x 1/2
23	Clip, Wire (2)
24	Frame
25	Screw, 8-32 x 3/8
26	Wire Connector
27	W11693756 Whirlpool Screw Assembly
28	Clip (2)
29	Rail, Front
30	489340 Whirlpool Refrigerator Screw
31	Clamp
32	W10843121 Whirlpool Refrigerator Tube
33	Condenser & Precooler
34	Clamp (4)
35	Grommet (4)
36	Baffle, Air Evaporator
37	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
38	Clamp
40	WPL 842041
41	Evaporator
42	Clip, Heater (2)
43	Heater, Defrost
45	Exchanger, Heat
46	Dampener (2)
47	WPW10141625 Whirlpool Refrigerator Screw Assembly
48	Clamp Tube
49	Pan, Drip
50	Screw, 1/4-28 x 1/2 (2)
51	WP2262181 Whirlpool Refrigerator Start Relay
52	Overload
53	Cover, Terminal
54	Strap
55	Capacitor
56	Nut
57	Washer
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
58	WP978025 Whirlpool Refrigerator Valve
58	978030 Whirlpool Refrigerator Valve
58	876764 Whirlpool Refrigerator Primary Valve
58	978026 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	Overload Spring
