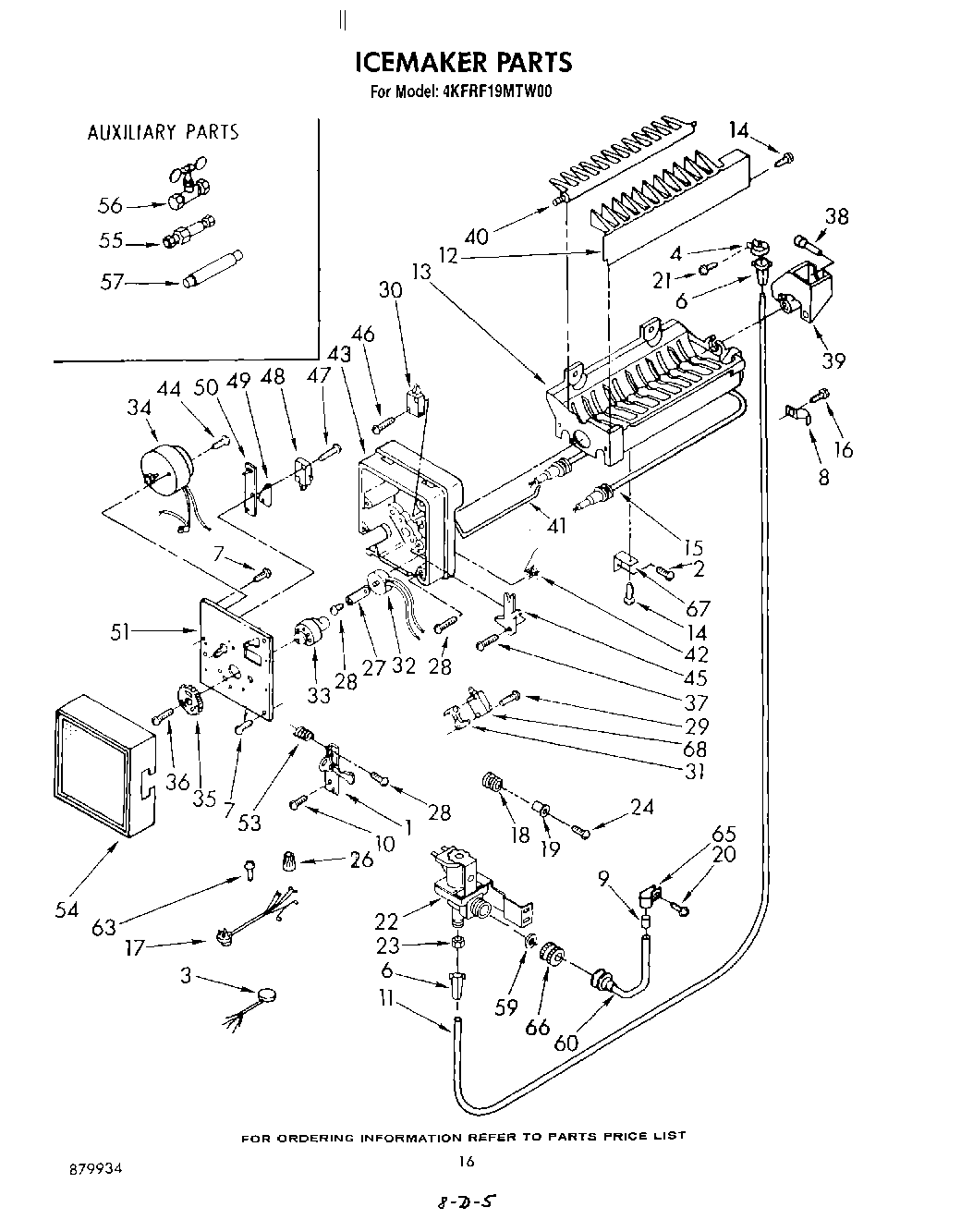

4KFRF19MTW00 09 – ICE MAKER , NOT ILLUSTRATED

4KFRF19MTW00 09 – ICE MAKER , NOT ILLUSTRATED

Written by

in

4KFRF19MTW00 09 – ICE MAKER , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	285006 Whirlpool Spray
	350942 Whirlpool Spray Paint
	WPL LIT1117646
	WPL LIT1117647
	Leveler (Thinner)
	WPL LIT1117672
	WPL LIT879934
	350956 Whirlpool Spray Assembly
1	Lever & Plate Assembly
2	Screw, 10-12 x 3/8
3	Wiring, Ice Maker
4	WP488878 Whirlpool Refrigerator Tube Clamp
6	4387491 Whirlpool Refrigerator Insert
7	WP488787 Whirlpool Refrigerator Screw
8	Clamp, Water Line (2)
9	WP2158826 Whirlpool Refrigerator Dampener
10	Screw (Use W/Motor 627106)
11	W10823511 Whirlpool Refrigerator Water Tube
12	Stripper, Ice
13	Mold & Heater Assembly (Includes Illus. 15)
15	Heater, Mold
16	WP489069 Whirlpool Compactor Screw
17	Harness, Wiring
18	Grommet (2)
19	Spacer (2)
20	W11624204 Whirlpool Screw
21	WP965173 Whirlpool Dishwasher Screw
22	4318047 Whirlpool Water Valve
23	WP627018 Whirlpool Refrigerator Nut
24	W11693756 Whirlpool Screw Assembly
26	Wire Connector
27	Clamp, Thermostat
28	Screw, 8-32 x 1
30	Switch, S.P.D.T. (2)
31	Spacer, Switch (2)
32	Thermostat
33	Cam
34	Motor
35	Gear
36	Screw
37	Screw, Shoulder
38	Tube, Water Inlet
39	Bearing & Inlet
40	Ejector
41	Arm, Shut-Off
42	Spring, Shut-Off Arm
43	Support
44	Screw, 4-40 x 1
45	Lever, Arm
46	Screw, 4-24 x 3/4
47	Screw
48	Switch, S.P.S.T.
49	Insulator
50	Plate, Valve Switch
51	Plate, Mounting
53	Spring
54	Cover
55	Union, 1/4“ x 3/16“
56	Valve, Shut-Off
57	Filter Kit
59	WP16123 Whirlpool Washer
60	Tube, Inlet Valve
63	WP489128 Whirlpool Refrigerator Screw
65	Clamp Tube
66	Nut, Valve
67	WP2256087 Whirlpool Refrigerator Bracket
68	876370 Whirlpool Refrigerator Insulation
68	833938 Whirlpool Refrigerator Terminal
68	606755 Whirlpool Refrigerator Bag
68	WPL 72112
68	511873 Whirlpool Refrigerator Paint
68	Almond (Uncut)
68	WP72107 Whirlpool Touchup
68	799344 Whirlpool Refrigerator Paint
68	212643 Whirlpool Refrigerator Permagum Sealer
68	72017 Whirlpool Appliance Touch-Up Paint White
68	WP503695 Whirlpool Refrigerator Sealer
68	72113 Whirlpool Touch-Up Paint
68	72032 Whirlpool Touch Up Paint Black
68	Enamal, Toast (1 Qt. Uncut)
68	WPL 876029
68	WPL 799833
68	WPL 799832
68	Enamel, Black (1 Qt. Uncut)
68	CEMENT, ALUMILASTIC (1 1/4 OZ.)
68	TAPE, VINYL (3/4 X 108“)
68	Platinum (Uncut)
68	WP542638 Whirlpool Refrigerator Grease
68	WP505587 Whirlpool Refrigerator Sealer
68	Switch, S.P.D.T.
