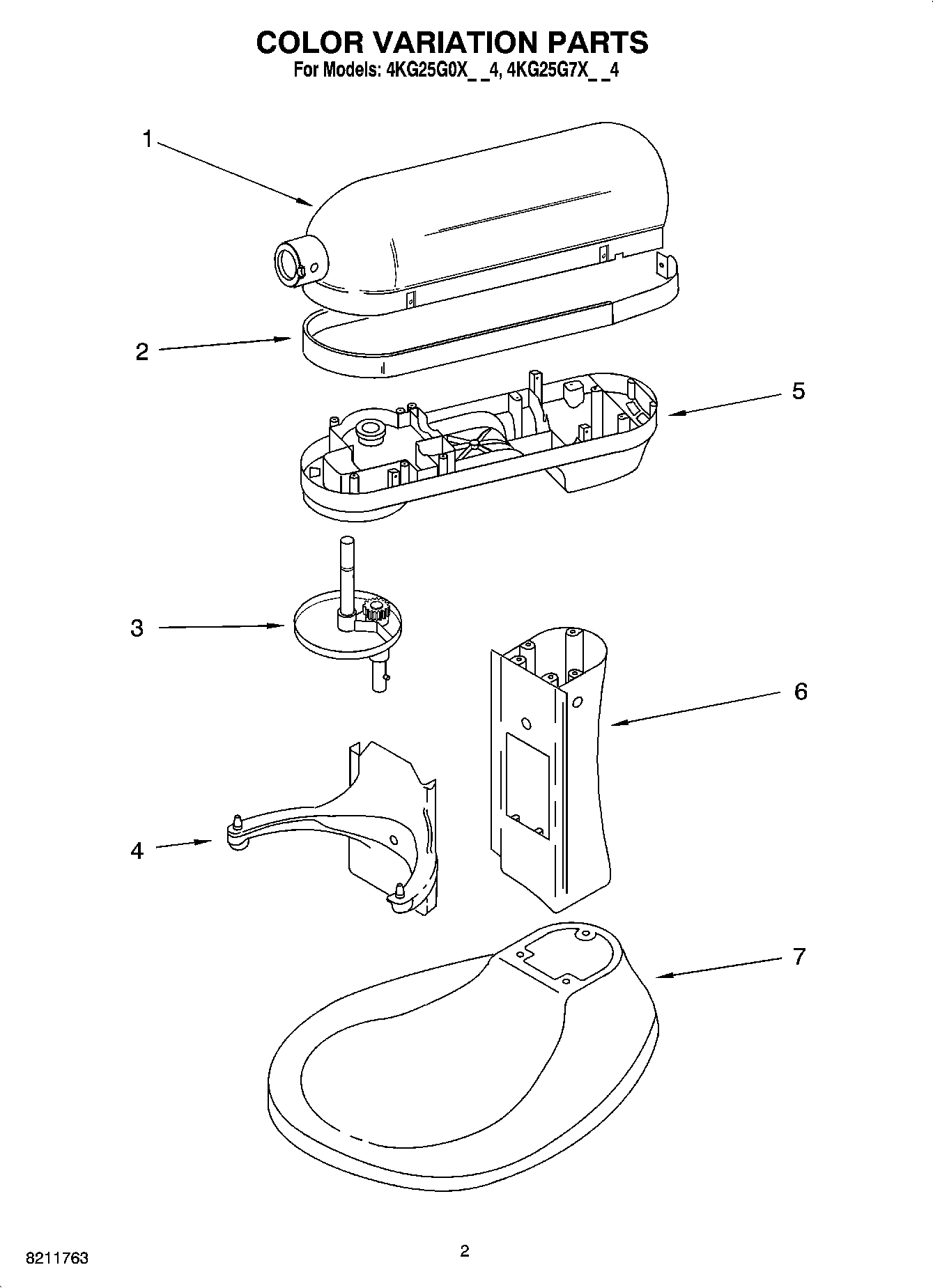

4KG25G0XMC4 01 – COLOR VARIATION PARTS

4KG25G0XMC4 01 – COLOR VARIATION PARTS

Written by

in

4KG25G0XMC4 01 – COLOR VARIATION PARTS

Products

PositionProduct
19709571 Whirlpool Housing Assembly
19703311 Whirlpool Housing Assembly
19703433 Whirlpool Housing
19705296 Whirlpool Housing
19705300 Whirlpool Housing Assembly
2Trim Band (Black)
3WP9708172 Whirlpool Planetary Assembly
3WP9709575 Whirlpool Planetary Mixer
3WP9708176 Whirlpool Planetary Mixer
3WP9708180 Whirlpool Planetary Gear
3WP9708175 Whirlpool Planetary Gear
4Bowl Support and Pins (White)
4Bowl Support and Pins (Onyx Black)
4Bowl Support and Pins (Empire Red)
4Bowl Support & Pin (Silver)
4Bowl Support & Pin (Metallic Chrome)
5Lower Gearcase (Metallic Chrome)
5WP9706047 Whirlpool Gearcase
59706331 Whirlpool Gearcase
59709578 Whirlpool Gearcase
59706311 Whirlpool Gearcase
69705320 Whirlpool Column
6WPL 9709585
69703349 Whirlpool Column
69705324 Whirlpool Column Assembly
69703673 Whirlpool Column
79705348 Whirlpool Base
79703690 Whirlpool Base
79703346 Whirlpool Base
79709588 Whirlpool Base
79705344 Whirlpool Base
