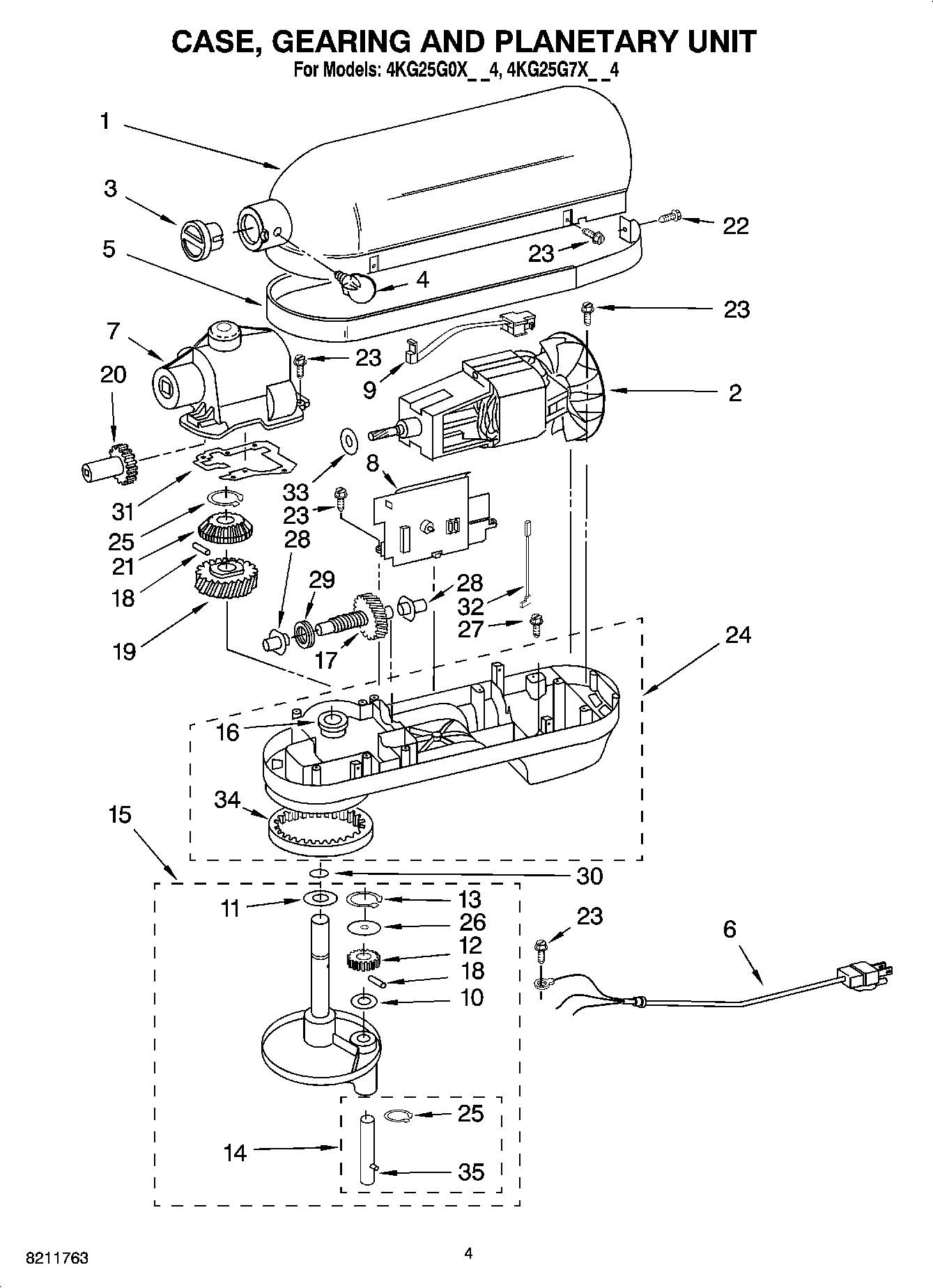

4KG25G7XOB4 02 – CASE, GEARING AND PLANETARY UNIT

Products

PositionProduct
1Gearcase Motor Housing
2WPW10247536 Whirlpool Motor
3WP9703315 Whirlpool Hub Cap
4WP9709194 Whirlpool Black Thumb Screw
5Band, Trim
6W11359748 Whirlpool Power Cord
6W11728151 Whirlpool Power Cord
78212396 Whirlpool Housing
9WP9706648 Whirlpool Speed Control
10WP9706090 Whirlpool Washer
11W11084660 Whirlpool Washer
12W11133646 Whirlpool Gear
13WP9703438 Whirlpool Snap Retaining Ring
14WP9708191 Whirlpool Agitator Shaft
15Planetary Assembly
16WP16897 Whirlpool Bearing
17WP9709231 Whirlpool Gear Assembly
18WP9707223 Whirlpool Dowel Pin
19GEAR
21W11192795 Whirlpool Gear
22W10853069 Whirlpool Screw
23WP3400814 Whirlpool Screw
24Lower Gear Case
25WP9703680 Whirlpool Retainer Ring
26W10854966 Whirlpool Washer
27W10913677 Whirlpool Screw
28WPW10170081 Whirlpool Bearing
28WPW10170080 Whirlpool Bearing Assembly
29WP9703445 Whirlpool Bearing Kit Thrust
30O RING
329706036 Whirlpool Wire Assembly
33WP9706247 Whirlpool Seal
34W11181966 Whirlpool Gear
35W11664709 Whirlpool Groove Pin
