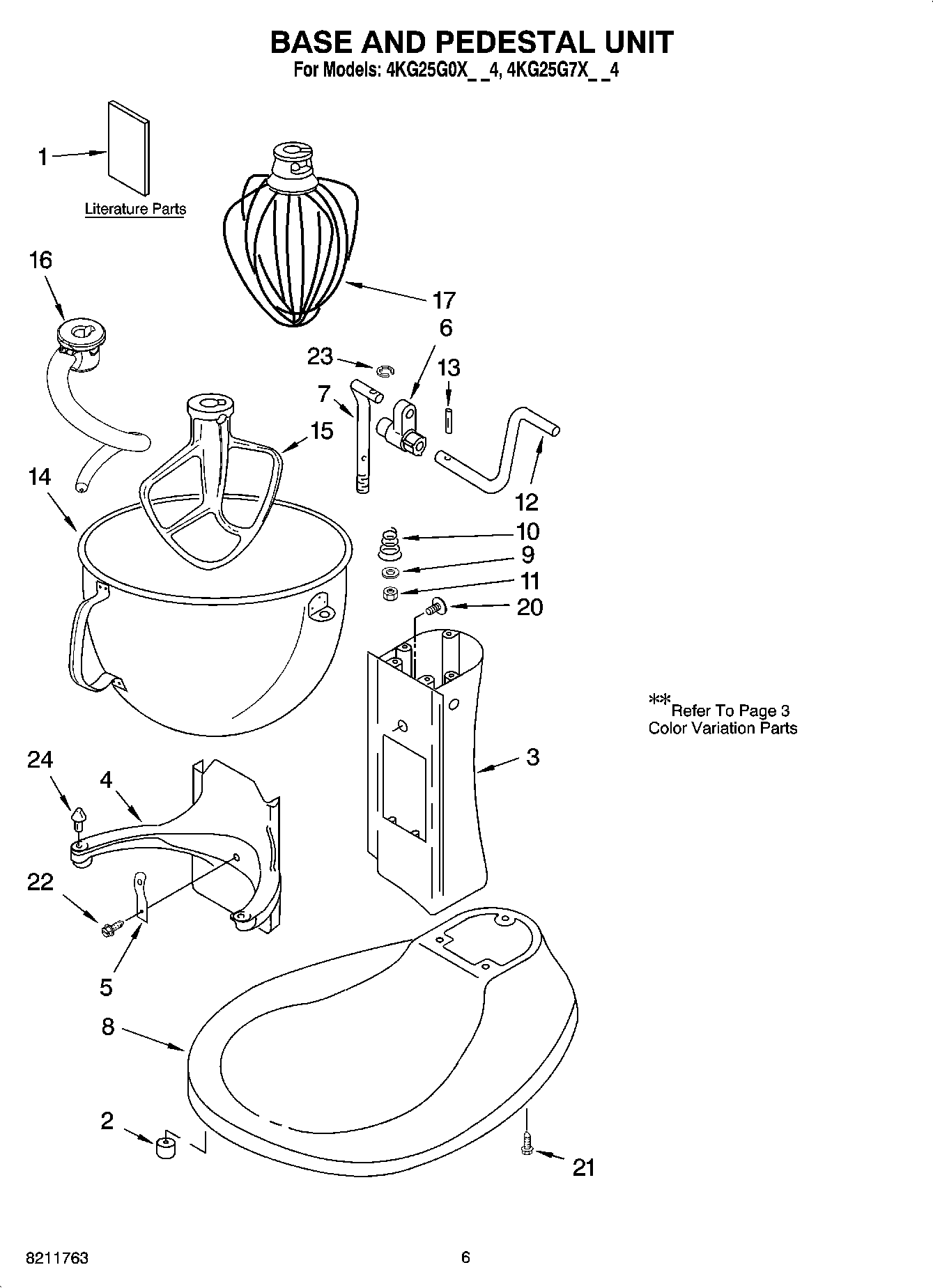

4KG25G7XWH4 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	SAUSAGE STUFFER KIT (SSA)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	W11200218 Whirlpool Grease Filter
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	Food Tray (FT)
	CAN OPENER (CO)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	Spoons, Measuring
	Spatula (White)
	MAKER, ICE CREAM (KICA0WH)
	Grain Mill, KGMA
	PASTA MAKER PLATES (SNPA)
1	GUIDE, USE AND CARE
1	Repair Parts List
2	WP9708649 Whirlpool Foot
3	Column Assembly
4	Bowl Support
5	WPW10504114 Whirlpool Clip
6	WP9706885 Whirlpool Lift Arm Assembly
7	W11376364 Whirlpool Lift Rod
8	Base And Foot Supports
9	Washer
10	4159622 Whirlpool PP Spring
11	8533907 Whirlpool Dishwasher Nut
12	W11376371 Whirlpool Handle Assembly
13	WP3400814 Whirlpool Screw
14	WPW10716820 Whirlpool Mixer Bowl
15	BEATER, FLAT
16	W11319616 Whirlpool Dough Hook
17	WPW10731415 Whirlpool Stand Mixer Wire Whip
20	Cam, Adjusting
21	W10913677 Whirlpool Screw
22	W10861883 Whirlpool Screw
23	WP9703307 Whirlpool Ring-C Assembly
24	WP240185 Whirlpool Bowl Retaining Pin
