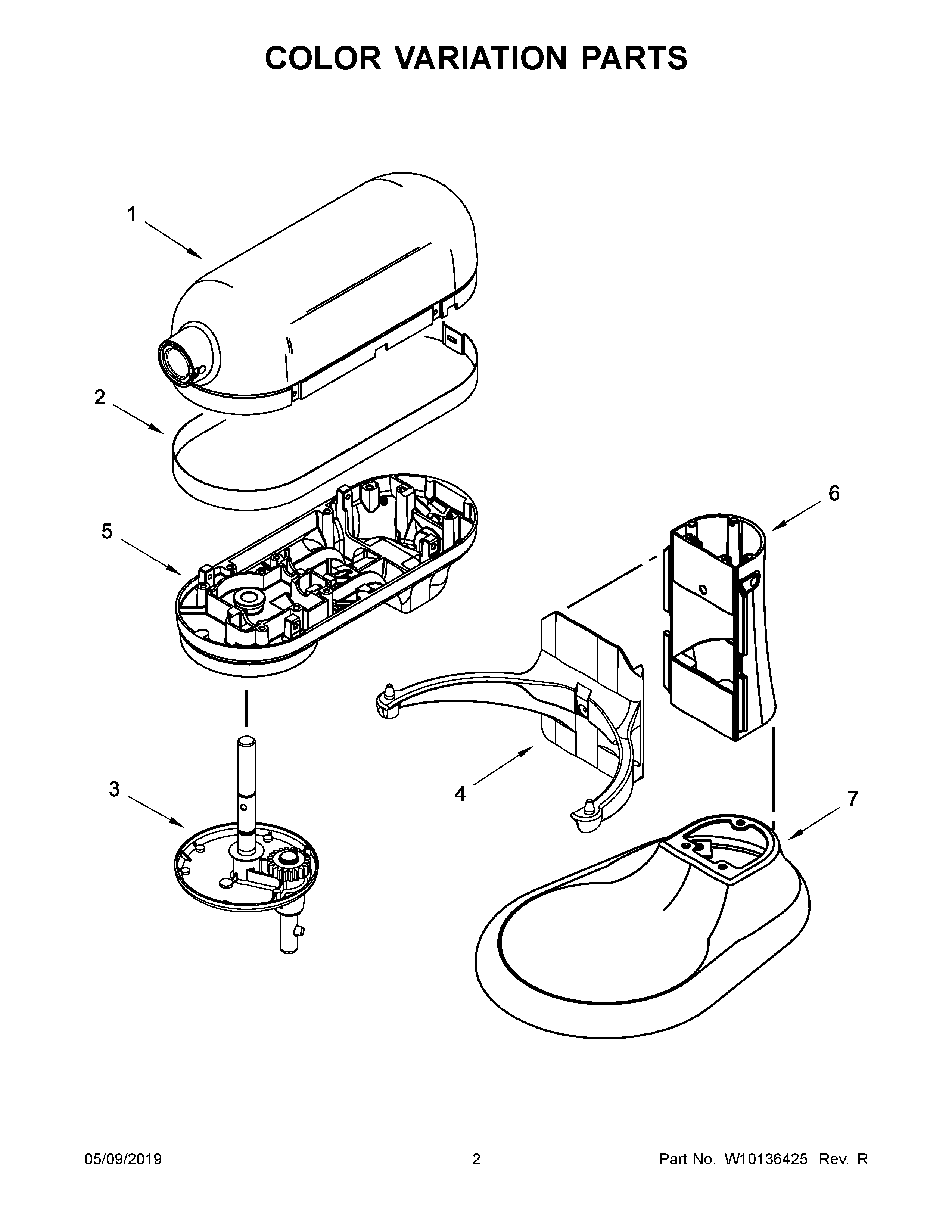

4KG25H3XWH5 02 – COLOR VARIATION PARTS

4KG25H3XWH5 02 – COLOR VARIATION PARTS

Written by

in

4KG25H3XWH5 02 – COLOR VARIATION PARTS

Products

PositionProduct
1D9709571 Whirlpool Housing Assembly
1GMOTOR HOUSING (COPPER PEARL)
1IMOTOR HOUSING (LIQUID GRAPHITE)
1JMOTOR HOUSING (GREEN APPLE)
1PMotor Housing (Majestic Yellow)
1TMOTOR HOUSING (CRIMSON RED)
1OW10114555 Whirlpool Housing
1MMOTOR HOUSING (BOYSENBERRY)
1LMOTOR HOUSING (AQUA SKY)
1KW10726426 Whirlpool Housing
1NWPW10453625 Whirlpool Housing
1A9703532 Whirlpool Housing Assembly
1RMOTOR HOUSING (BLACK MATTE)
1E9703433 Whirlpool Housing
1C9705300 Whirlpool Housing Assembly
1HMotor Housing (Cobalt Blue)
19703311 Whirlpool Housing Assembly
1QMOTOR HOUSING (PISTACHIO)
1FMOTOR HOUSING (CRYSTAL BLUE)
1SMOTOR HOUSING (MATTE DRIED ROSE)
1B9705296 Whirlpool Housing
2W10749681 Whirlpool Trim Band
3FPLANETARY (CRYSTAL BLUE)
3OW10114559 Whirlpool Planetary Assembly
3DWP9709575 Whirlpool Planetary Mixer
3LW10577733 Whirlpool Planetary Gear
3KW10726430 Whirlpool Planetary Mixer
3RW11123171 Whirlpool Planetary Assembly
3MW10343683 Whirlpool Planetary Gear
3IWP9707977 Whirlpool Planetary Gear
3P9708181 Whirlpool Planetary
3JW10343681 Whirlpool Planetary Gear
3AWP9708174 Whirlpool Planetary
3CWP9708180 Whirlpool Planetary Gear
3HPlanetary (Cobalt Blue)
3BWP9708176 Whirlpool Planetary Mixer
3EWP9708175 Whirlpool Planetary Gear
3WP9708172 Whirlpool Planetary Assembly
3TWPL W11236439
3SWPL W11236432
3Q9708190 Whirlpool Planetary
3G9709156 Whirlpool Planetary Assembly
3NWPW10453629 Whirlpool Planetary Mixer
4Bowl Support and Pins (White)
4OWPL W10808330
4TWPL W11234588
4SWPL W11234576
4RWPL W11123133
4KBOWL SUPPORT AND PINS (ICE)
4EBowl Support & Pin (Metallic Chrome)
4MWPL W10819157
4PWPL W10819160
4CBowl Support and Pins (Empire Red)
4BBowl Support and Pins (Onyx Black)
4QWPL W10902058
4NWPL W10808331
4LW10808334 Whirlpool Support
4DBowl Support & Pin (Silver)
4A9708853 Whirlpool Support Assembly
4FWPL W10562418
4GWPL W10625482
4HWPL W10672071
4IWPL W10707409
4JWPL W10726831
5NWPW10453632 Whirlpool Gearcase
5QWPL 9708097
5SWPL W11236430
5TWPL W11236437
5H9709159 Whirlpool Gearcase Assembly
5GW10562412 Whirlpool Gearcase
5CW10343980 Whirlpool Gearcase Assembly
5JW10513724 Whirlpool Gearcase Assembly
5MW10577750 Whirlpool Gearcase
5WP9706047 Whirlpool Gearcase
5OWPL W10114562
5E9709578 Whirlpool Gearcase
5LW10726433 Whirlpool Gearcase
5RGEARCASE
5ILower Gearcase (Cobalt Blue)
5PLower Gearcase (Majestic Yellow)
5KLOWER GEARCASE (GREEN APPLE)
5A9706301 Whirlpool Gearcase
5FLower Gearcase (Metallic Chrome)
5D9706331 Whirlpool Gearcase
5B9706311 Whirlpool Gearcase
6H9705384 Whirlpool Column
6FWPL W10562421
6GWPL 9709166
6B9705320 Whirlpool Column
6IWPL W10513737
6TWPL W11234597
6E9703349 Whirlpool Column
69703673 Whirlpool Column
6MWPL W10344074
6OWPL W10114569
6PWPL 9705325
6JWPL W10344072
6QCOLUMN AND PINS (PISTACHIO)
6C9705324 Whirlpool Column Assembly
6RWPL W11123140
6KW10726438 Whirlpool Column Assembly
6SCOLUMN AND PINS (MATTE DRIED ROSE)
6LWPL W10577769
6NWPW10453639 Whirlpool Column Assembly
6DWPL 9709585
6ACOLUMN-Imperial Black
7C9705348 Whirlpool Base
7ABase And Foot Assembly (Imperial Black)
7E9703346 Whirlpool Base
7B9705344 Whirlpool Base
79703690 Whirlpool Base
7D9709588 Whirlpool Base
7FWPL W1056242
