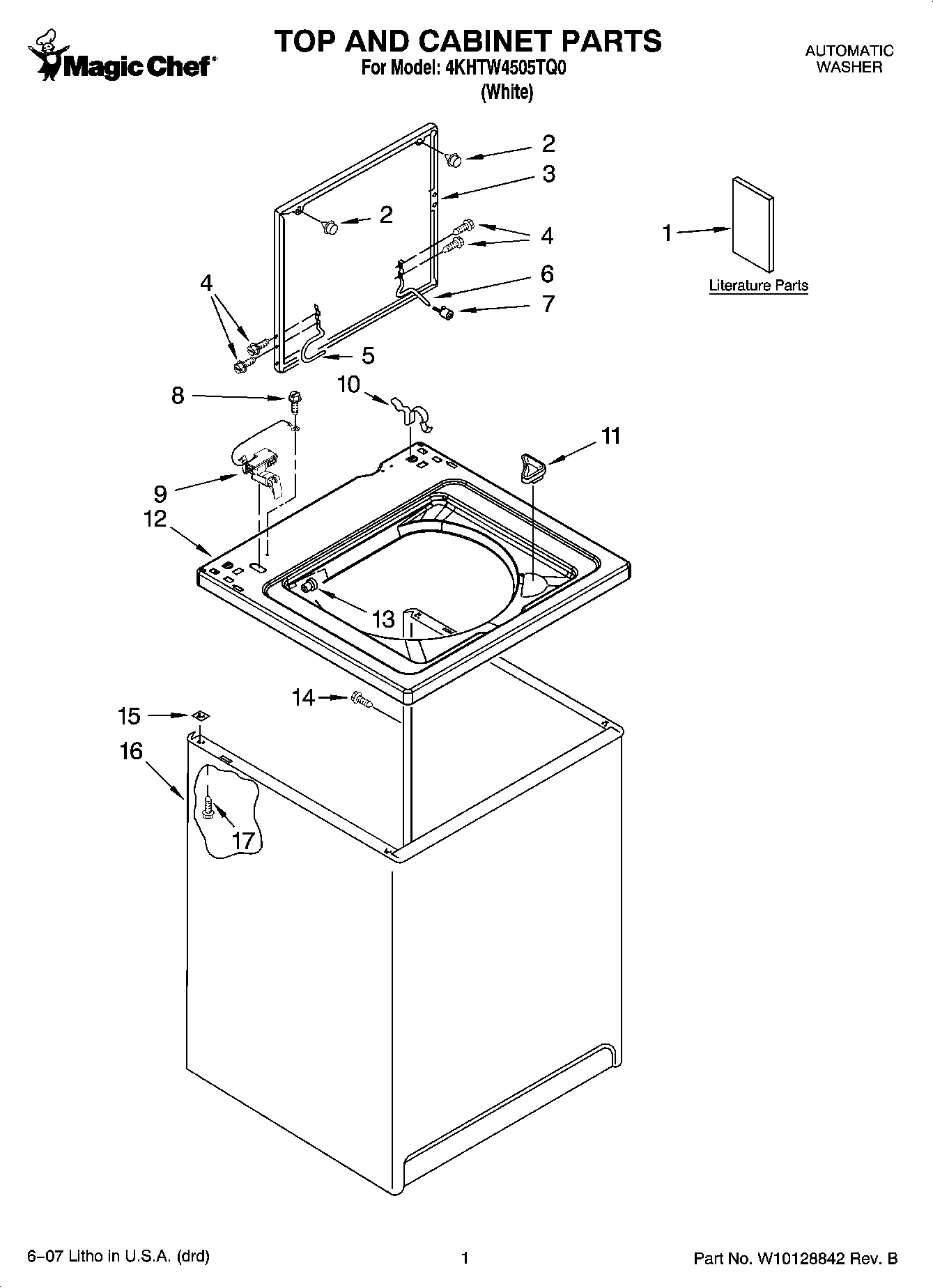

4KHTW4505TQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10117888
1	MAY W10110461
1	MAY W10096749
1	MAY W10117895
1	MAY W10117881
1	MAY W10117889
1	MAY W10117894
2	MAY 9724509
3	MAY W10093681
4	Screw And Washer
5	MAY 8318088
6	HINGE, LID (RIGHT HAND)
7	MAY 19119
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	MAY 8318084
10	MAY 62780
11	MAY 3362952
12	MAY 8559483
13	Hinge, Bearing (2)
14	SCREW
15	MAY 62750
16	Cabinet
17	SCREW
