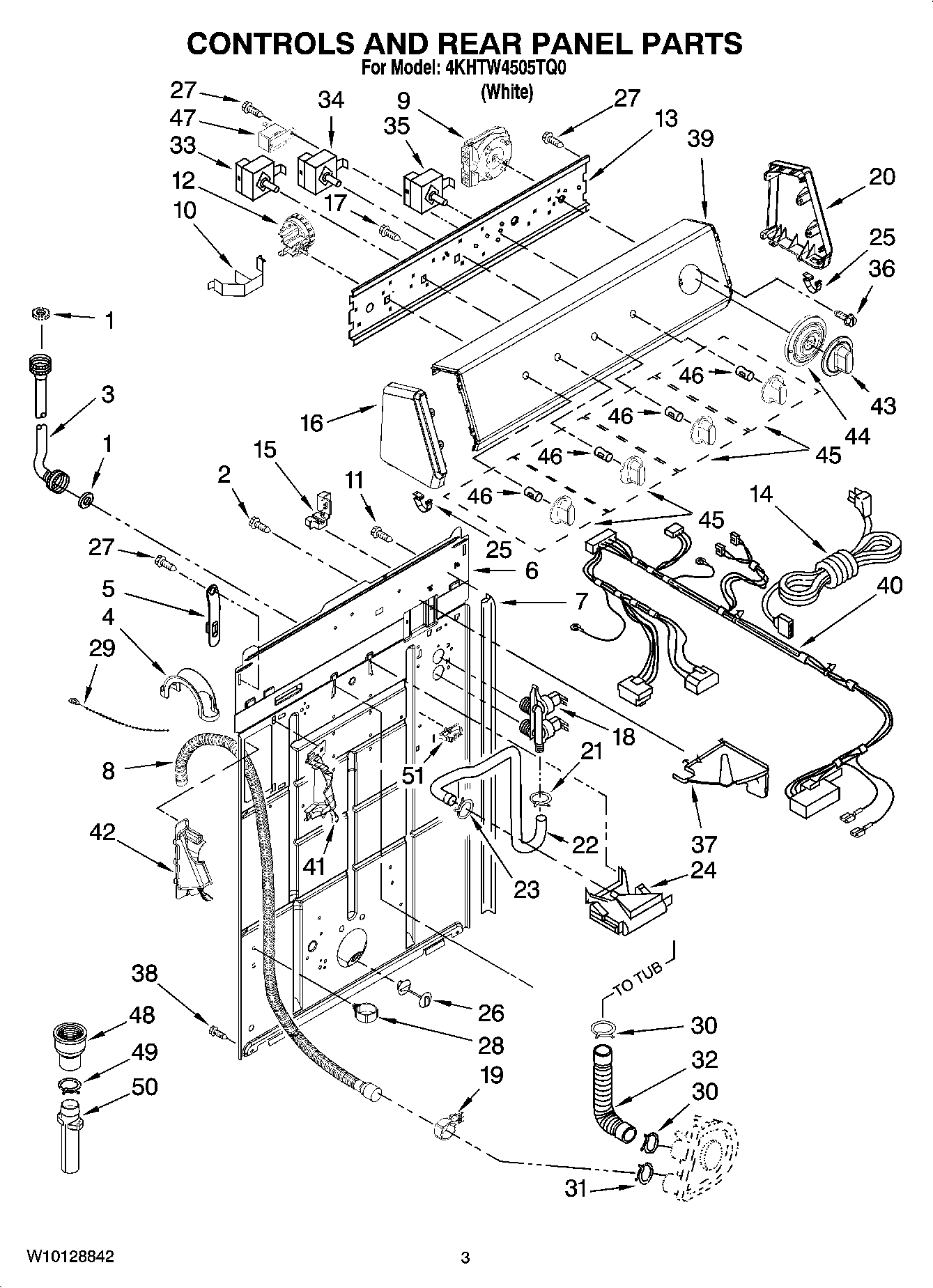

4KHTW4505TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (2) (Blue Coupler)
3	Hose, Water Inlet (Hot Water)
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	MAY W10110460
10	Clip, Harness & Pressure Switch
11	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
12	MAY 8577845
13	MAY 8579677
14	MAY W10111552
15	MAY 8559337
16	Cap, End (R.H.) (White)
17	SCREW
18	MAY 3952165
19	MAY 8541668
20	Cap, End (L.H.) (White)
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	MAY 8312709
26	MAY 8519200
27	SCREW,8-18 X 3/8
28	MAY 8541667
29	MAY 3347868
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 661612
34	Switch, Rotary
35	MAY 3949187
36	SCREW
37	MAY 8539874
38	Screw, Mixing Valve Mounting
39	MAY W10115404
40	Harness, Wiring (For Detail See Pages 9 & 10)
41	MAY 8541669
42	MAY 8541658
43	MAY W10110061
44	MAY W10110062
45	Knob, Control (1) (White)
46	CLIP, SPRING
47	MAY 3952439
48	MAY 8577375
49	Clamp, Hose
50	MAY 3363920
51	MAY 3352944
