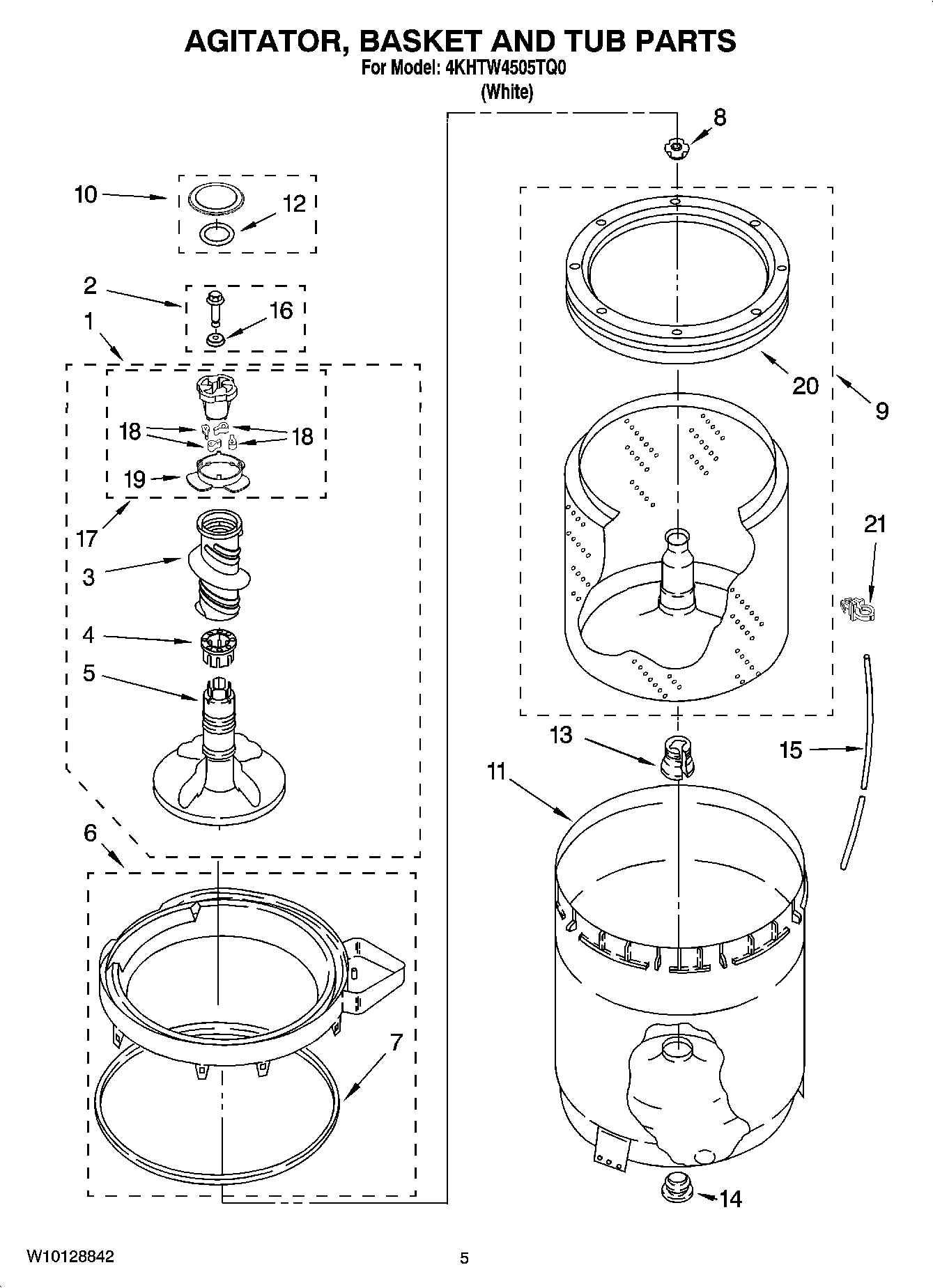

4KHTW4505TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1Agitator(Complete)
2Screw & Washer
3MAY 3360824
4SPACER, THRUST
5MAY W10093670
6Tub Ring
7MAY 3976308
8MAY 21366
9MAY 8526016
10MAY 8565983
11MAY 63849
12MAY 358912
13Block, Drive
14MAY 383727
15MAY 3347780
16MAY 3949550
17Cam, Driven
18Dog, Agitator (4)
19BEARING, CAM
20Ring, Balance
21Clip, Harness (1)
