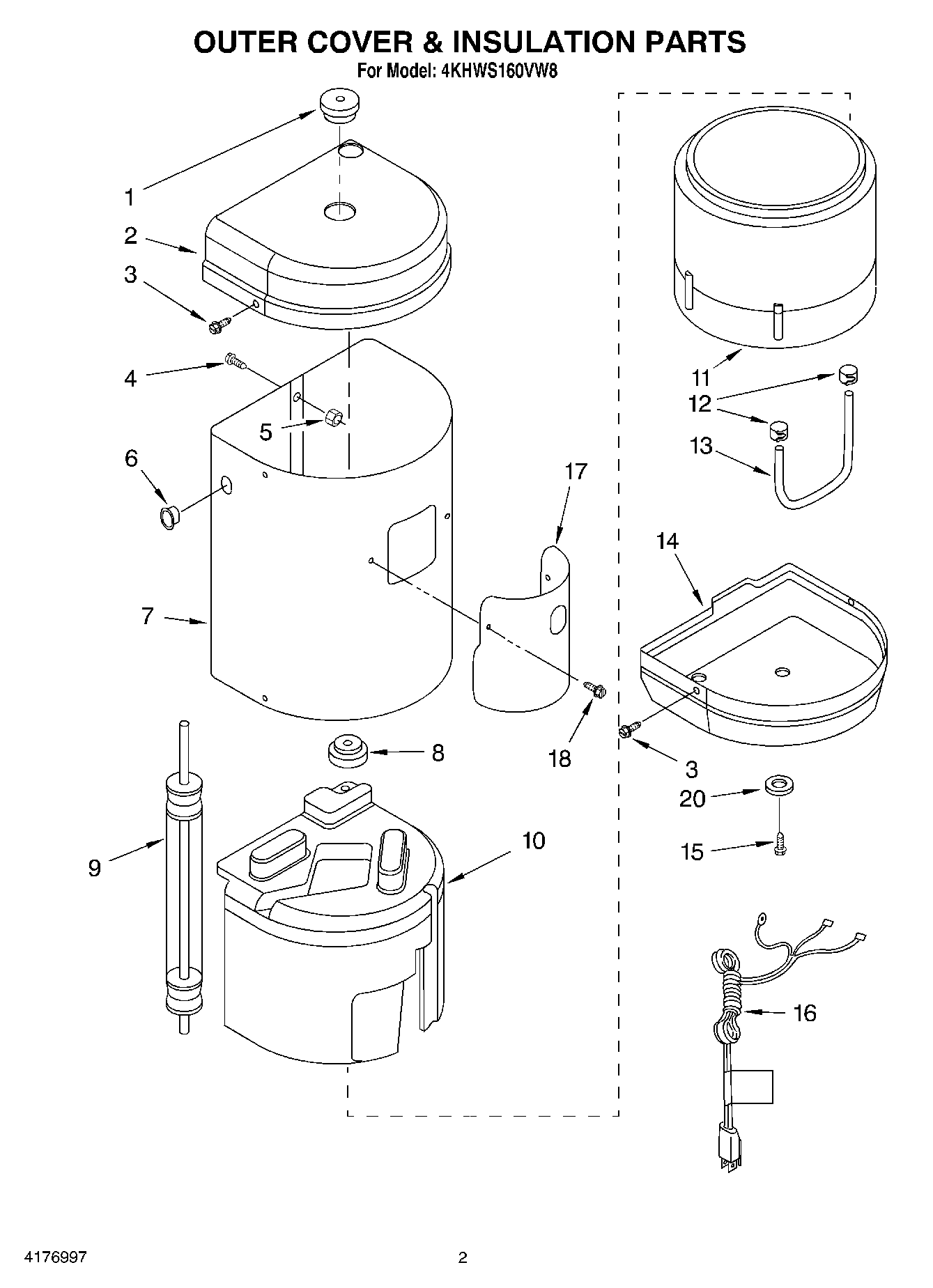

4KHWS160VW8 02 – OUTER COVER & INSULATION, LITERATURE

Products

Position	Product
	Instructions, Installation & Use And Care
1	Bushing, Molded
3	W11245710 Whirlpool Refrigerator Screw
4	WP3400814 Whirlpool Screw
5	Nut, Mounting
6	Strain Releif, Power Cord
7	Shell
8	Molded Bushing
9	Displacer
10	Insulation, Top
11	Insulation, Bottom
12	Clamp, Hose
13	Hose, Clear
14	End Cap, Top
15	Screw, 8-32X.5 (stainless)
16	Cord, Power
17	Front Cover
18	WP313808 Whirlpool Screw
20	O-Ring
