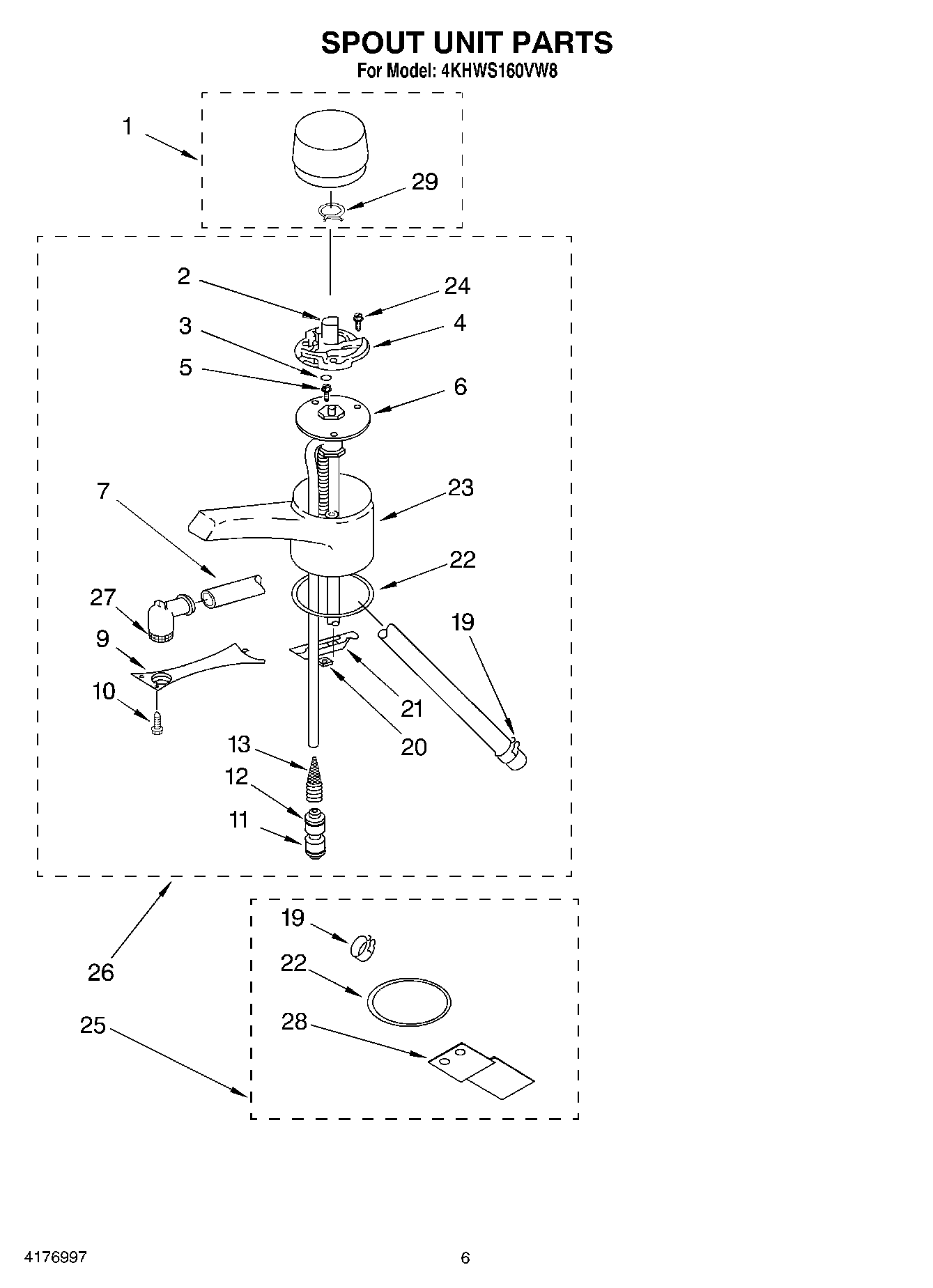

4KHWS160VW8 04 – SPOUT UNIT

Products

Position	Product
1	Knob (Almond)
1	Knob (Black)
1	Knob (White)
2	Hub, Valve Drive
3	Spring, Compression
4	Cam
5	WP3400202 Whirlpool Screw
6	Mechanical Valve (Includes Illus. 13 & 14)
7	Tube (3/8“ I.D.)
9	Plate, Spout
10	Screw, Self Tapping (No.4-20 X 5/16“) Phil. Flat Hd.
11	WP2198677 Whirlpool Refrigerator Connector
12	Cover, Collet
13	Screen, Inlet
19	Clamp, Hose
20	Machine Nut 1/4-20 Sq.
21	Bracket, Spout Mounting
22	Seal, Sink
23	Faucet Spout (Chrome)
23	Faucet Spout (White)
23	Faucet Spout (Almond)
24	489392 Whirlpool Refrigerator Screw
25	Hardware, Installation
26	Faucet Assembly (Chrome)
26	Faucet Assembly (Almond)
26	Faucet Assembly (White)
27	Flow Screen
28	Bracket, Mounting
29	Clamp, Hose
