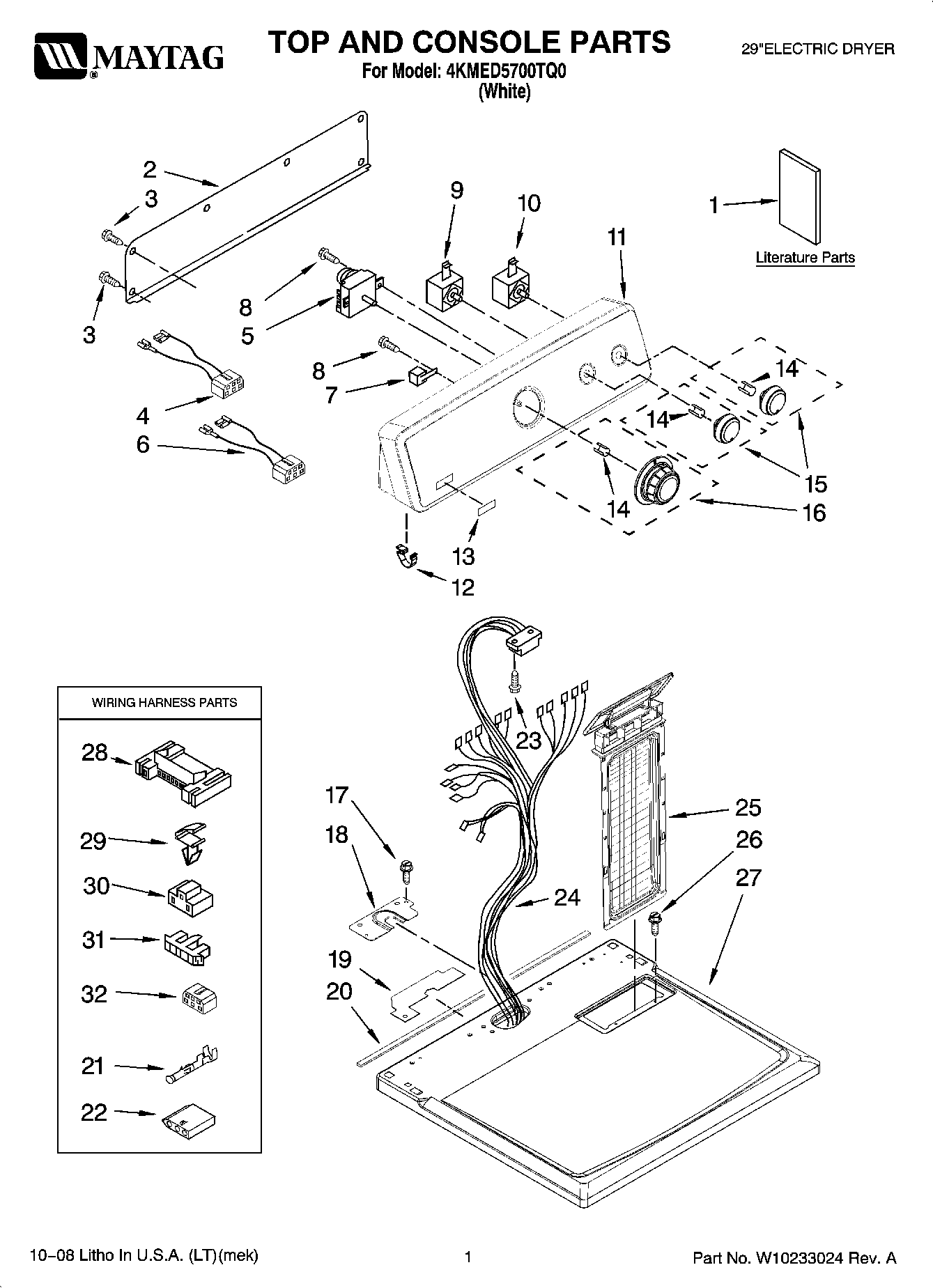

4KMED5700TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10167648
1	MAY W10131626
1	MAY W10131625
1	GUIDE, USE & CARE (ARABIC)
1	GUIDE, USE & CARE (ENGLISH)
2	Panel, Rear
3	Screw
4	WIRE, JUMPER (BUZZER)
5	MAY 3979617
6	MAY W10110861
7	MAY 3952439
8	MAY 8533971
9	Switch, Temperature
10	MAY W10112668
11	Console & Shell Assembly (Includes Items 5 & 6)
12	MAY 8312709
13	Badge
14	CLIP, SPRING
15	Knob, Control (3)
16	Timer-Knob Assembly
17	Screw, 8-18 x 3/4
18	MAY 8565981
19	MAY W10118608
20	Seal, Foam Console Bracket
21	Terminal
22	MAY 3936144
23	SCREW
24	MAY W10221863
25	Screen, Lint
26	SCREW
27	Top
28	CONNECTOR (MOTOR)
29	CLIP, HARNESS
30	Connector (PTS) Relay
31	Connector-Timer
32	Connector
