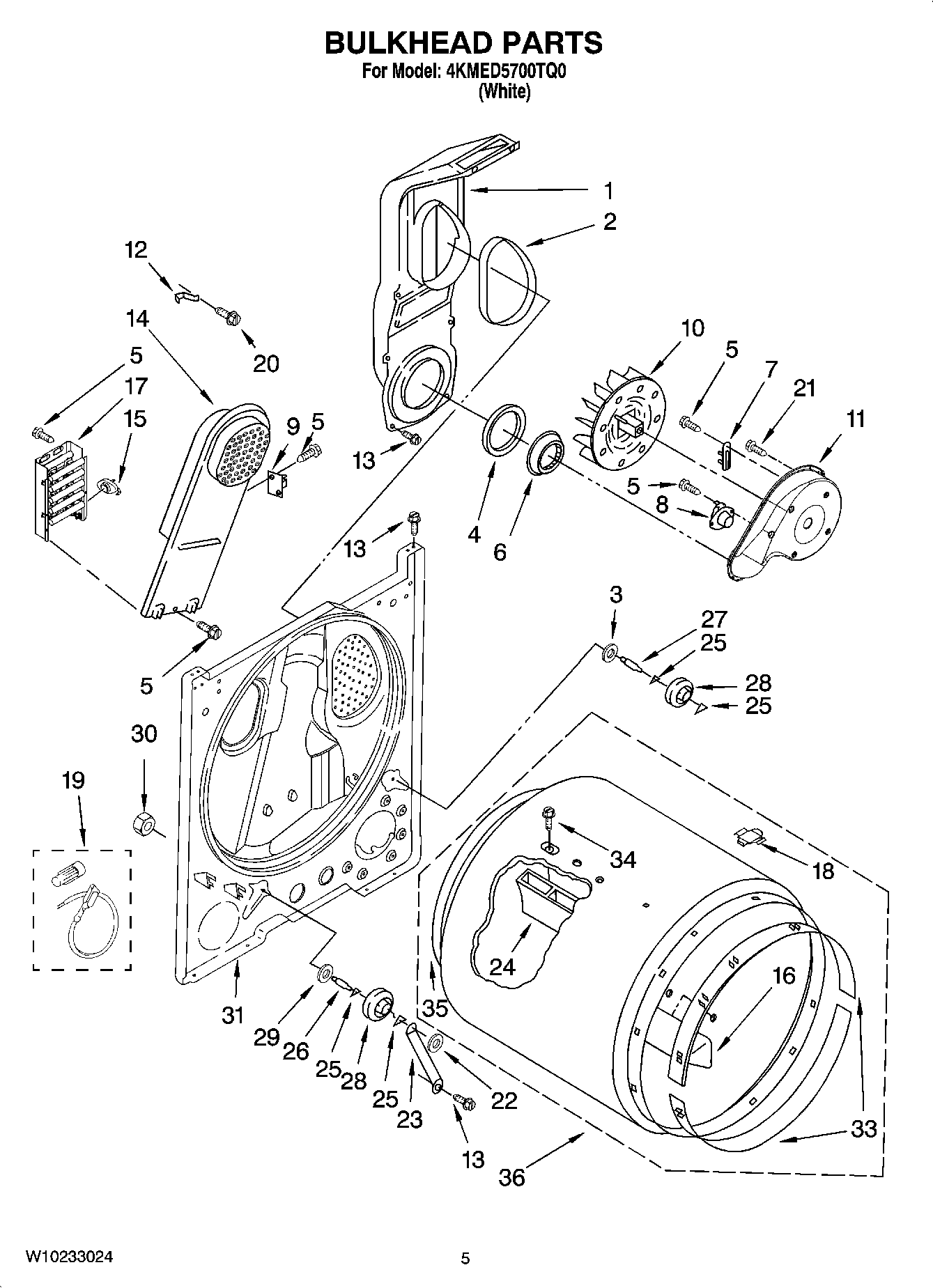

4KMED5700TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

4KMED5700TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

4KMED5700TQ0 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIACCESSORY PARTS, KIT, DRYER REPAIR
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIACCESSORY PARTS (KIT, DRYER VENT TESTING)
NIMAY 3406839
NIPAINT, TOUCH-UP (1/2OZ. WHITE)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
1MAY 348368
2MAY 339956
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 696302
7Fuse, Thermal (91 C)
8THERMOSTAT, INTERNAL BIAS
9MAY 3977393
10Wheel, Blower
11MAY 8577230
12CLIP HEATER BOX
13SCREW
14MAY 8541818
15MAY 3977767
16BAFFLE, DRUM (SHORT)
17MAY 3403585
18Plug, Drum Hole
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21SCREW
22NUT, PUSH ON
23MAY 3976434
24BAFFLE, DRUM (LONG)
25WASHER, TRI RING
26MAY 3399506
27MAY 3399507
28MAY 3397590
29WASHER
30Nut, 3/8-16
31MAY 3403410
33Bearing, Ring
34MAY W10109200
35MAY 3406130
36MAY 695587
