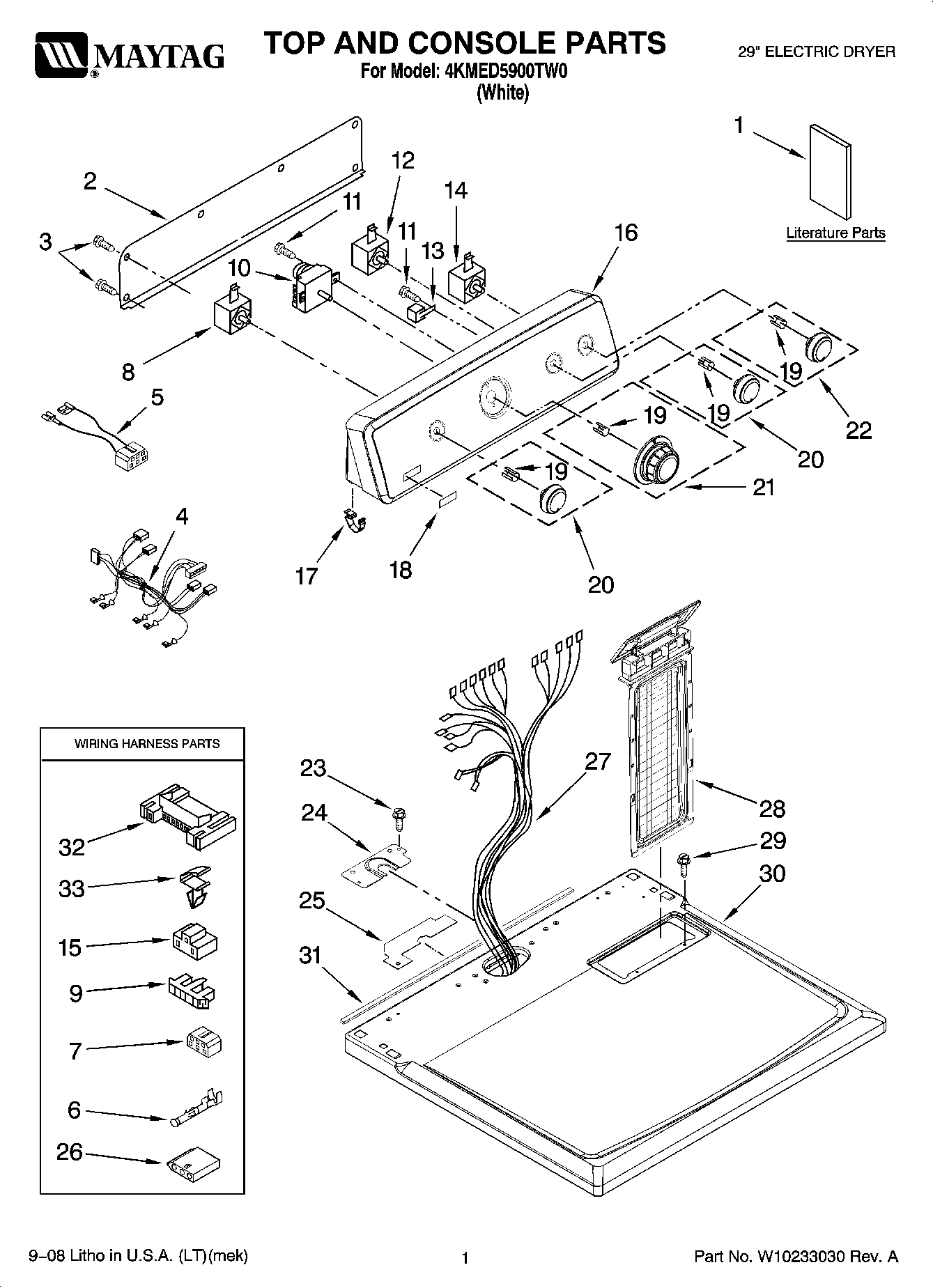

4KMED5900TW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH)
1GUIDE, USE & CARE (ARABIC)
1MAY W10131628
1MAY W10131627
2Panel, Rear
3Screw
4Harness, Wiring Center Control
5MAY W10110861
6Terminal
7Connector
8Switch, Wrinkle Guard
9Connector-Timer
10MAY 3979617
11MAY 8533971
12Switch, Temperature
13MAY 3952439
14MAY W10119074
15Connector (PTS) Relay
16MAY W10115459
17MAY 8312709
18Badge
19CLIP, SPRING
20Knob, Control (3)
21Knob, Timer
22MAY W10110037
23Screw, 8-18 x 3/4
24MAY 8565981
25MAY W10118608
26MAY 3936144
27MAY W10110997
28Screen, Lint
29SCREW
30Top
31Seal, Foam Console Bracket
32CONNECTOR (MOTOR)
33CLIP, HARNESS
