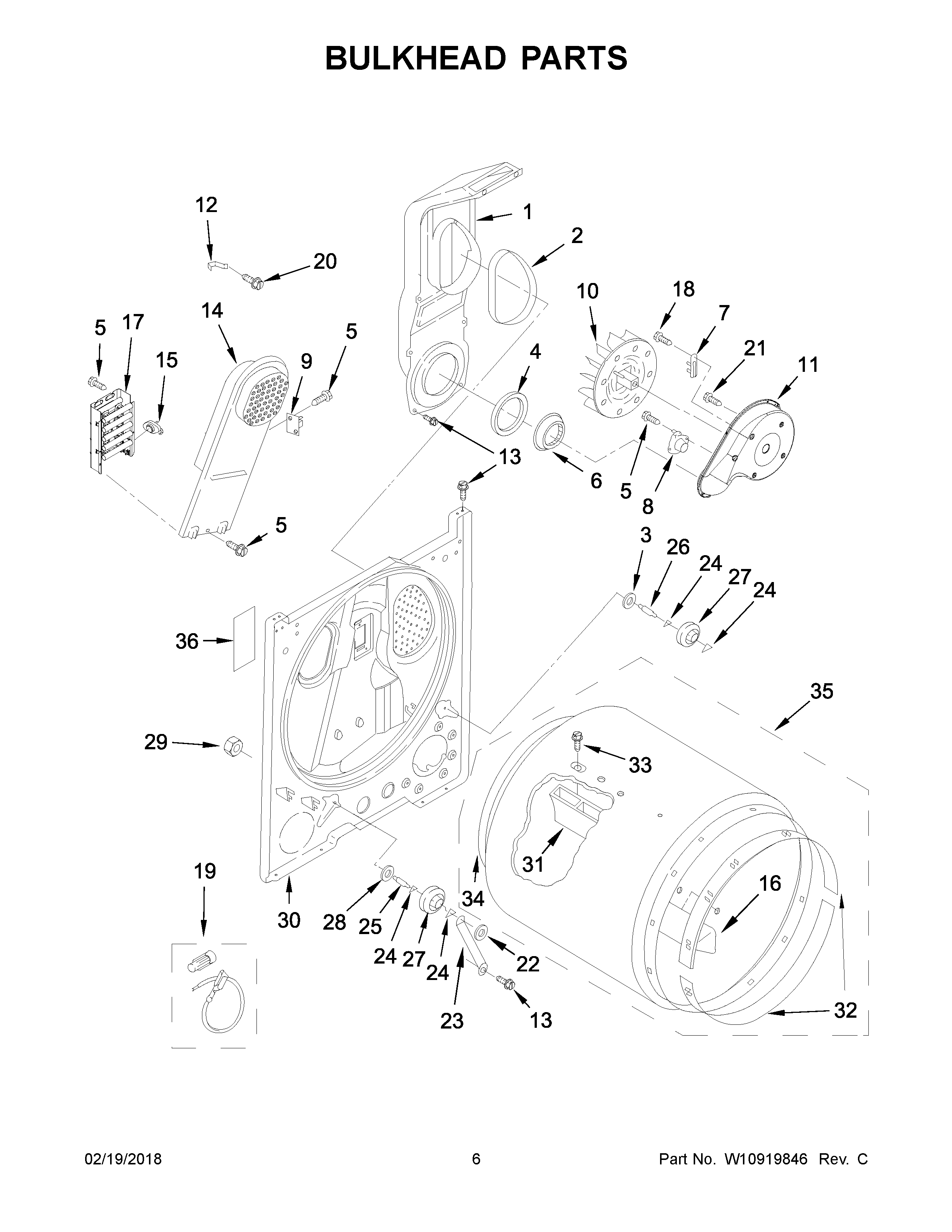

4KMEDC215FW0 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, LINT CHUTE
2	MAY 339956
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY W10389567
7	Fuse, Thermal (91 C)
8	THERMOSTAT, INTERNAL BIAS
9	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
10	Wheel, Blower
11	MAY 8577230
12	MAY W11102319
13	SCREW
14	MAY 8541818
15	MAY 3977767
16	BAFFLE, DRUM (SHORT)
17	ELEMENT, HEATER
18	SCREW, 10-16 X 1/2
19	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20	Screw
21	SCREW
22	NUT, PUSH ON
23	BRACKET, SUPPORT
24	WASHER, TRI RING
25	MAY W10359270
26	MAY W10359269
27	MAY 3397590
28	WASHER
29	MAY W10298789
30	BULKHEAD
31	BAFFLE, DRUM (LONG)
32	Bearing, Ring
33	MAY W10219342
34	SEAL, REAR DRUM
35	ASSEMBLY, DRUM (COMPLETE)
36	PAD, FOAM
