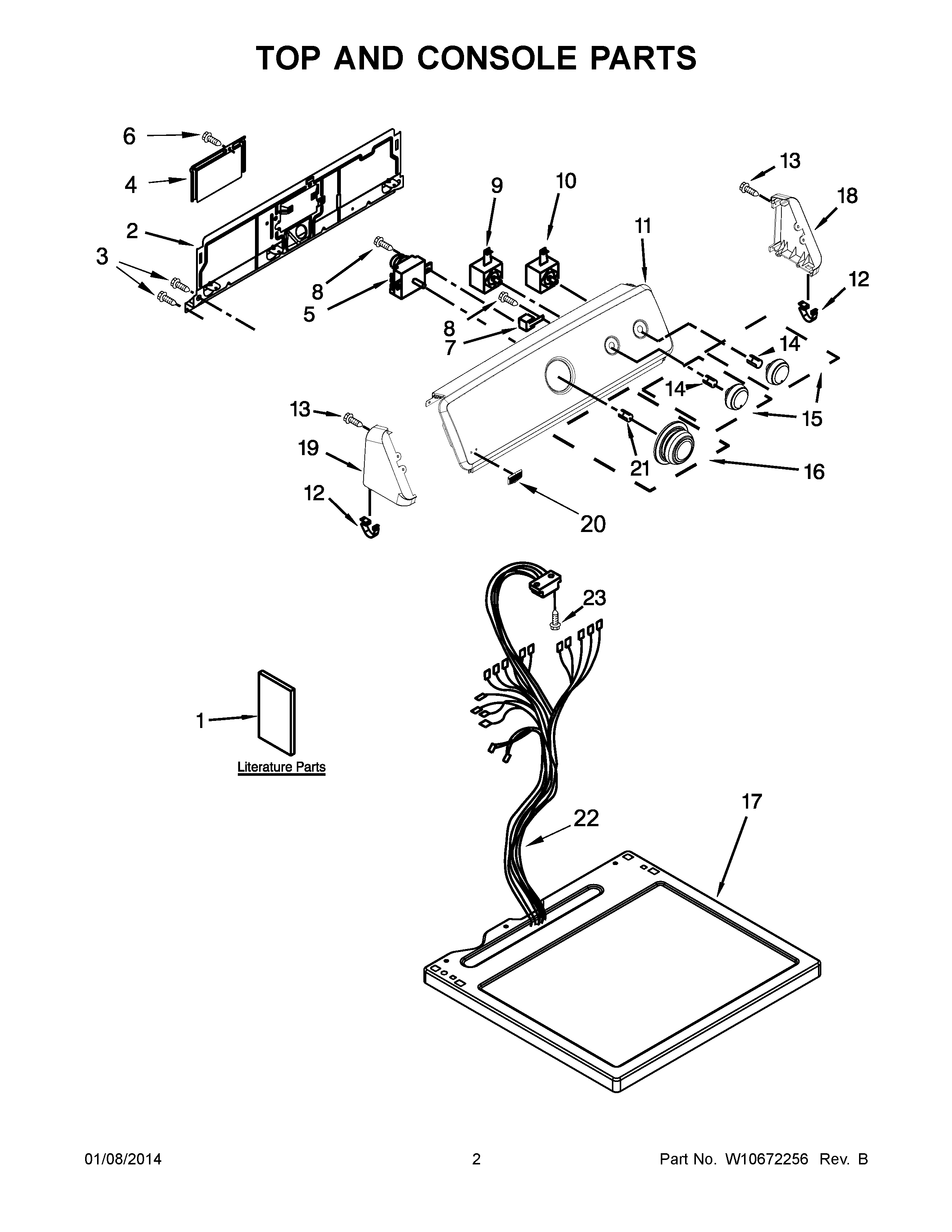

4KMEDC300BW0 02 – TOP AND CONSOLE PARTS

4KMEDC300BW0 02 – TOP AND CONSOLE PARTS

Written by

in

4KMEDC300BW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10631595
1	MAY W10629448
1	MAY W10629455
2	MAY W10121161
3	Screw
4	MAY W10601020
5	MAY 3979617
6	SCREW
7	MAY 3952439
8	MAY 8533971
9	Switch, Temperature
10	MAY W10112668
11	MAY W10598015
12	MAY 8312709
13	MAY 3348629
14	CLIP, SPRING
15	ASSEMBLY, CONTROL KNOB (GREY)
16	ASSEMBLY, KNOB & DIAL (GREY)
17	TOP
18	Endcap (R.H.)
19	Endcap (L.H.)
20	MAY W10323734
21	Spring, Clip Knob
22	MAY W10599164
23	SCREW
