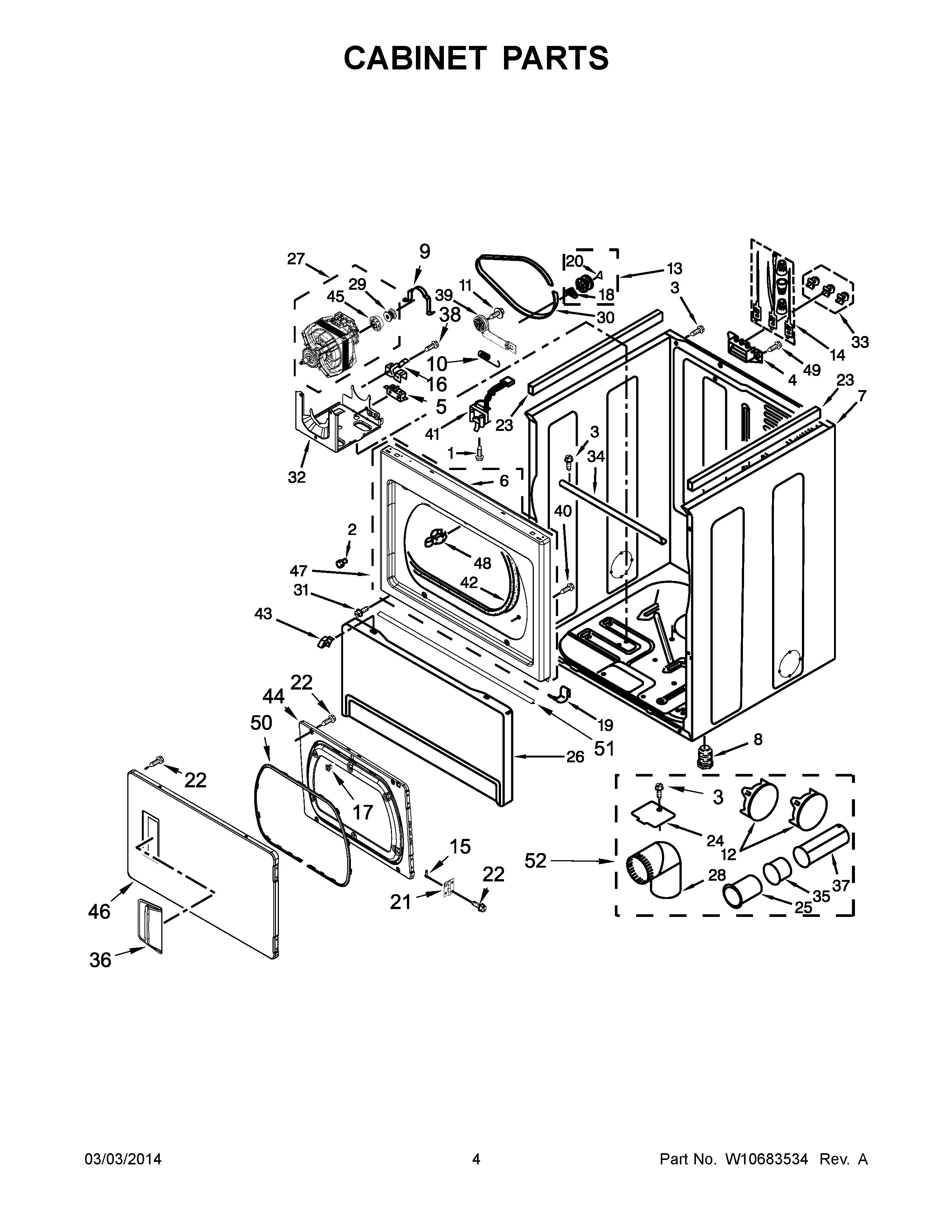

4KMEDC300BW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	SCREW
4	MAY 3397659
5	MAY 8318457
6	SEAL-FOAM (IEC)
7	MAY W10547697
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	PLUG, HINGE SCREW
16	Lever, Snap Switch
17	MAY 3392538
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	ASSEMBLY, HINGE & PIN (SILVER)
22	MAY 342055
23	SEAL, FOAM
24	MAY W10354249
25	PIPE, EXHAUST (MEDIUM)
26	Toe Panel (Includes Item. 2) (White)
27	MAY W10489550
28	MAY 49026
29	MAY 3389729
30	MAY W10112954
31	Screw
32	MAY 3387118
33	MAY 279393
34	BRACKET, CABINET
35	PIPE, EXHAUST (SHORT)
36	Handle, Door (White)
37	PIPE, EXHAUST (LONG)
38	SCREW
39	ASSEMBLY, IDLER
40	SCREW
41	MAY W10237959
42	MAY 3387242
43	RETAINER
44	MAY W10323061
45	MAY 3393657
46	DOOR, FRONT
47	Upper Front Panel (White)
48	MAY 696144
49	SCREW, 10-16 X 1/2
50	MAY 3390735
51	MAY W10576519
52	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
