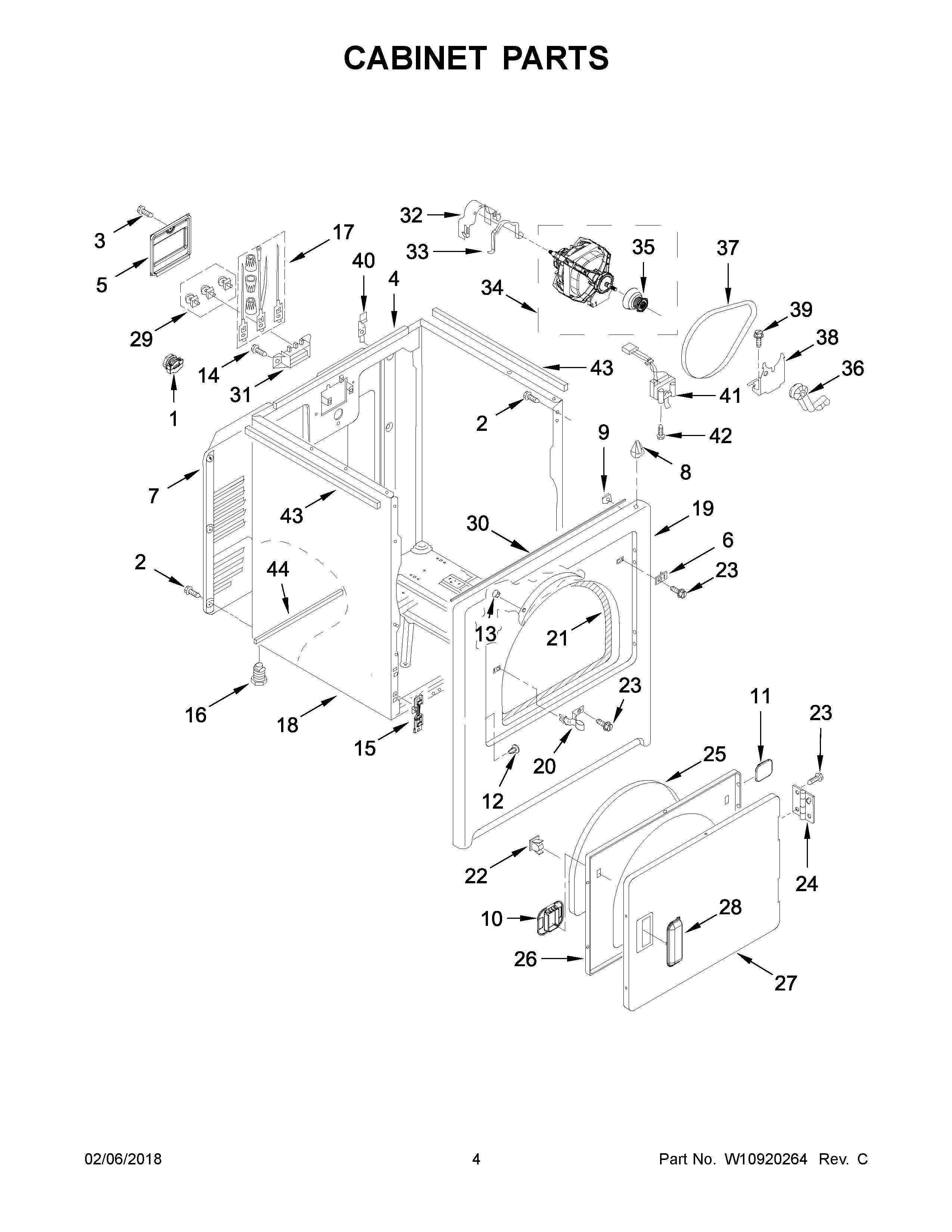

4KMEDC315FW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Clip, Strain Relief
3	Screw
4	MAY W10316616
5	COVER, TERMINAL BLOCK
6	PLUG, STRIKE
7	PANEL. REAR
8	MAY 8066092
9	Clip, Ground
10	BEZEL, DOOR CATCH
11	COVER, DOOR CATCH
12	PLUG, HINGE HOLES
13	Clip, Felt Pad
14	SCREW
15	CLIP, FRONT PANEL
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	PANEL, FRONT (WHITE)
20	Strike, Door
21	ASSEMBLY, SEAL AND BEARING
22	MAY W10610880
23	MAY 342055
24	ASSEMBLY, HINGE AND PIN
25	SEAL, DOOR
26	DOOR, INNER
27	DOOR, FRONT (WHITE)
28	HANDLE, DOOR (WHITE)
29	MAY 279393
30	SEAL, SPILL GUARD
31	MAY 3397659
32	Clamp, Motor (With Shield)
33	CLAMP, MOTOR MOUNT
34	ASSEMBLY, MOTOR (50 HZ)
35	PULLEY
36	IDLER ASSEMBLY
37	BELT, DRIVE
38	MAY 348780
39	BOLT
40	Hinge, Top
41	MAY W10237959
42	SCREW
43	SEAL, FOAM
44	MAY W11172310
