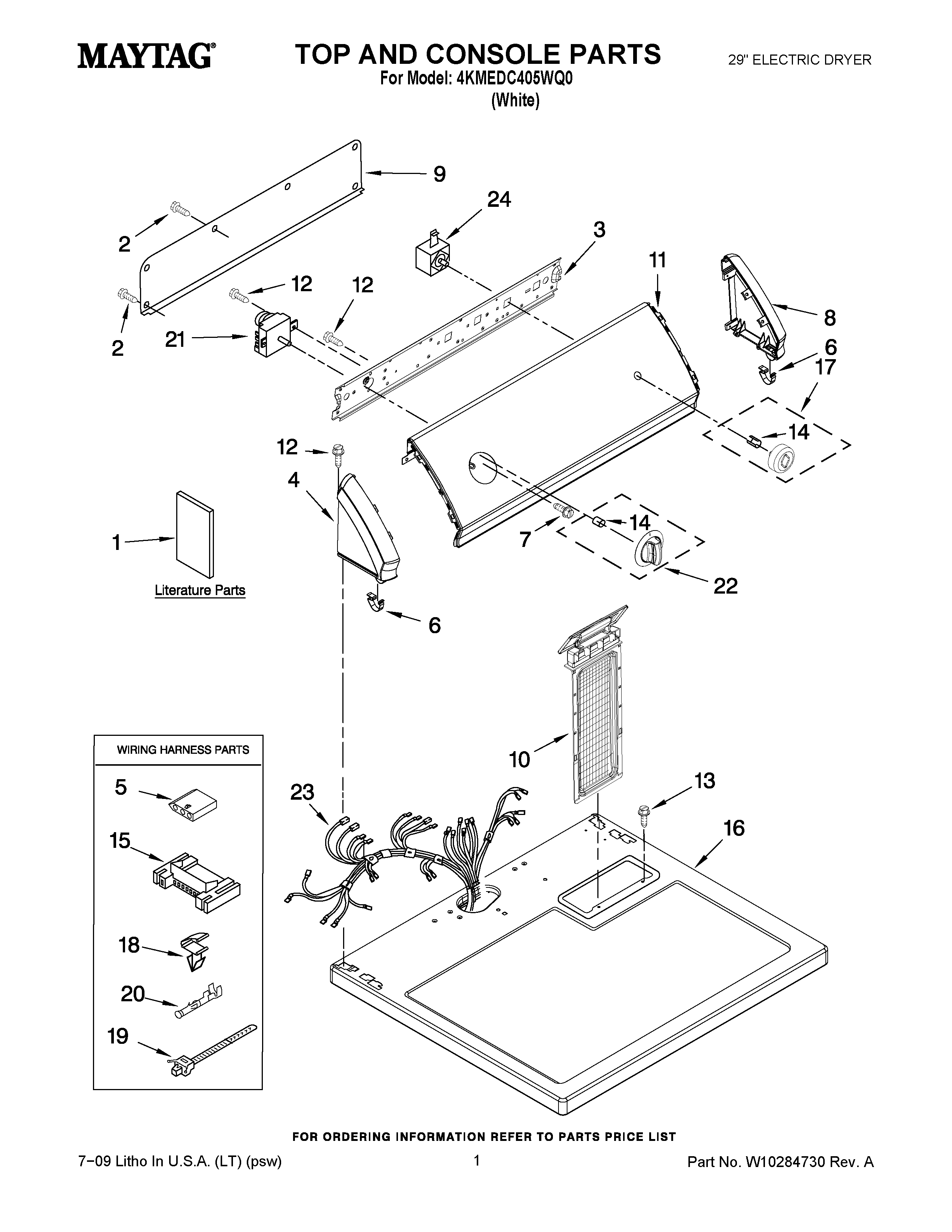

4KMEDC405WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10167647
1GUIDE, USE & CARE (ARABIC)
1GUIDE, USE & CARE (ENGLISH)
1MAY W10115531
2Screw
3MAY 8559772
4ENDCAP ASSEMBLY, LEFT HAND (WHITE)
5MAY 3936144
6MAY 8312709
7MAY 8533951
8ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
9MAY 8274261
10LINT SCREEN WHITE
11MAY W10115462
12MAY 8533971
13SCREW
14CLIP, SPRING
15CONNECTOR (MOTOR)
16MAY 8559800
17MAY 3956790
18CLIP, HARNESS
19Tie, Cable
20Terminal
21MAY 8299781
22MAY 8571409
23MAY W10267858
24MAY 3977456
