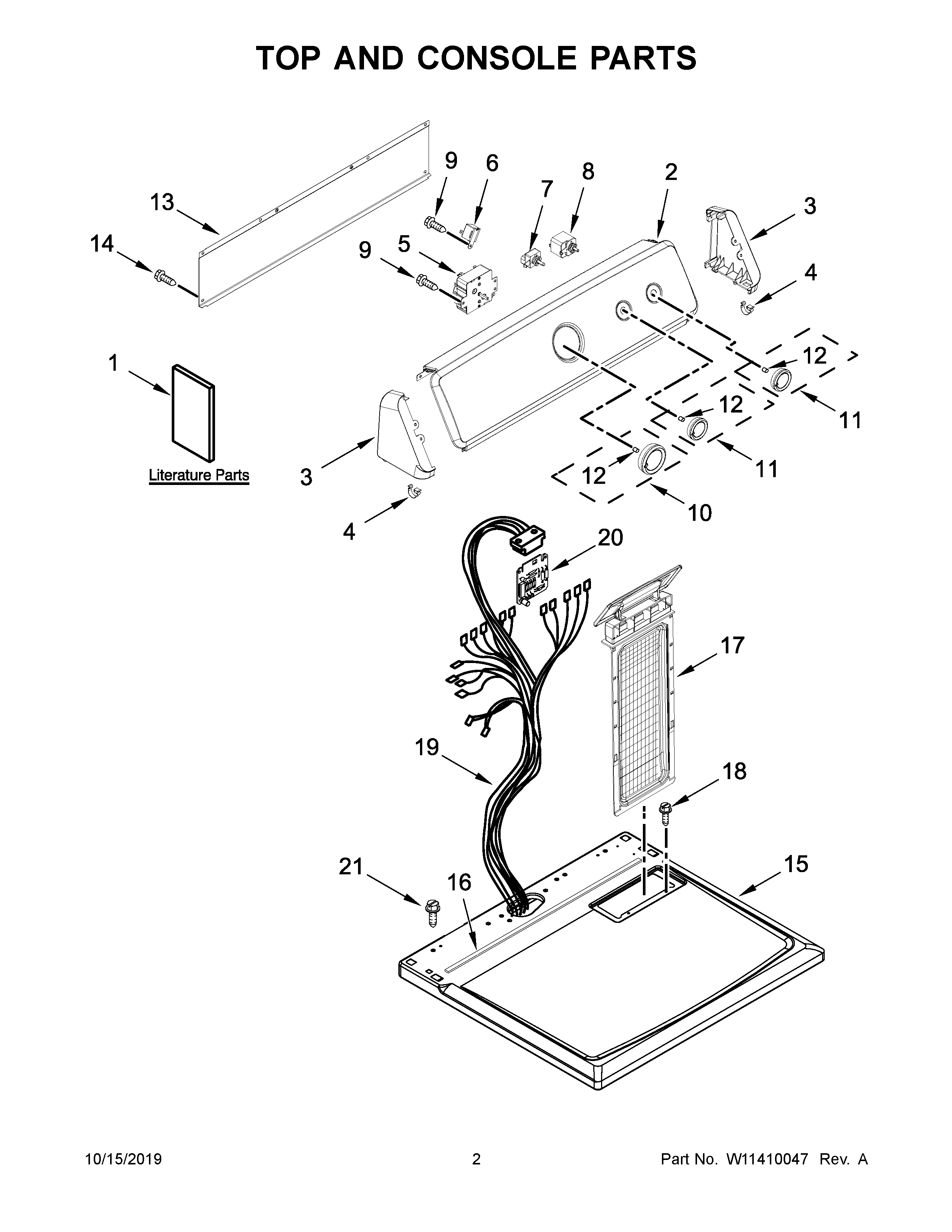

4KMEDC420JW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W11365372
1A	MAY W11399547
1	MAY W11387407
2	ASSEMBLY, PANEL & BRACKET (WHITE)
3	END CAP (RIGHT) (WHITE)
3A	END CAP (LEFT) (WHITE)
4	MAY 8312709
5	TIMER, 60 HZ.
6	MAY 3952439
7	Switch, (End Of Cycle)
8	SWITCH, PUSH TO START
9	MAY 3348629
10	MAY W10558463
11	MAY W10562155
12	Spring, Clip Knob
13	MAY W10103406
14	Screw
15	MAY 8559800
16	MAY W10316616
17	MAY W10717210
18	SCREW
19	MAY W11352184
20	MAY W11387733
21	SCREW
