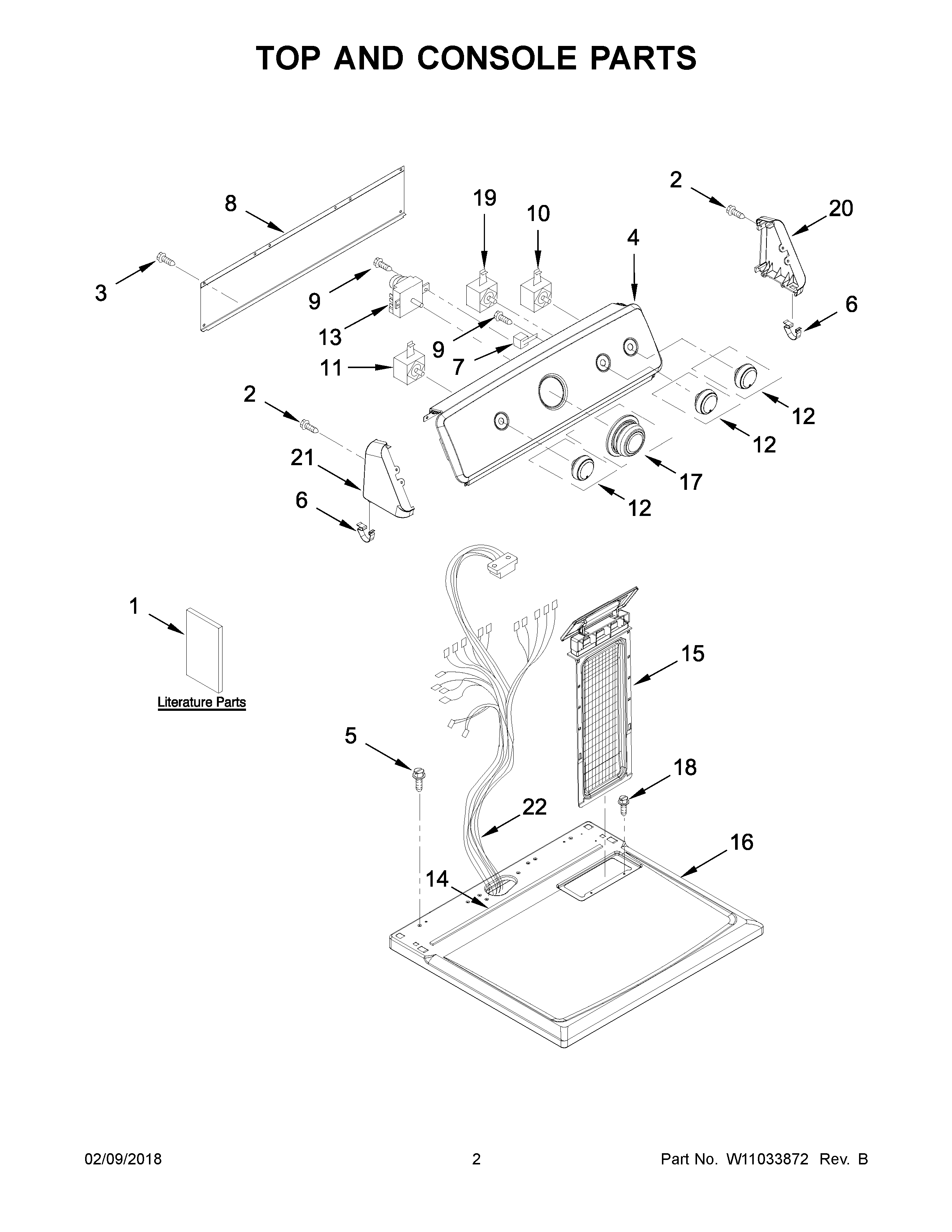

4KMEDC425FW0 02 – TOP AND CONSOLE PARTS

4KMEDC425FW0 02 – TOP AND CONSOLE PARTS

Written by

in

4KMEDC425FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AWIRING DIAGRAM
1BINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2MAY 8533971
3Screw
4ASSEMBLY, PANEL & BRACKET (WHITE)
5SCREW
6MAY 8312709
7MAY 3952439
8MAY W10103406
9MAY 3348629
10SWITCH, PUSH TO START
11Switch-Rotary
12MAY W10562155
13TIMER, 60 HZ.
14MAY W10316616
15MAY W10717210
16MAY 8559800
17MAY W10558463
18SCREW
19SWITCH, ROTARY (2 POS)
20END CAP (RIGHT) (WHITE)
21END CAP (LEFT) (WHITE)
22HARNESS, WIRE
