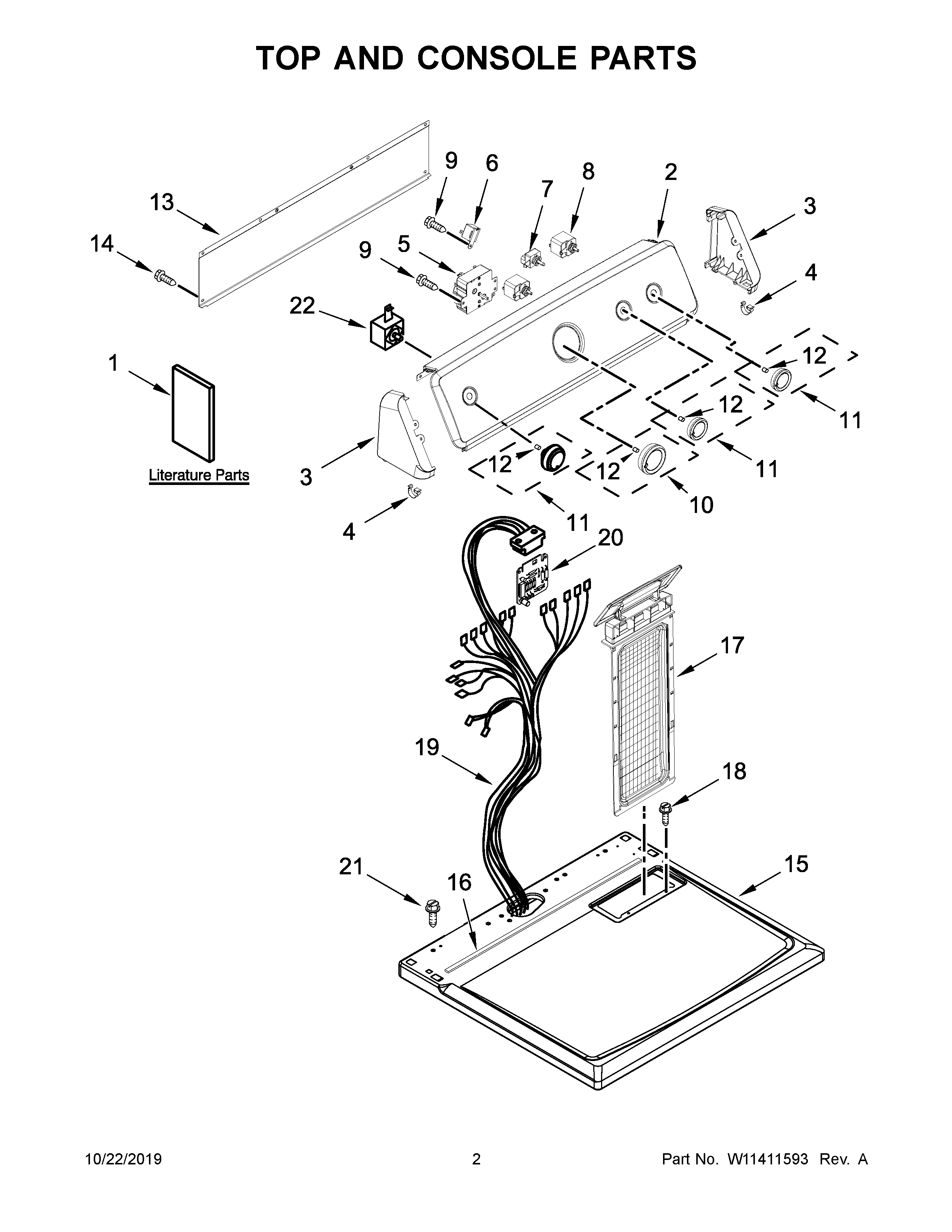

4KMEDC430JW0 02 – TOP AND CONSOLE PARTS
Written by
in
4KMEDC430JW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1B
MAY W11366266
1A
MAY W11399547
1
MAY W11387407
2
MAY W10804424
3A
END CAP (LEFT) (WHITE)
3
END CAP (RIGHT) (WHITE)
4
MAY 8312709
5
TIMER, 60 HZ.
6
MAY 3952439
7
Switch, (End Of Cycle)
8
SWITCH, PUSH TO START
9
MAY 3348629
10
MAY W10558463
11
MAY W10562155
12
Spring, Clip Knob
13
MAY W10103406
14
Screw
15
MAY 8559800
16
MAY W10316616
17
MAY W10717210
18
SCREW
19
MAY W11352186
20
MAY W11387733
21
SCREW
22
Switch-Rotary
←
