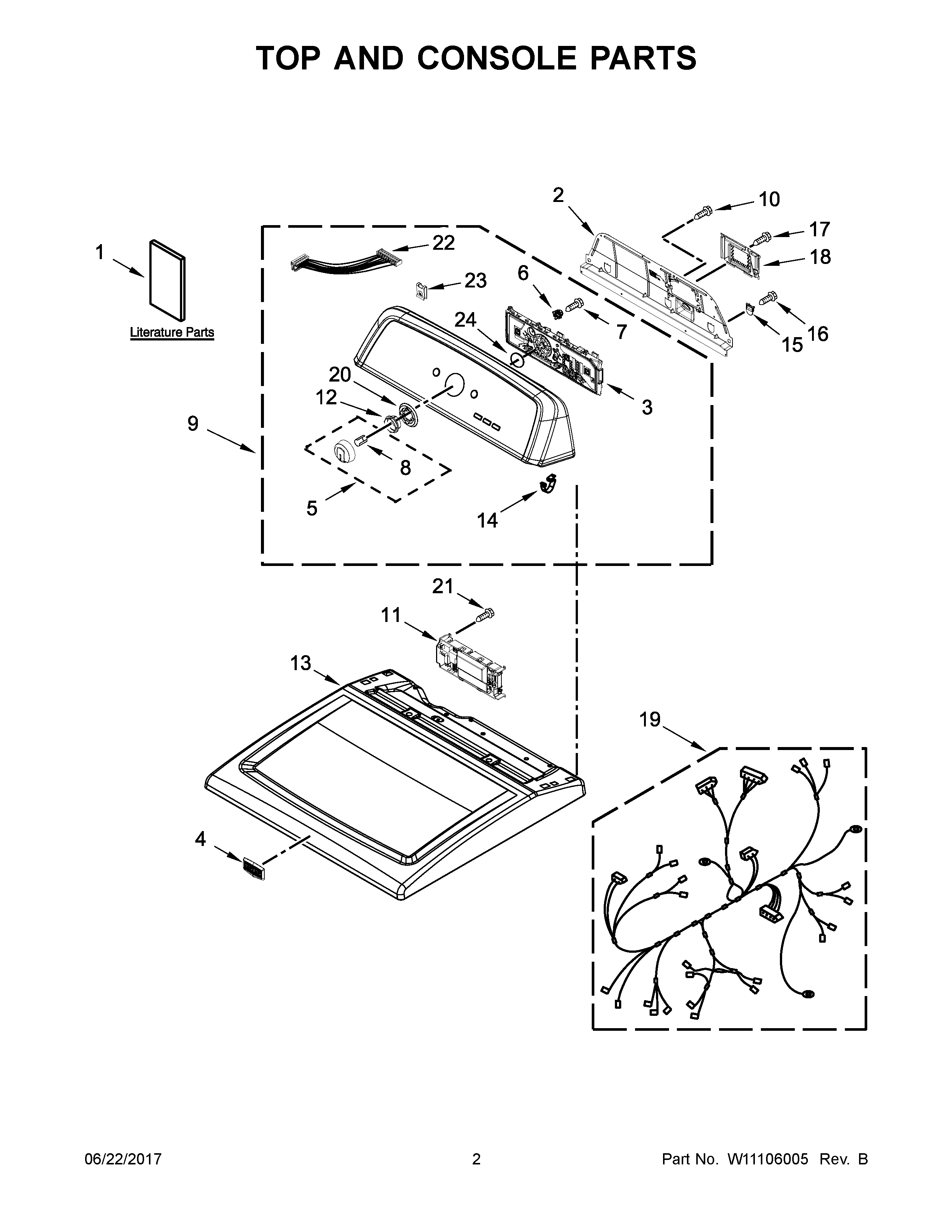

4KMEDX505BW1 02 – TOP AND CONSOLE PARTS

4KMEDX505BW1 02 – TOP AND CONSOLE PARTS

Written by

in

4KMEDX505BW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1BTECH SHEET
1AGUIDE, USE & CARE
2MAY W10550615
3ASSEMBLY, USER INTERFACE
4MAY W10492808
5MAY W10251381
6TENSIONER, FASCIA
7MAY W10219342
8CLIP, SPRING
9MAY W10464793
11CONTROL, ELECTRONIC
12MAY W10326923
13MAY W10268730
14MAY 8312709
15PLUG, UPPER REAR PANEL
16SCREW
17SCREW
18MAY W10601020
19HARNESS, MAIN
20MAY W10305134
21MAY 8533971
22CABLE, USER INTERFACE
23NUT, "U"
24SEAL, USER INTERFACE
25SCREW
