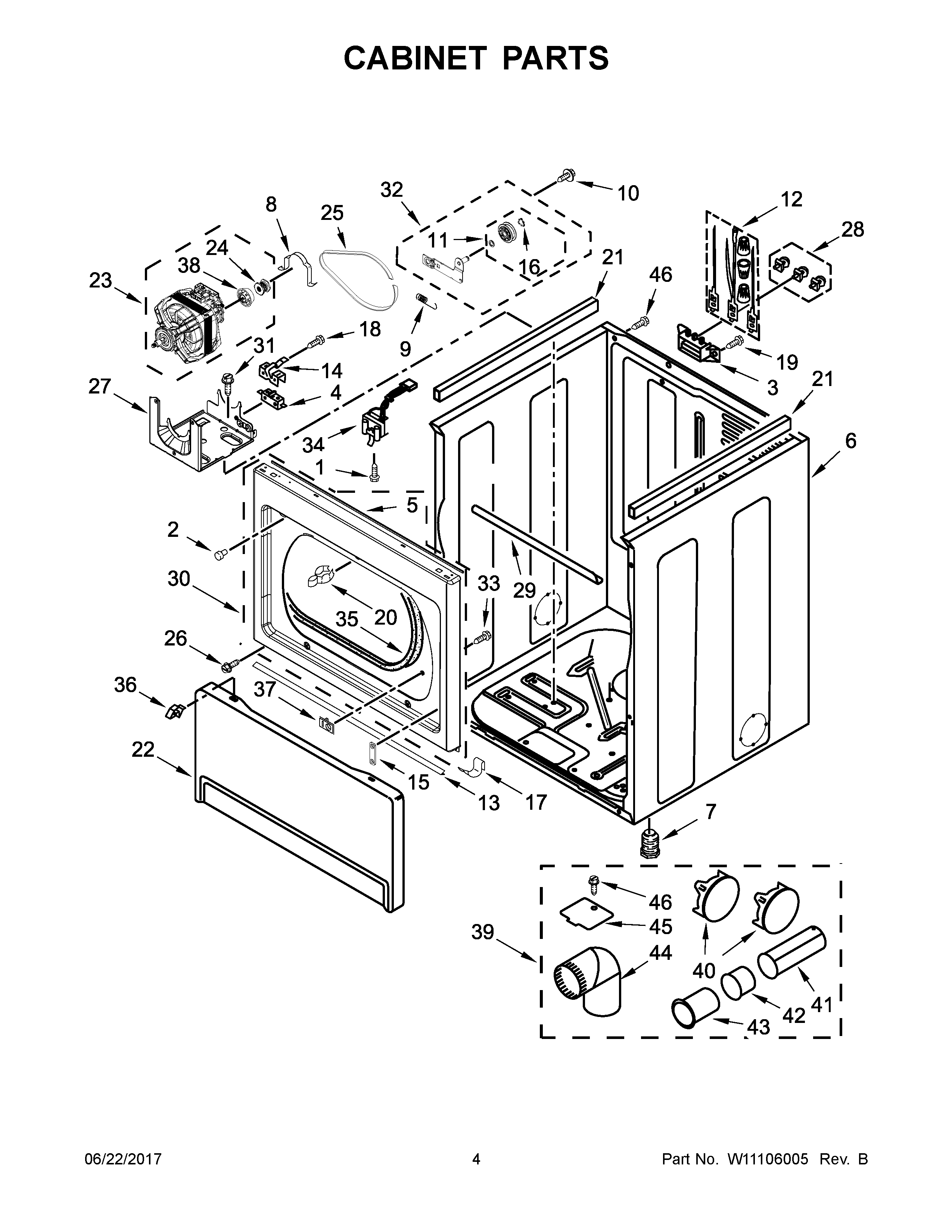

4KMEDX505BW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	BUMPER
3	MAY 3397659
4	MAY 8318457
5	SEAL, SPILL GUARD
6	MAY W10547697
7	MAY 3392100
8	MAY 660658
9	MAY W10446781
10	SCREW
11	MAY W10468057
12	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
13	MAY W10576519
14	Lever, Snap Switch
15	PLUG, HINGE SCREW
16	WASHER, TRI RING
17	CLIP
18	SCREW
19	SCREW, 10-16 X 1/2
20	Strike, Door
21	SEAL, FOAM
22	Toe Panel (Includes Item. 2) (White)
23	MAY W10489550
24	MAY 3389729
25	MAY W10112954
26	Screw
27	MAY 3387118
28	MAY 279393
29	BRACKET, CABINET
30	MAY W10362983
31	SCREW
32	ASSEMBLY, IDLER
33	SCREW
34	MAY 3406109
35	MAY 3387242
36	RETAINER
37	COVER, STRIKE (WHITE)
38	MAY 3393657
39	DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) (MIDNIGHT GREY)
40	PLUG, MULTIVENT (MIDNIGHT GREY)
41	PIPE, EXHAUST (LONG)
42	PIPE, EXHAUST (SHORT)
43	PIPE, EXHAUST (MEDIUM)
44	MAY 49026
45	MAY W10354249
46	SCREW
