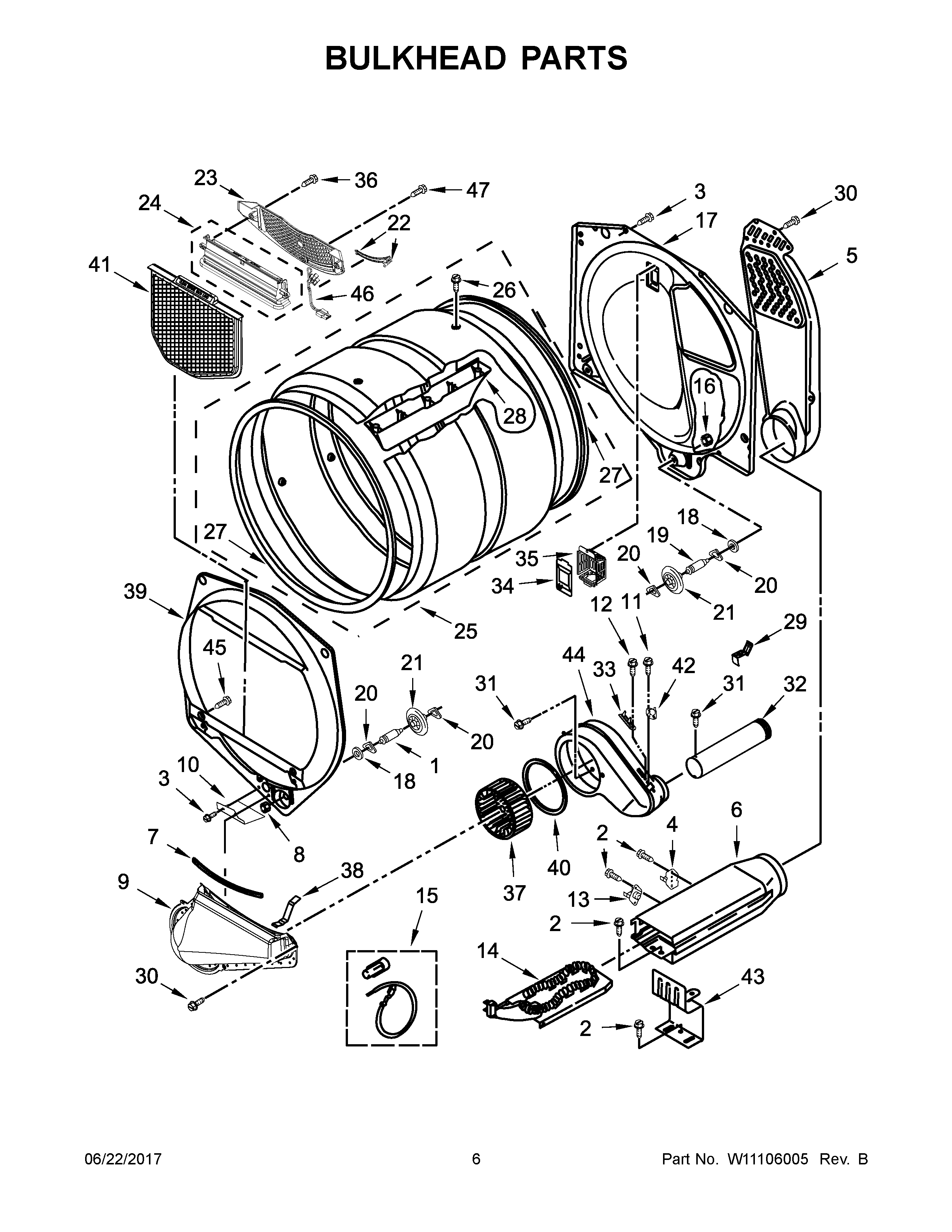

4KMEDX505BW1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW,8-18 X 3/8
3	SCREW
4	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
5	ASSEMBLY, AIR DUCT
6	ASSEMBLY, WELD HEATER BOX
7	MAY 697814
8	NUT, HEX
9	Lint Duct Assembly
10	MAY W10128629
12	MAY 359625
13	MAY 3391914
14	ELEMENT, HEATER
15	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	SENSOR, ELECTRODE
23	GRILL, OUTLET
24	ASSEMBLY, OUTLET HOUSING
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	BAFFLE, DRUM
29	CLIP, EXHAUST
30	MAY 8533971
31	Screw
32	PIPE, EXHAUST
33	THERMISTOR
34	MAY 3402841
35	MAY 8578825
36	SCREW
37	MAY W10349492
38	CLIP, SPRING
39	BULKHEAD, FRONT
40	SEAL, PLATE COVER
41	LINT SCREEN (WHITE)
42	Fuse, Thermal (91 C)
43	MAY 8066099
44	MAY 8544362
45	Screw, 8-18 x 1/2
46	MAY W10298258
47	SCREW
