4KMER7600AW0 02 – COOKTOP PARTS
Written by
in

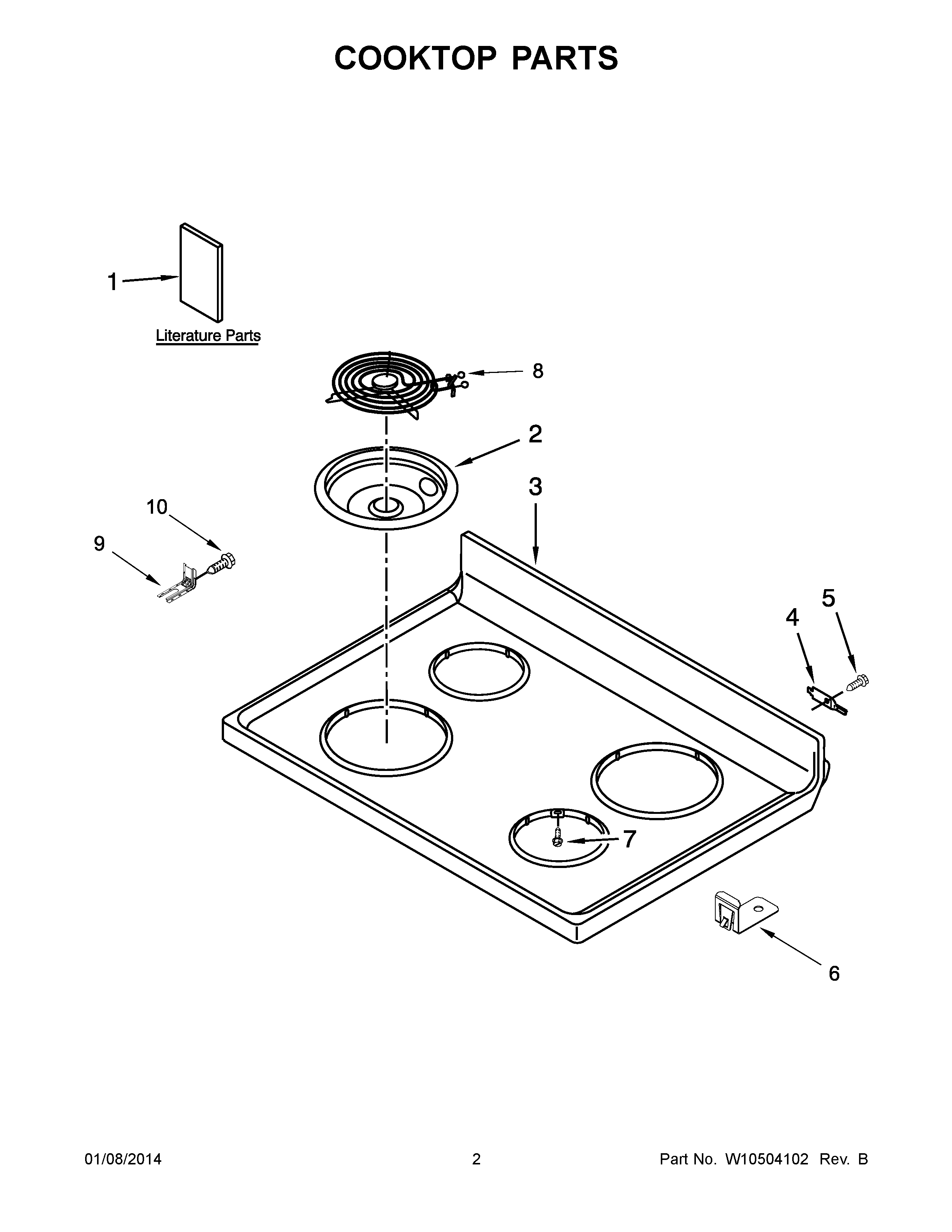

4KMER7600AW0 02 – COOKTOP PARTS
Products
Position
Product
1
TIPS, SAFE COOKING (ENGLISH)
1
SHEET, TECH (ARABIC)
1
MAY W10464420
1
MAY W10394782
1
SHEET, TECH (ENGLISH)
2
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3
COOKTOP (WHITE)
4
HINGE, COOKTOP
5
SCREW
6
CLIP, COOKTOP
7
SCREW
8
ELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
8
ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
9
BRACKET, ANTI-TIP
10
SCREW, ANTI-TIP KIT
←
