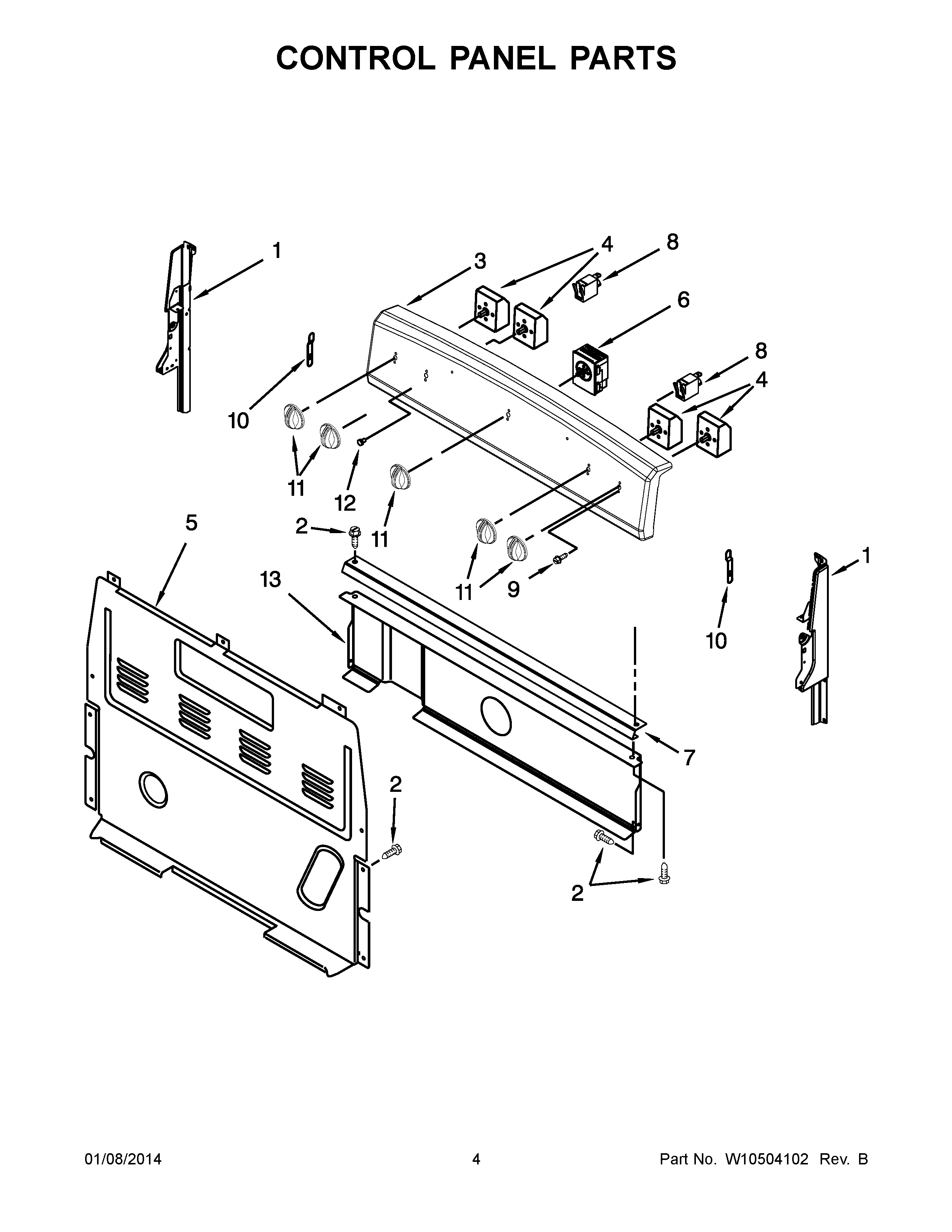

4KMER7600AW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
2SCREW
3SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
3MAY W10489059
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5COVER, UPPER REAR
6CNTRL-ELEC ROC70
7BRACKET, CONSOLE MOUNTING
8MAY 8523266
9SCREW
10CLIP, SPRING
11KNOB, INFINITE (WHITE)
12MAY 3196068
13SHIELD, HEAT
