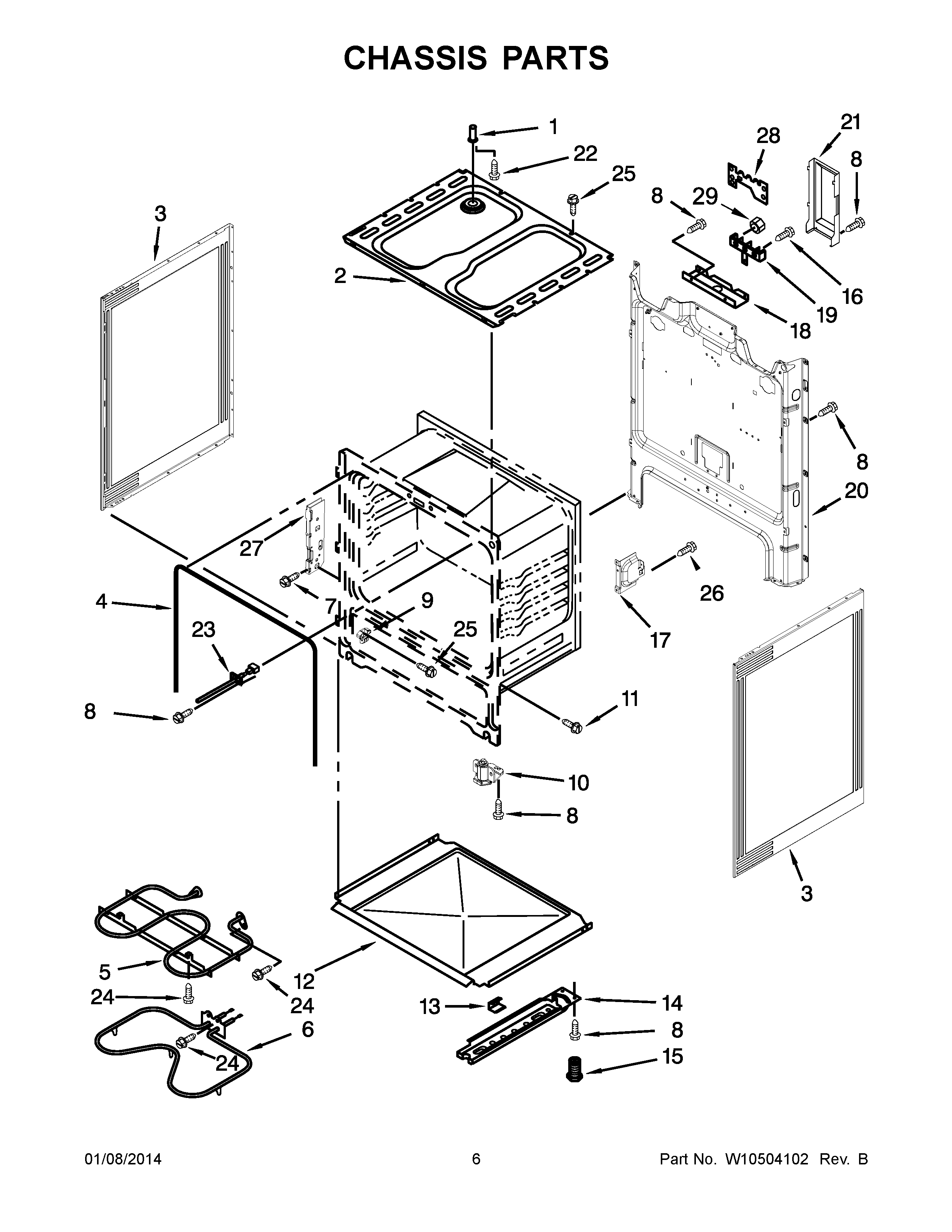

4KMER7600AW0 04 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAP
NI	INSULATION, BACK
NI	KIT, BARE WIRE ADAPTER BLOCK
1	MAY 3169143
2	BOX, BURNER
3	MAY W10322769
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	SCREW
9	GLIDE, DRAWER
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	RETAINER, INSULATION
13	CLIP, PANEL
14	ASSEMBLY, BASE RAIL (LEFT)
14	ASSEMBLY, BASE RAIL (RIGHT)
15	FOOT, LEVELING
16	SCREW
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	COVER, TERMINAL BLOCK
22	SCREW
23	SENSOR, OVEN
24	SCREW
25	SCREW
26	SCREW
27	RECEIVER, HINGE
28	MAY W10451176
29	WP7103P027-60 Whirlpool Nut
