4KMER7600AW0 06 – DOOR PARTS

4KMER7600AW0 06 – DOOR PARTS

Written by

in

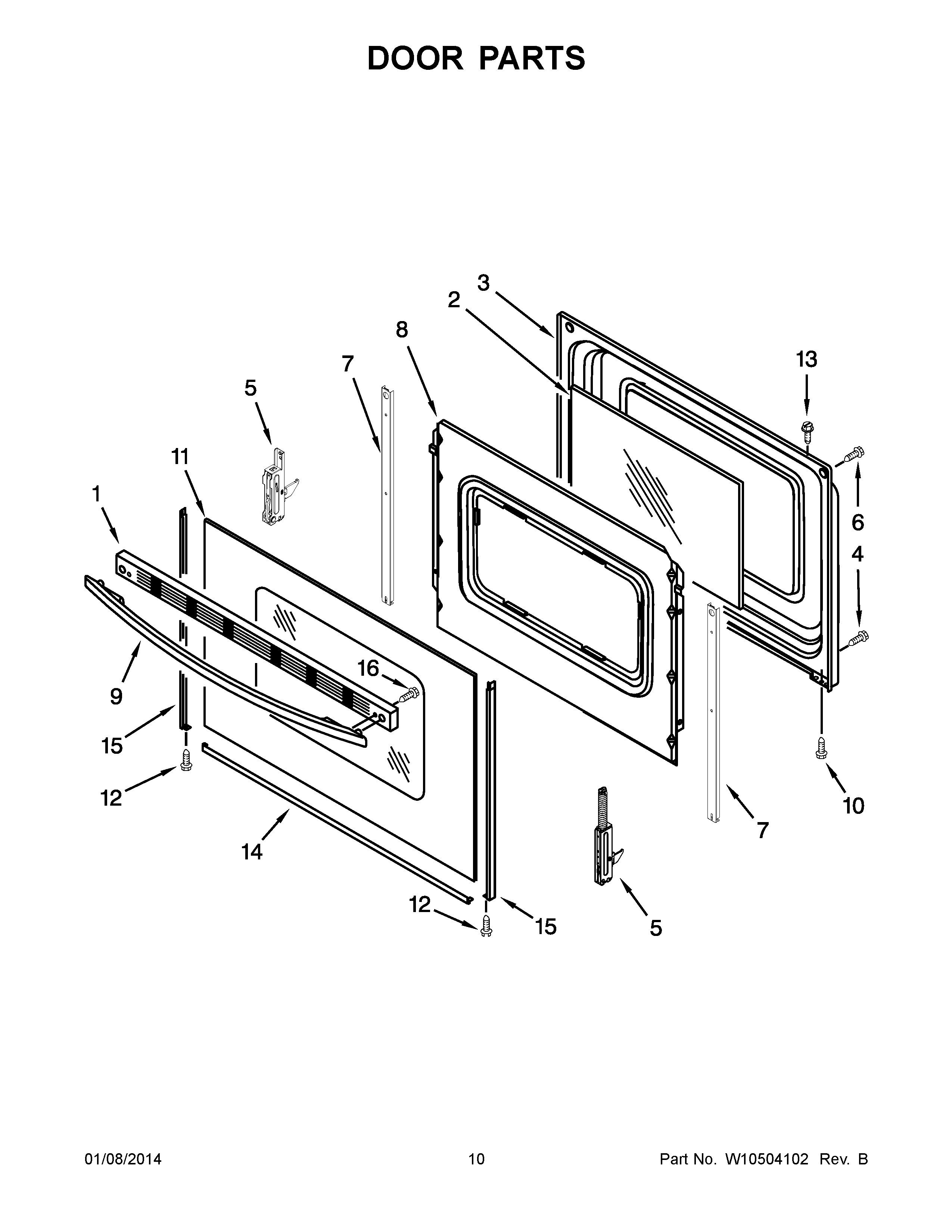

4KMER7600AW0 06 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (WHITE)
2	GLASS, INNER
3	LINER, DOOR
4	MAY W10031780
5	HINGE, DOOR (PASSIVE)
5	HINGE, ACTIVE
6	SCREW
7	STRAP, DOOR
8	RETAINER, INSULATION
9	MAY W10323581
10	MAY 3196160
11	GLASS, OUTER (WHITE)
12	SCREW
13	SCREW
14	TRIM, LOWER (WHITE)
15	TRIM, SIDE (WHITE (RIGHT))
15	TRIM, SIDE (WHITE (LEFT))
16	SCREW
