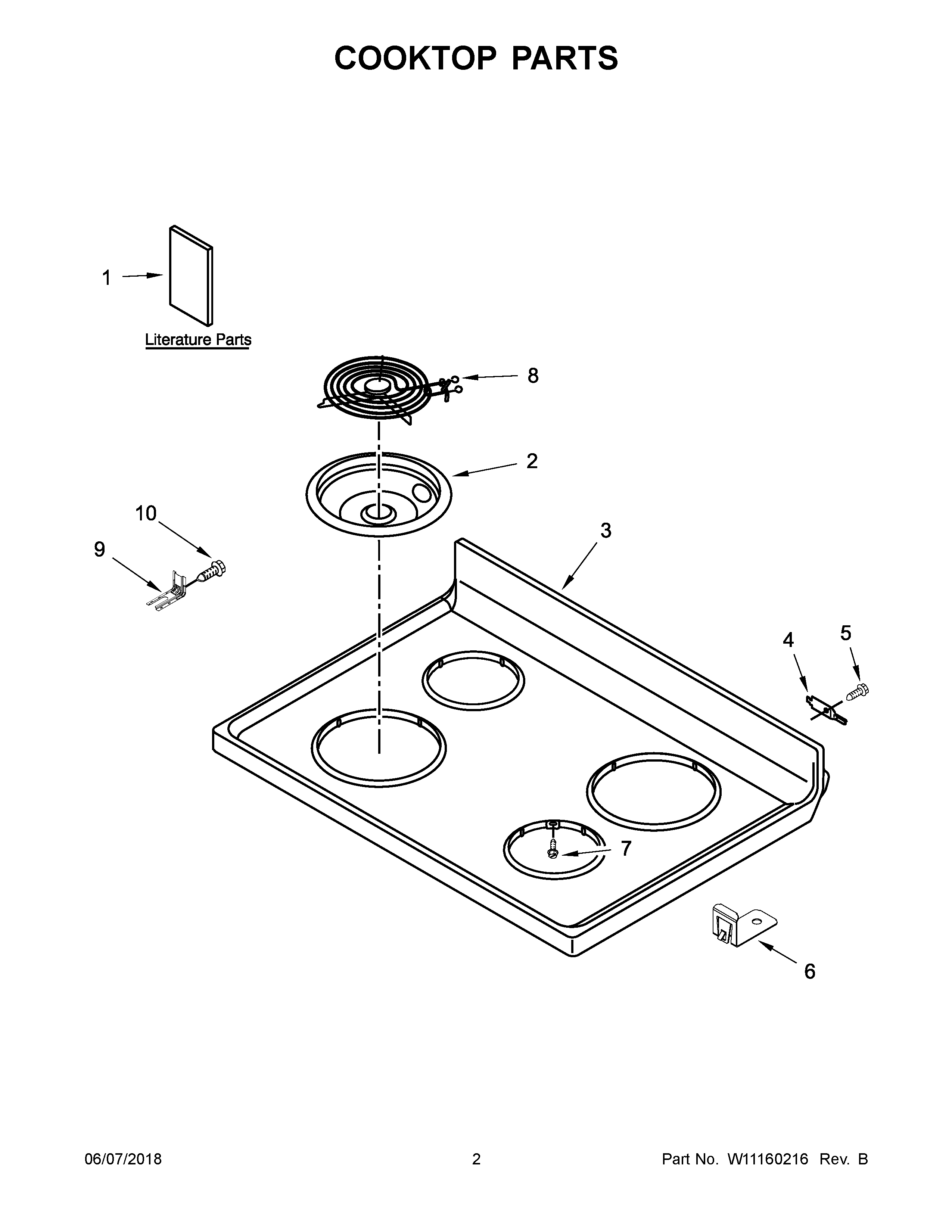

4KMER7600AW1 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (SURFACE UNIT)
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
1DSHEET, TECH (ENGLISH)
1INSTRUCTIONS, INSTALLATION (ENGLISH)
1AINSTRUCTIONS, INSTALLATION (ARABIC)
1BUSE AND CARE GUIDE (ENGLISH)
1CUSE AND CARE GUIDE (ARABIC)
1ESHEET, TECH (ARABIC)
2ABOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR)
2BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR)
3COOKTOP (WHITE)
4HINGE, COOKTOP
5SCREW
6CLIP, COOKTOP
7SCREW
8AELEMENT, SURFACE (8") (LEFT FRONT AND RIGHT REAR)
8ELEMENT, SURFACE (6") (RIGHT FRONT AND LEFT REAR)
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
