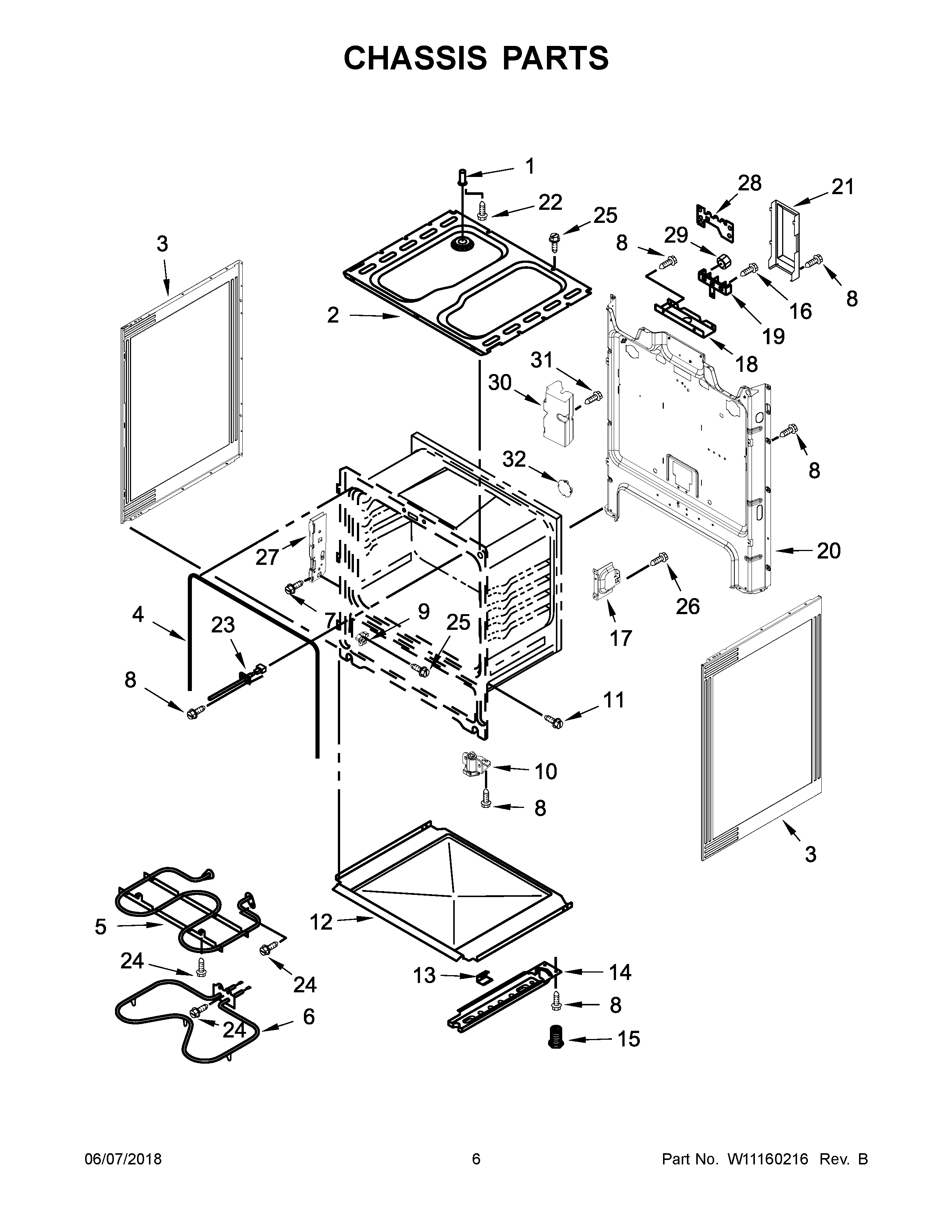

4KMER7600AW1 04 – CHASSIS PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	TUBE, VENT
2	BOX, BURNER
3	PANEL, SIDE (WHITE)
4	SEAL, DOOR
5	ELEMENT, BROIL
6	ELEMENT, BAKE
7	MAY W10031780
8	SCREW
9	GLIDE, DRAWER FRONT
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	RETAINER, INSULATION
13	CLIP, PANEL
14A	ASSEMBLY, BASE RAIL (LEFT)
14	ASSEMBLY, BASE RAIL (RIGHT)
15	FOOT, LEVELING
16	SCREW
17	CLIP, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	BACK, MAIN
21	COVER, TERMINAL BLOCK
22	SCREW
23	SENSOR, OVEN
24	SCREW
25	SCREW
26	SCREW
27	RECEIVER, HINGE
28	MAY W10451176
29	NUT
30	COUNTERWEIGHT
31	SCREW
32	HOLE, COVER LIGHT
