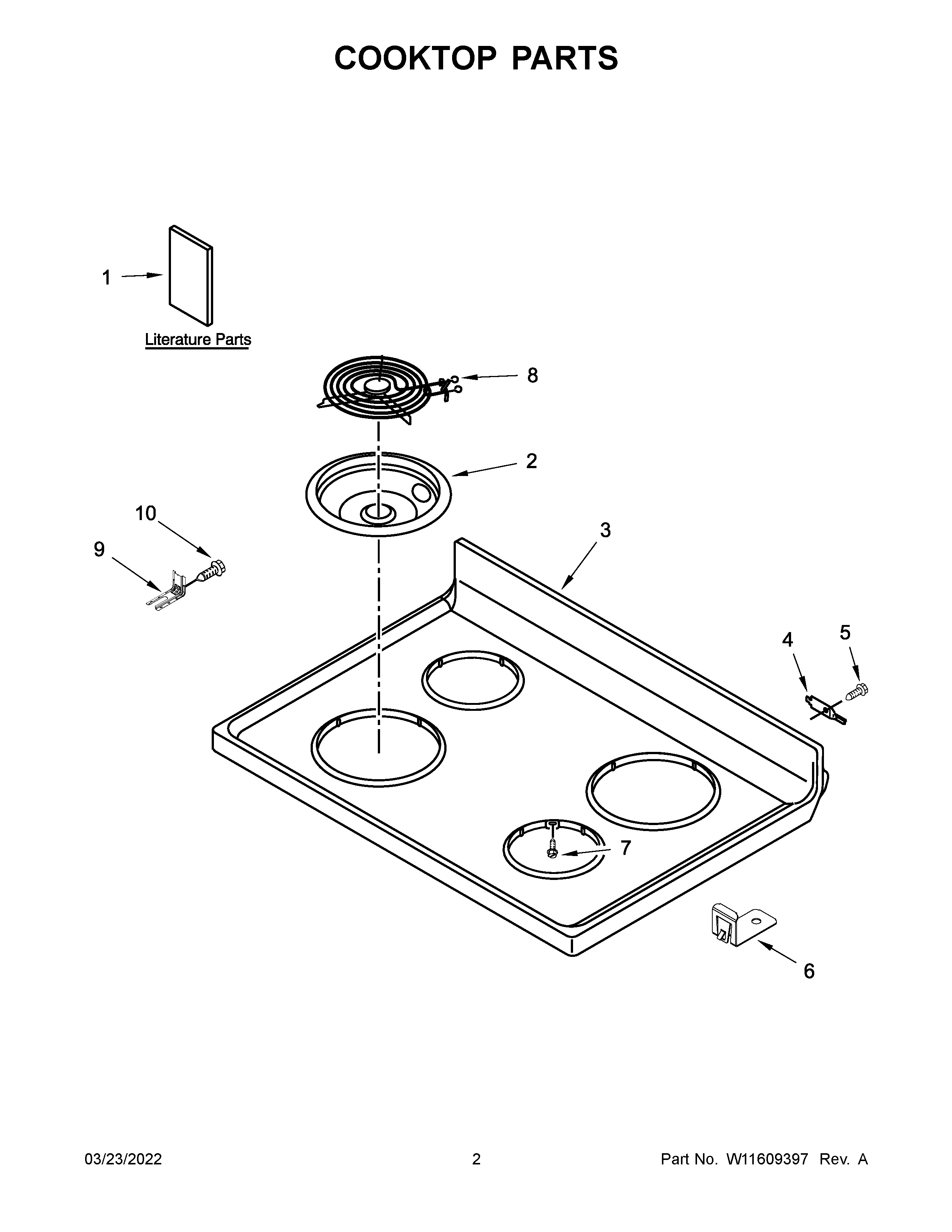

4KMER7600AW3 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, MAIN
NICABINET (NOT A SERVICEABLE PART)
NIW11396691 Whirlpool Element Receptacle and Wire Kit
1ETECH SHEET (ARABIC)
1INSTRUCTIONS, INSTALLATION (ENGLISH)
1AINSTRUCTIONS, INSTALLATION (ARABIC)
1BUSE AND CARE GUIDE (ENGLISH)
1CUSE AND CARE GUIDE (ARABIC)
1DTECH SHEET (ENGLISH)
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2ADRIP BOWL 8" W/HOLE CHROME
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6CLIP, COOKTOP
7WP3196154 Whirlpool Screw Assembly
8W11168414 Whirlpool Range 6" Surface Element
8AW11161939 Whirlpool Range Surface Element 8"
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
