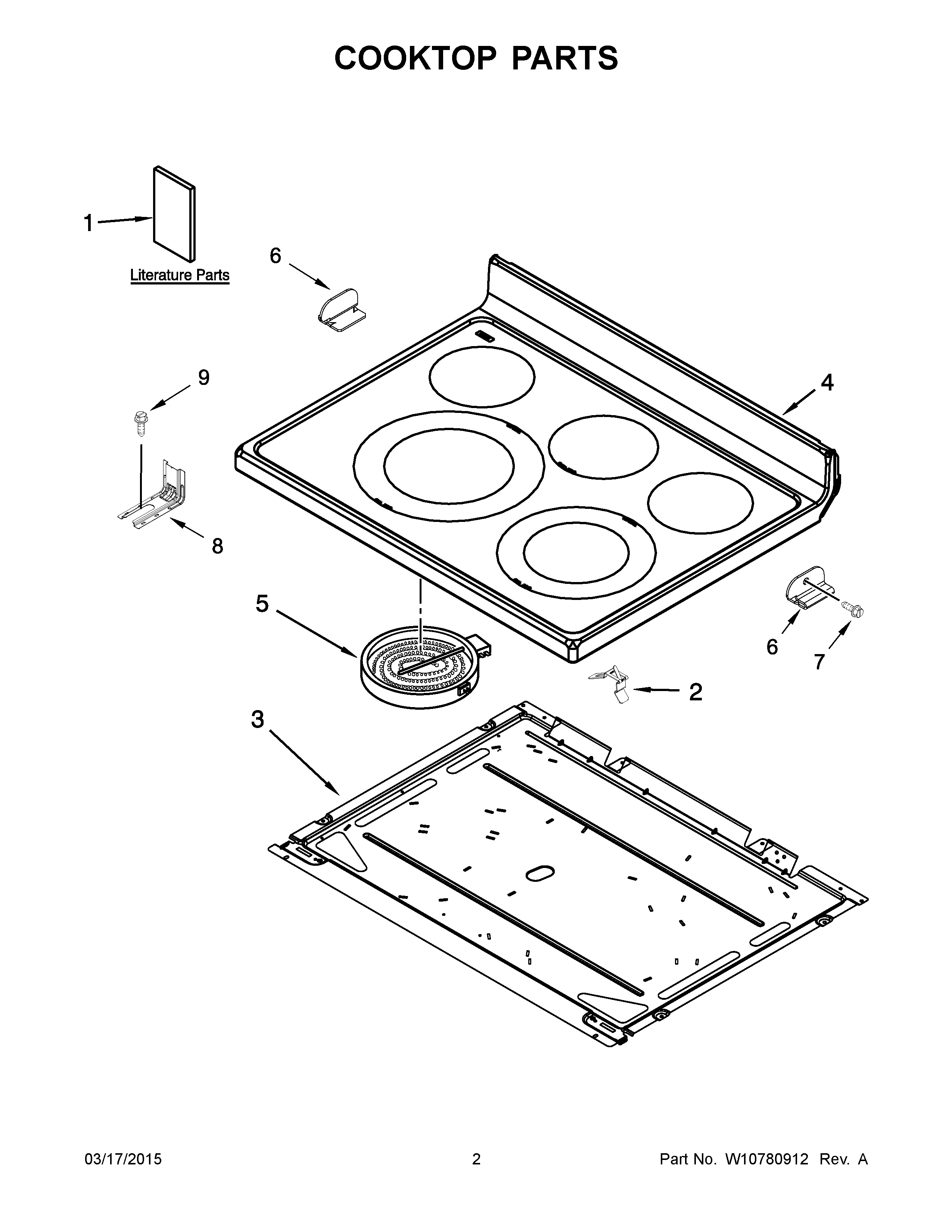

4KMER7685ES0 02 – COOKTOP PARTS

Products

PositionProduct
NIHARNESS, WIRE (CERAN)
NIMAY W10084660
NILINER (NOT A SERVICEABLE PART)
NIMAY W10744973
NIHARNESS, HIDDEN BAKE
NIWIRING HARNESS PARTS, HARNESS, WIRE COOKTOP LEFT
NIMAY W10261085
NICLIP, WIRE
1CTemplate, Anti-Tip (English/French)
1BMAY W10403811
1ETIPS, SAFE COOKING (ENGLISH)
1OWNER’S MANUAL
1AMAY W10720111
1DTEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4MAY W10720823
4AMAY W10380661
5CELEMENT (CR), WARM ZONE
5AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5ELEMENT, SURFACE (3000/1900W (LF))
5BELEMENT (2500W) (RIGHT FRONT)
6BRACKET, COOKTOP (LEFT)
6ABRACKET, COOKTOP (RIGHT)
7SCREW
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
