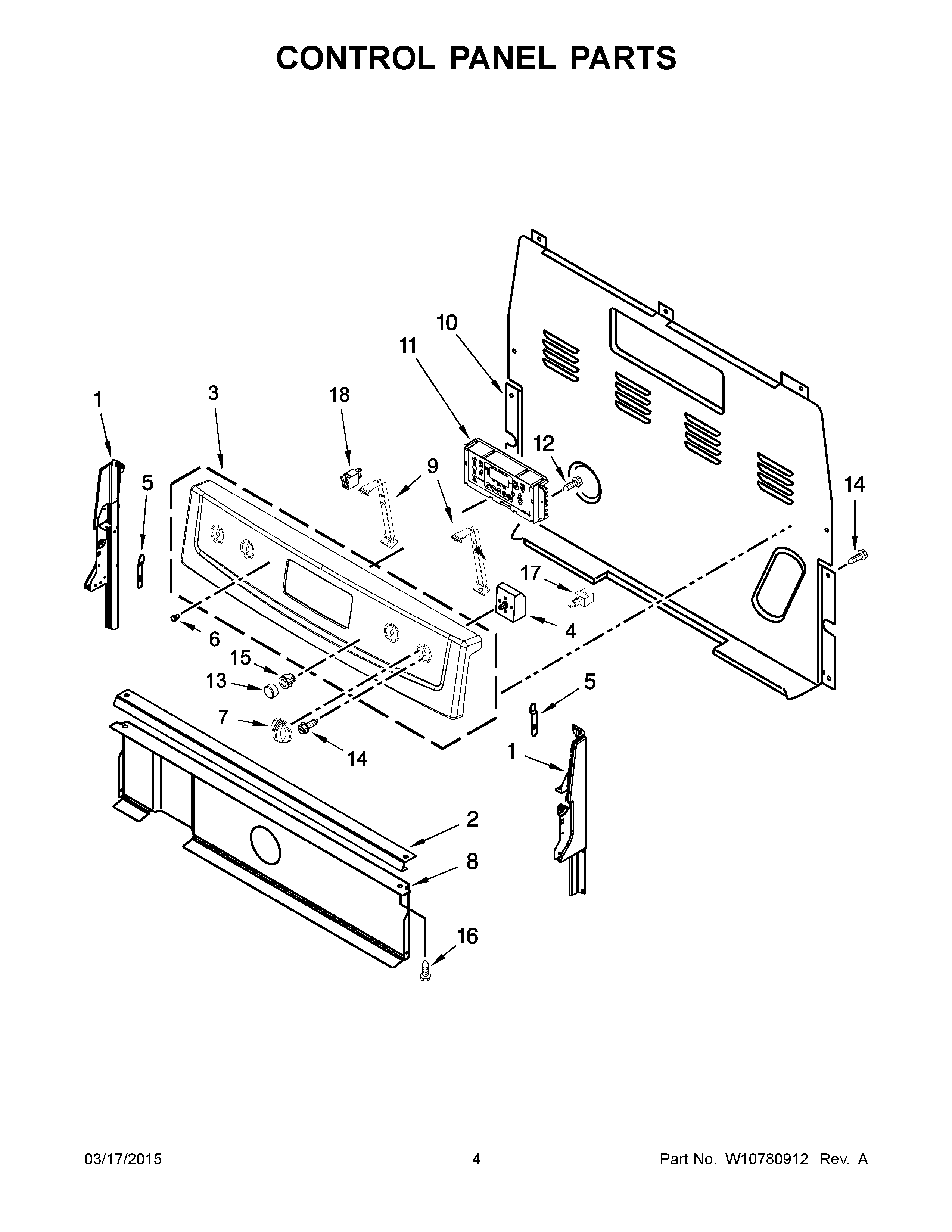

4KMER7685ES0 03 – CONTROL PANEL PARTS

4KMER7685ES0 03 – CONTROL PANEL PARTS

Written by

in

4KMER7685ES0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CENDCAP (BLACK (RIGHT))
1BENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1AENDCAP (WHITE (RIGHT))
2BRACKET, CONSOLE MOUNTING
3AMAY W10772077
3MAY W10772078
4SWITCH, INFINITE (ORANGE) (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4BSWITCH, INFINITE (DUAL) (LEFT FRONT)
5CLIP, SPRING
6MAY 3196068
7AMAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9BRACKET, CONTROL
10COVER, UPPER REAR
11MAY W10734600
11AMAY W10734599
12SCREW
13MAY 9757492
13ABUTTON, KEEP WARM (BLACK)
14SCREW
15AMAY W10217758
15BEZEL, KEEP WARM (WHITE)
16SCREW
17SWITCH, WARM CONSOLE MOUNTING
18MAY 8523265
