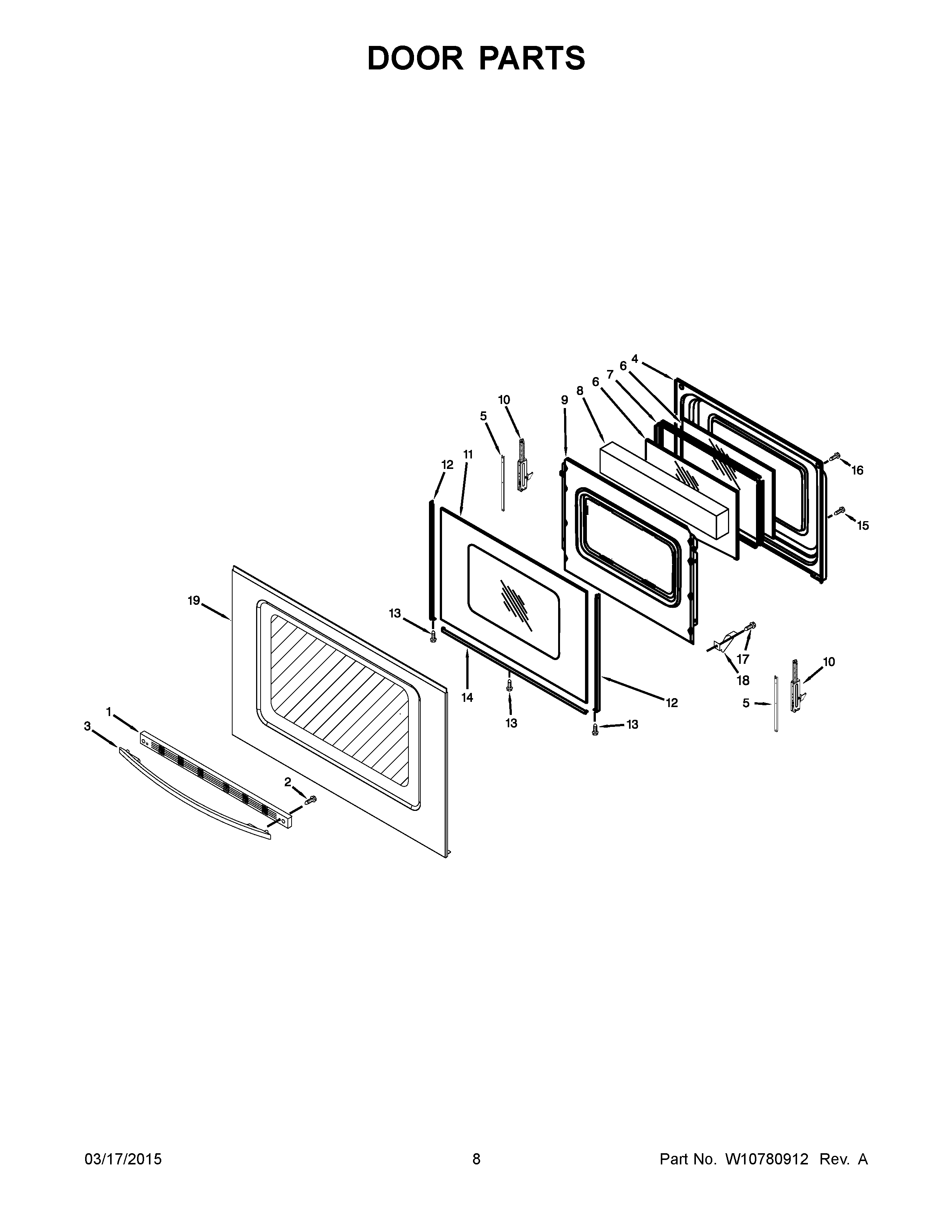

4KMER7685ES0 05 – DOOR PARTS

4KMER7685ES0 05 – DOOR PARTS

Written by

in

4KMER7685ES0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1ATRIM, TOP (BLACK)
2SCREW
3AMAY W10323584
3MAY W10323581
4LINER, DOOR
5STRAP, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10AHINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (WHITE)
12CTRIM, SIDE (BLACK, RIGHT HAND)
12BTRIM, SIDE (BLACK, LEFT HAND)
12ATRIM, SIDE (WHITE (RIGHT))
12TRIM, SIDE (WHITE (LEFT))
13MAY 3196160
14TRIM, LOWER (WHITE)
14ATRIM, LOWER (BLACK)
15SCREW
16MAY W10031780
17SCREW
18CLIP, PANEL
19GLASS, OUTER (STAINLESS)
