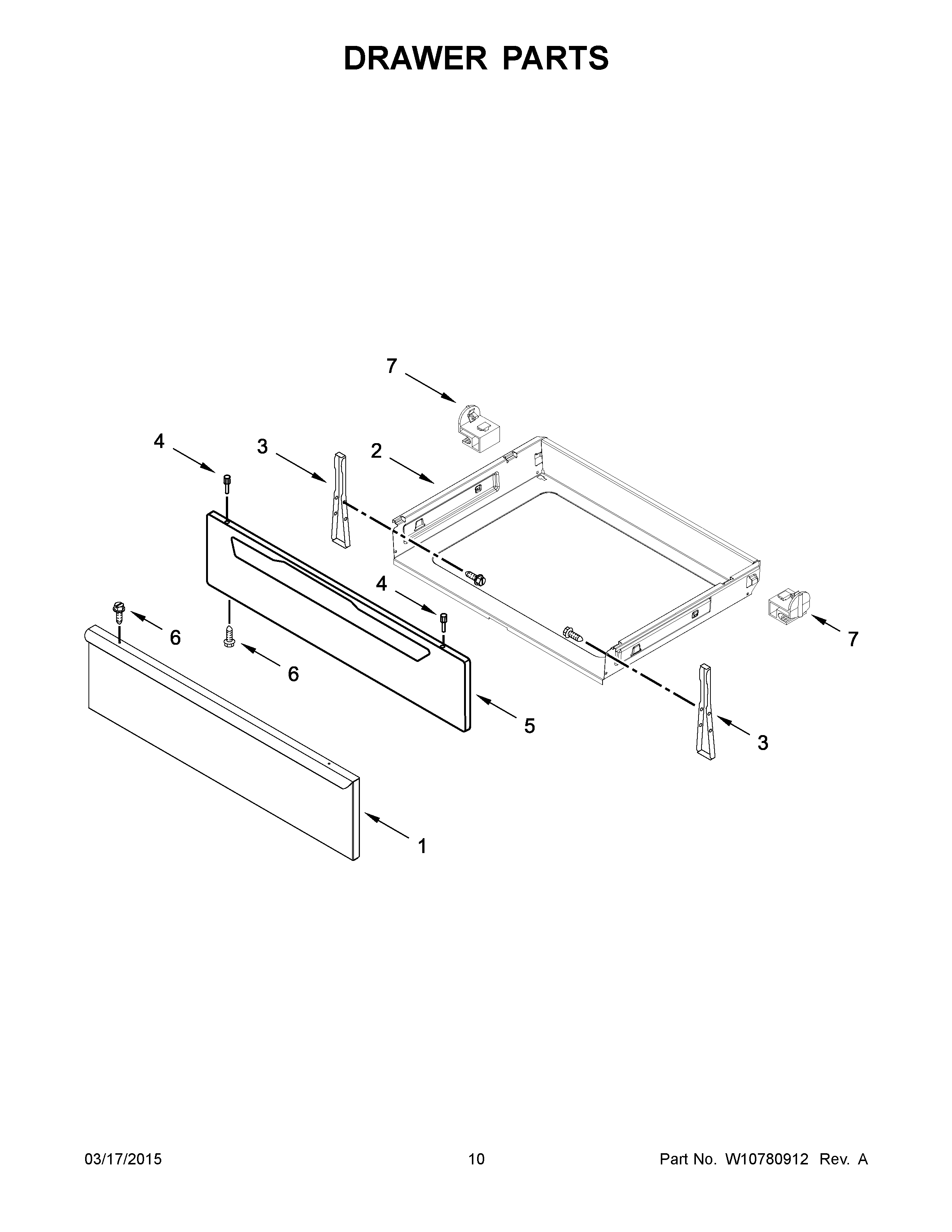

4KMER7685ES0 06 – DRAWER PARTS

Written by

Products

Position	Product
1	PANEL, DRAWER FRONT (STAINLESS)
2	MAY W10663433
3	BRACKET, MOUNTING DRAWER
4	RIVET, PUSH (WHITE)
4A	RIVET, PUSH (BLACK)
5	PANEL, DRAWER FRONT (WHITE)
6	SCREW
7	GLIDE, REAR DRAWER
