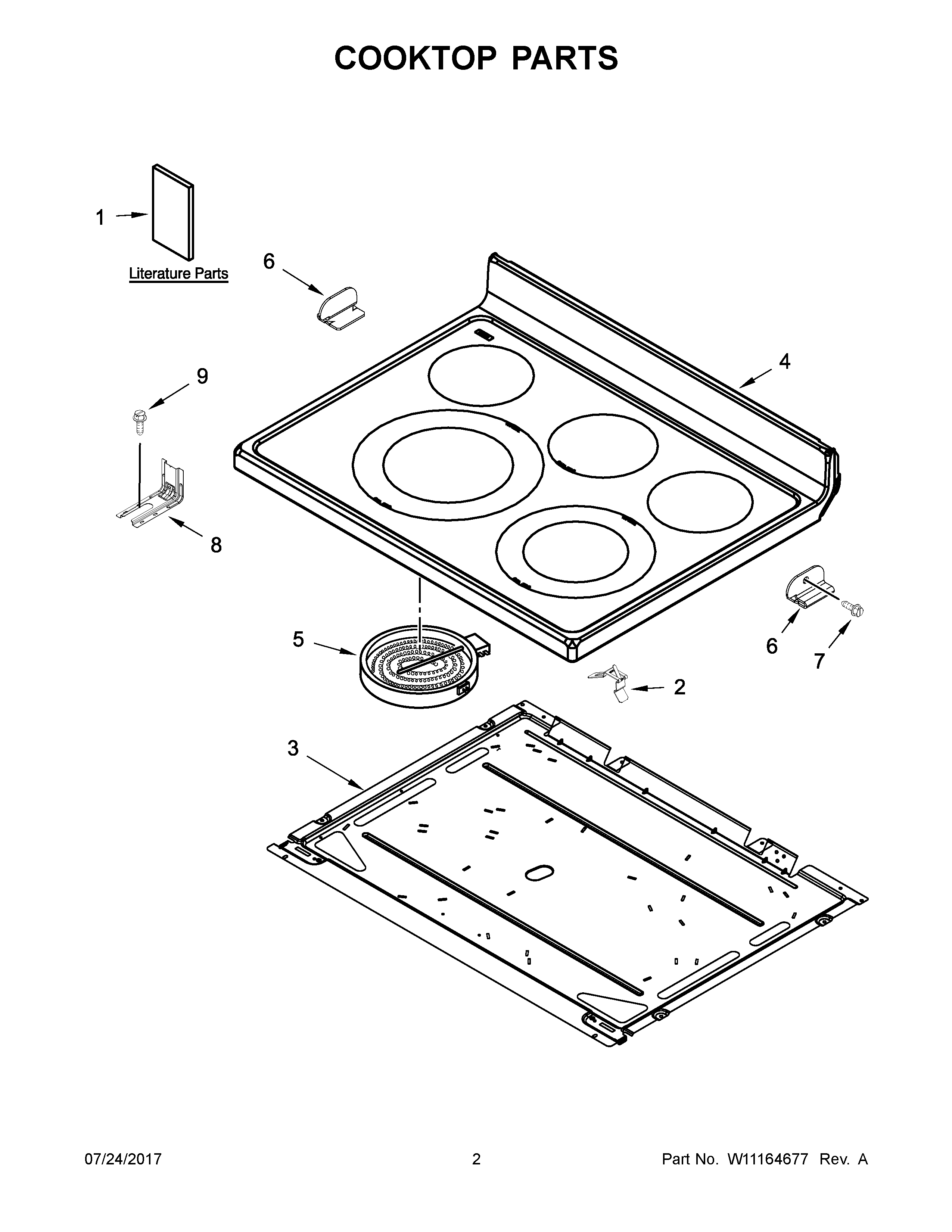

4KMER7685ES1 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10261085
NIHARNESS, HIDDEN BAKE
NIWIRING HARNESS PARTS, HARNESS, WIRE COOKTOP LEFT
NIMAY W10084660
NICLIP, WIRE
NIHARNESS, WIRE (CERAN)
NILINER (NOT A SERVICEABLE PART)
NIMAY W10744973
1DMAY W10403811
1CMAY W10720111
1MAY W10771750
1AMAY W10771751
1BTECH SHEET (ENGLISH)
1FTEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
1GTIPS, SAFE COOKING (ENGLISH)
1ETemplate, Anti-Tip (English/French)
2SPRING, ELEMENT
3PAN, RADIANT ELEMENT
4AMAY W10380661
4MAY W10720823
5AELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
5ELEMENT (3000W) (LEFT FRONT)
5CELEMENT, WARM ZONE (CENTER REAR)
5BELEMENT (2500W) (RIGHT FRONT)
6BRACKET, COOKTOP (LEFT)
6ABRACKET, COOKTOP (RIGHT)
7SCREW
8BRACKET, ANTI-TIP
9SCREW, ANTI-TIP KIT
