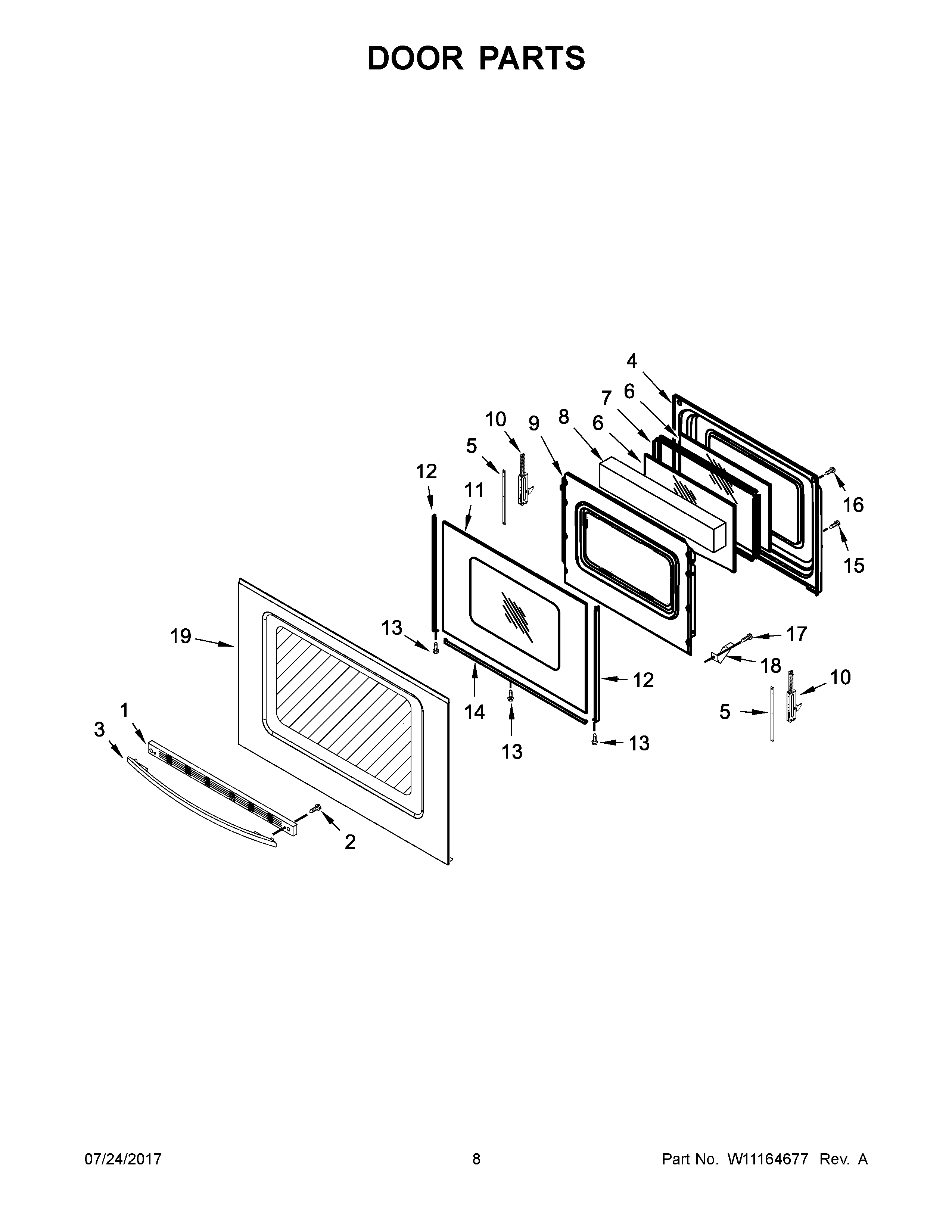

4KMER7685ES1 05 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3	HANDLE, DOOR (WHITE)
3A	HANDLE, DOOR (STAINLESS)
4	LINER, DOOR
5	STRAP, DOOR
6	GLASS, INNER
7	FRAME, GLASS
8	INSULATION, DOOR STRIP
9	RETAINER, INSULATION
10	HINGE, DOOR (PASSIVE)
10A	HINGE, ACTIVE (WITH SPRING)
11	Glass, Outer (White)
12C	TRIM, SIDE (BLACK (RIGHT))
12B	TRIM, SIDE (BLACK (LEFT))
12	TRIM, SIDE (WHITE (LEFT))
12A	TRIM, SIDE (WHITE (RIGHT))
13	SCREW
14	TRIM, LOWER (WHITE)
15	SCREW
16	MAY W10031780
17	SCREW
18	CLIP, PANEL
19	GLASS, OUTER (STAINLESS)
