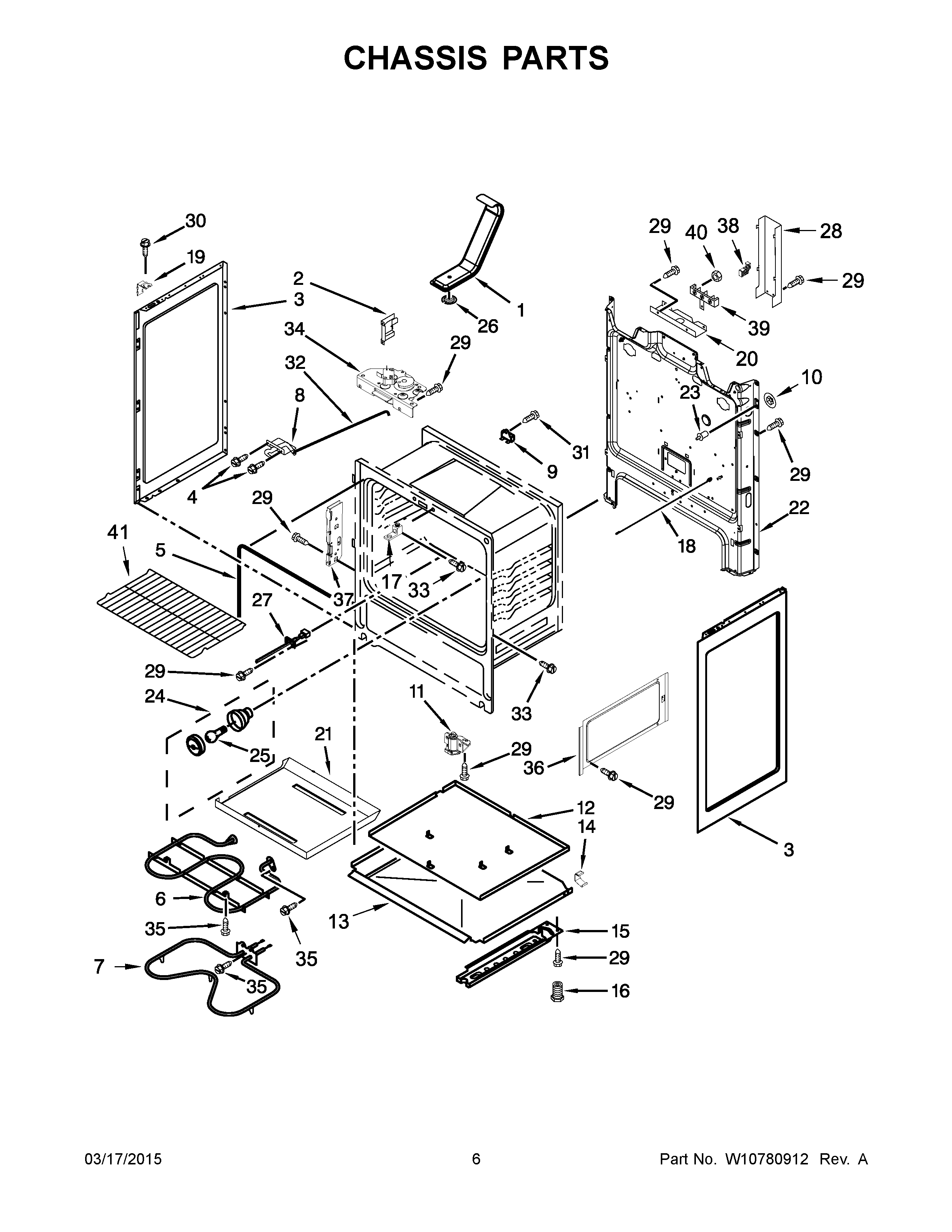

4KMER7685EW0 04 – CHASSIS PARTSadmin2025-04-26T09:17:21+00:004KMER7685EW0 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10208653 |
| NI | INSULATION, FLUE |
| NI | CARD, INSULATOR |
| NI | MAY W10465685 |
| NI | INSULATION, BACK |
| 1 | TUBE, VENT |
| 2 | CLIP, OVEN SUPPORT |
| 3 | PANEL, SIDE (WHITE) |
| 3A | PANEL, SIDE (BLACK) |
| 4 | SCREW |
| 5 | SEAL, DOOR |
| 6 | ELEMENT, BAKE |
| 7 | ELEMENT, BROIL |
| 8 | ASSEMBLY, DOOR LATCH (FRONT) |
| 9 | FUSE, THERMAL |
| 10 | MAY 3400968 |
| 11 | ASSEMBLY, FRONT FOOT |
| 12 | SHIELD, HEAT |
| 13 | TRAY, INSULATION |
| 14 | CLIP, PANEL |
| 15A | ASSEMBLY, BASE RAIL (RIGHT) |
| 15 | ASSEMBLY, BASE RAIL (LEFT) |
| 16 | FOOT, LEVELING |
| 17 | GLIDE, DRAWER FRONT |
| 18 | ROD, DOOR SWITCH |
| 19 | CLIP, SPRING STEEL |
| 20 | BRACKET, SERVICE |
| 21 | TRAY, HIDDEN BAKE |
| 22 | BACK, MAIN |
| 23 | SWITCH, DOOR |
| 24 | ASSEMBLY, LIGHT |
| 25 | BULB, OVEN LIGHT |
| 26 | MAY 9761301 |
| 27 | SENSOR, OVEN |
| 28 | COVER, TERMINAL BLOCK |
| 29 | SCREW |
| 30 | SCREW |
| 31 | SCREW |
| 32 | ROD, LATCH |
| 33 | SCREW |
| 34 | ASSEMBLY, DOOR LATCH (REAR) |
| 35 | SCREW |
| 36 | MAY W10450380 |
| 37 | RECEIVER, HINGE |
| 38 | KIT, BARE WIRE ADAPTER BLOCK |
| 39 | BLOCK, TERMINAL |
| 40 | NUT |
| 41 | RACK, OVEN |
