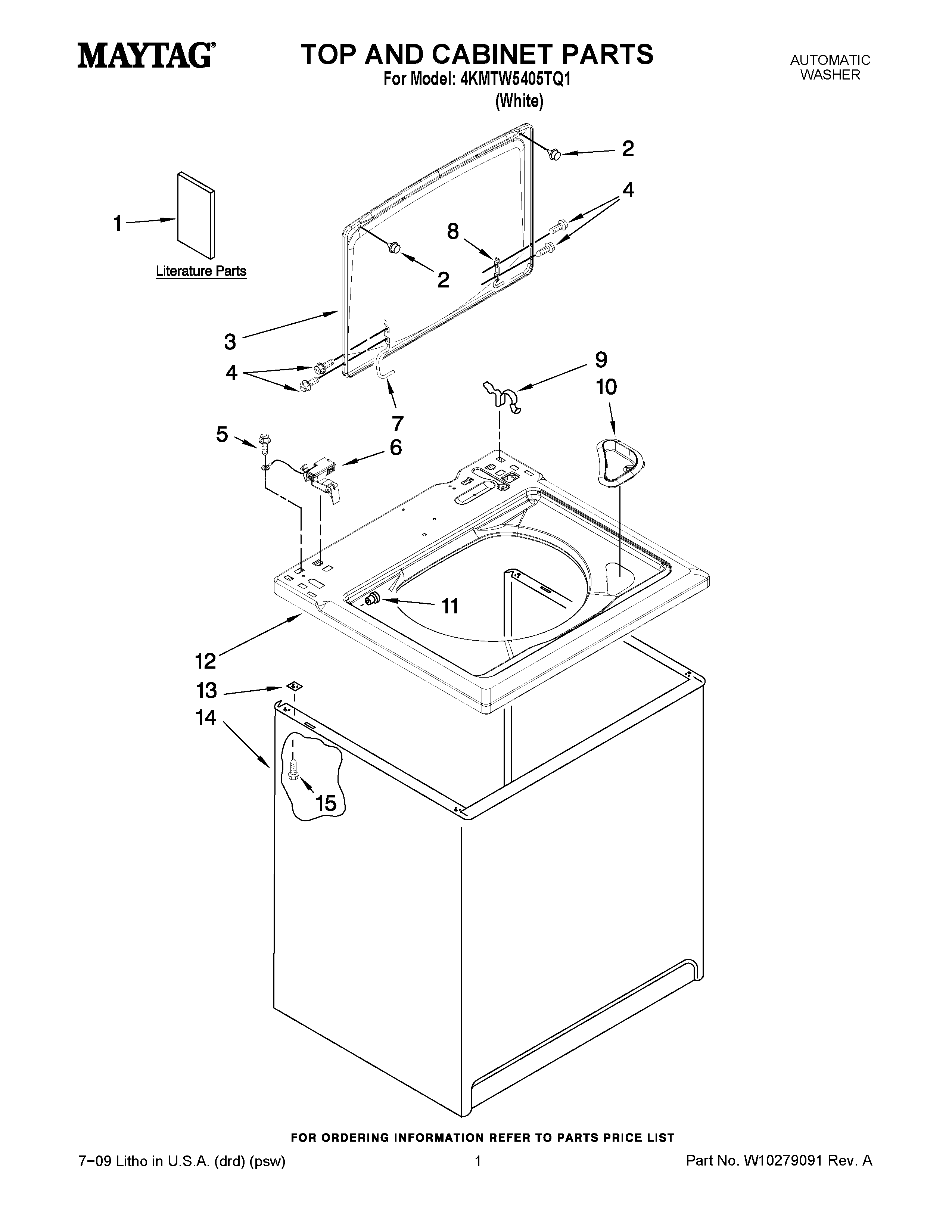

4KMTW5405TQ1 01 – TOP AND CABINET PARTS

4KMTW5405TQ1 01 – TOP AND CABINET PARTS

Written by

in

4KMTW5405TQ1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10117896
1MAY W10117897
1MAY W10117891
1MAY W10117890
1MAY W10117055
2MAY 9724509
3MAY W10093782
4SCREW, LID HINGE
5SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6MAY 8318084
7MAY W10225136
8HINGE, LID
9MAY 62780
10MAY W10192089
11MAY 8319539
12MAY W10194868
13MAY 62750
14Cabinet
15SCREW
